Engine Room Component

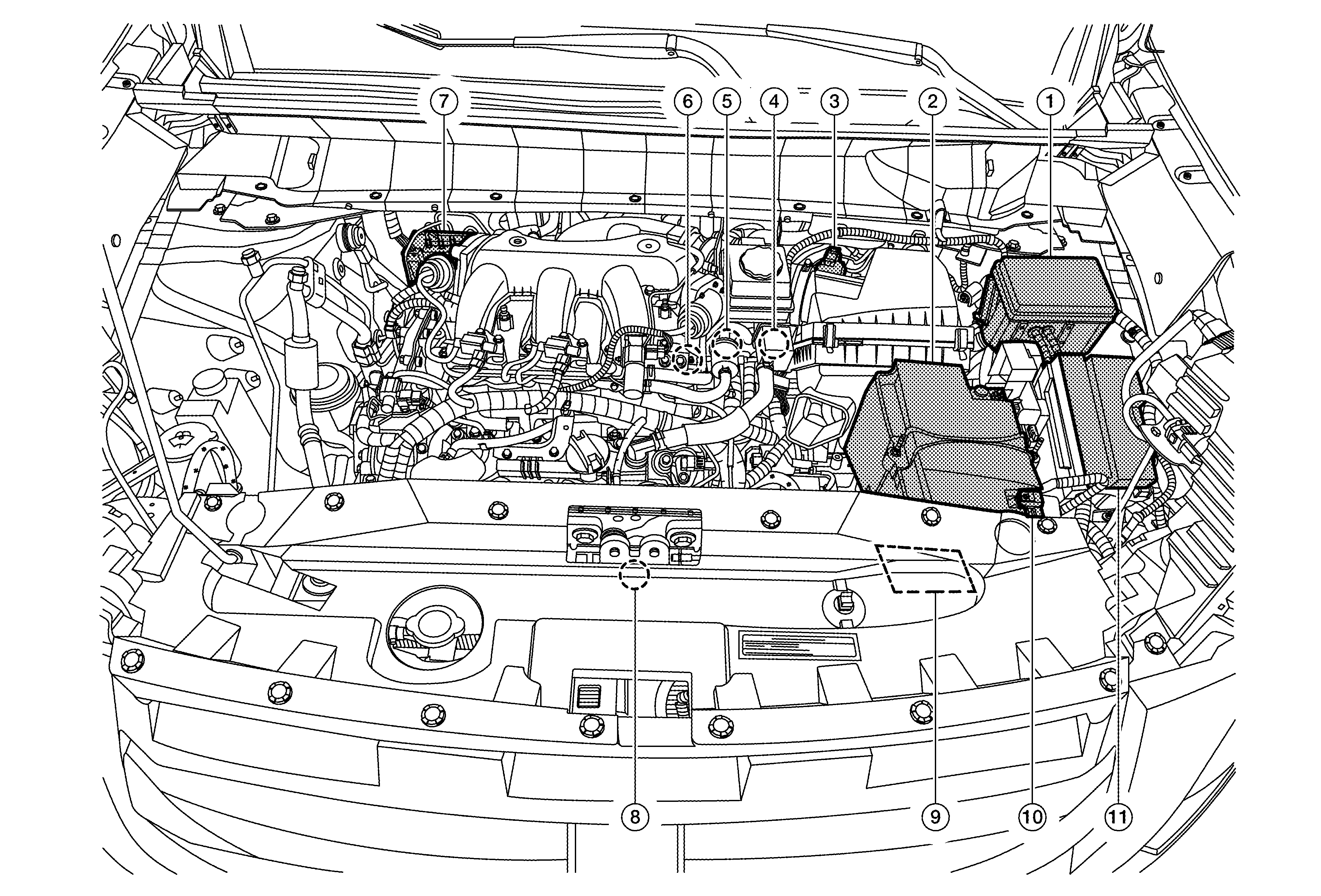

GNSDB18647Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

IPDM E/R

SYMBOL

12 V Battery

SYMBOL

Mass air flow sensor (with intake air temperature sensor)

SYMBOL

Brake booster pressure sensor

SYMBOL

Engine coolant temperature sensor

SYMBOL

Crankshaft position sensor 2

SYMBOL

ABS actuator and electric unit (control unit)

SYMBOL

Hood switch

SYMBOL

ECM

SYMBOL

Battery current sensor

SYMBOL

Relay box
