System Control Condition Display

Stop/start Indicator Lamp Status

System condition	Condition	Stop/start indicator lamp	Warning chime
Operate	Normal	Illuminate	--
Operate	Hood open ^*	High speed blinking	Sound

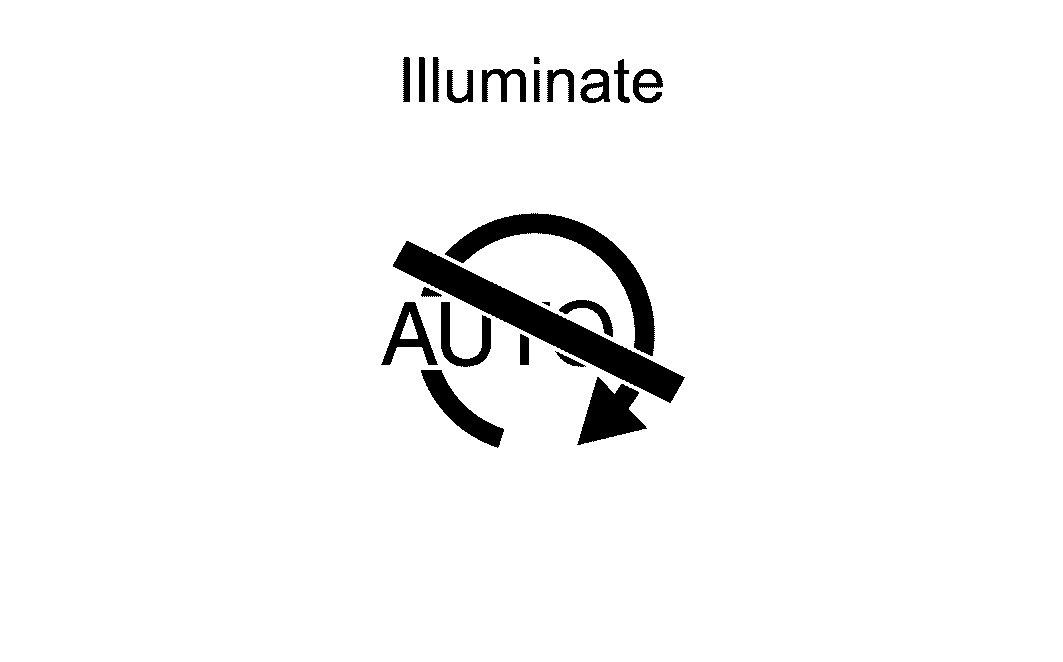

Normal operation: Stop/Start system inhibited state	System conditions excluded failure are not satisfied. (Battery state of charge, A/C steering operation, driver's seat belt is unbuckled etc)	Illuminate Courtesy of NISSAN NORTH AMERICA, INC.	--
Fail-Safe	Starter motor operation counter: too much	Slow speed blinking	--
Fail-Safe	Malfunction of stop/start system	Slow speed blinking	--

*: Engine is stalled after alert for 1.5 seconds.

Stop/start Indicator Status (Information Display)

System condition		Vehicle condition	Warning chime	Stop/start indicator

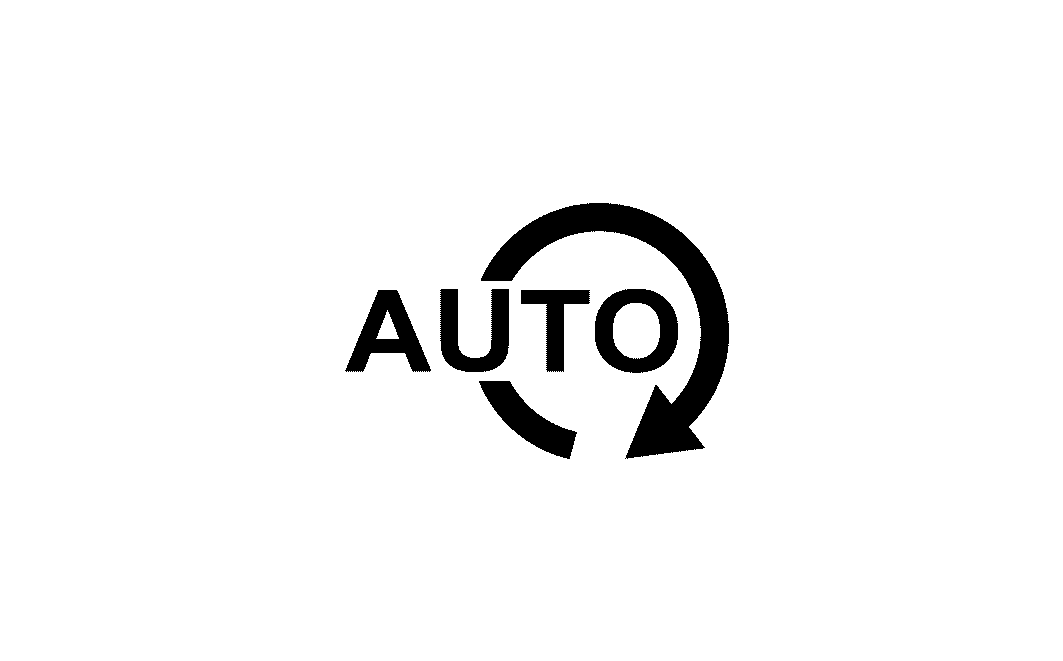

Operate		Normal	--	Courtesy of NISSAN NORTH AMERICA, INC.

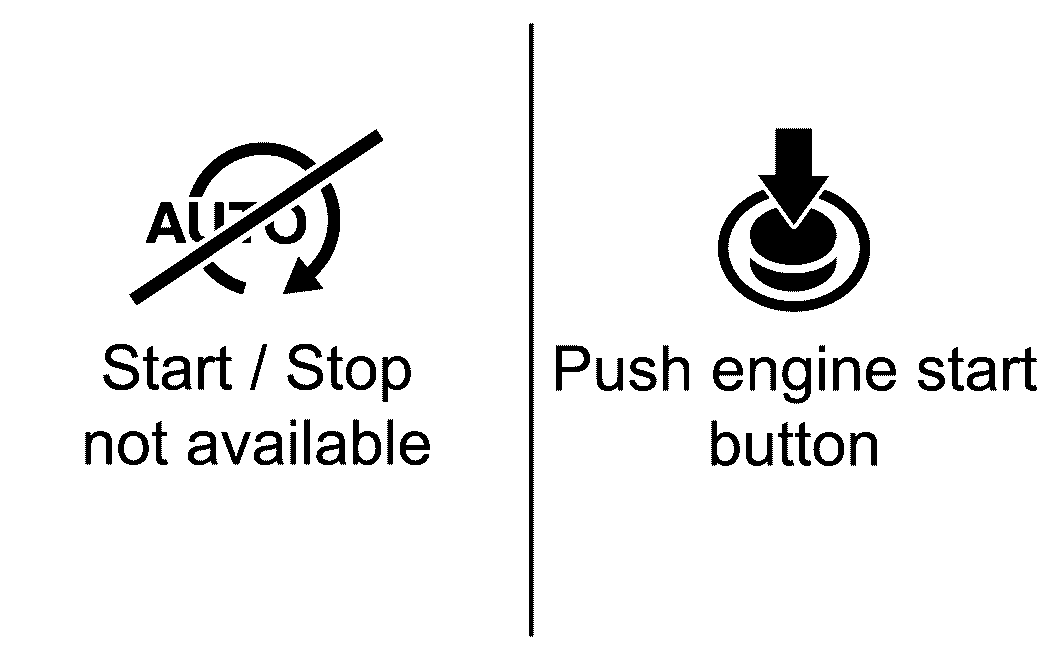

The engine does not restart	With intelligent key system	Hood open ^*1	Sound	Courtesy of NISSAN NORTH AMERICA, INC.
The stop/start system is OFF		When the stop/start OFF switch is ON. ^*2	--	Courtesy of NISSAN NORTH AMERICA, INC.

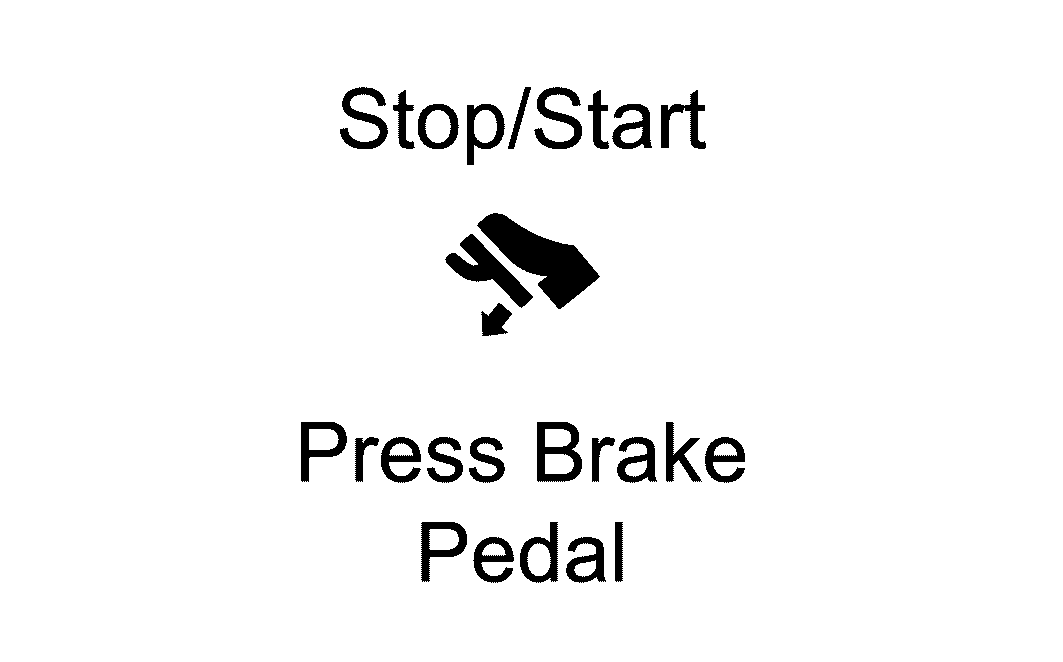

		When the brake pedal is not enough pressure.	--	Courtesy of NISSAN NORTH AMERICA, INC.

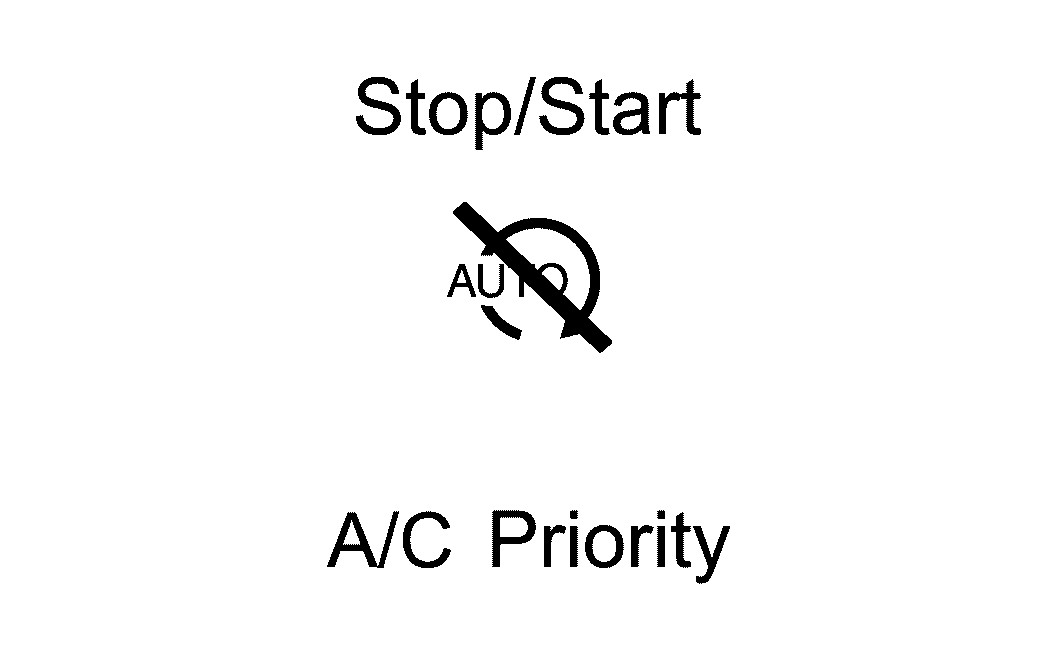

		When A/C is prioritized.	--	Courtesy of NISSAN NORTH AMERICA, INC.

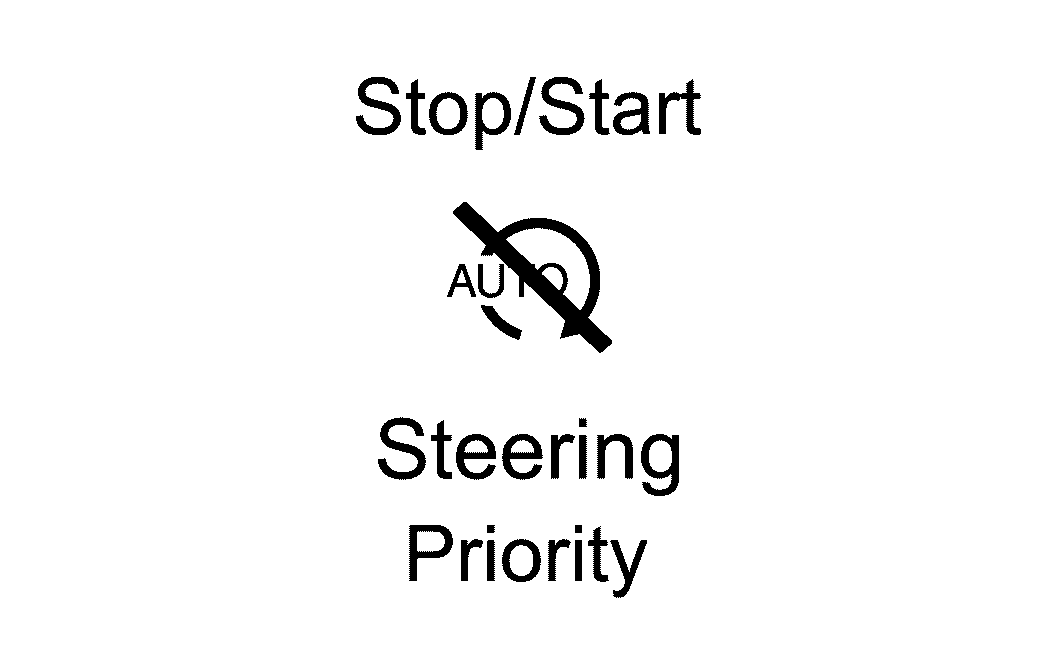

		When the steering wheel is being operated.	--	Courtesy of NISSAN NORTH AMERICA, INC.
		Others	--	--

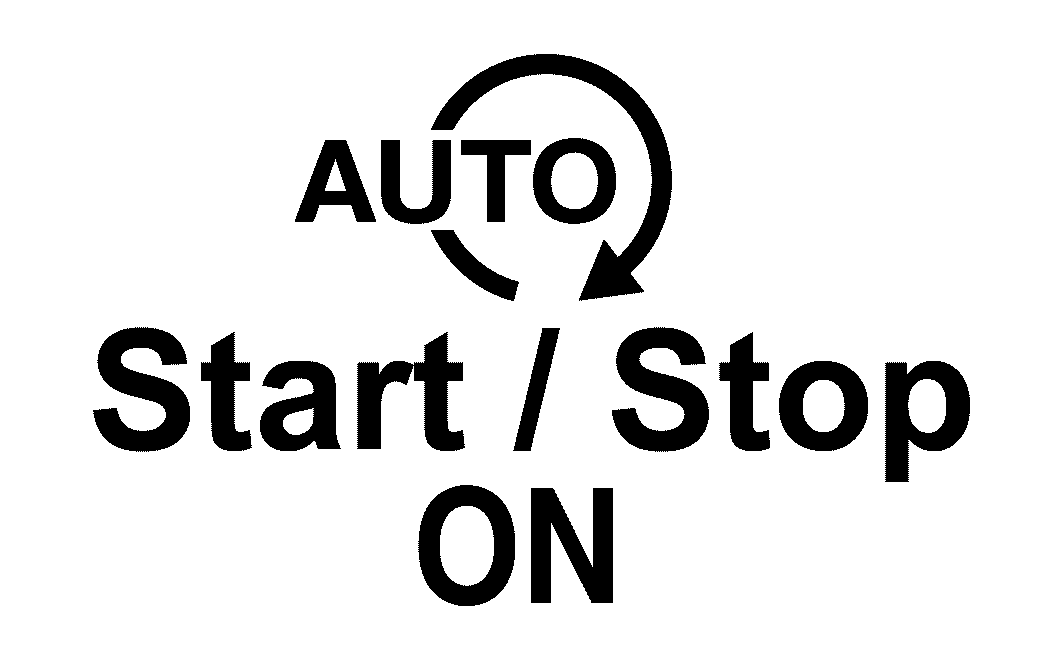

The stop/start system is ON.		When the stop/start OFF switch is OFF. ^*3	--	Courtesy of NISSAN NORTH AMERICA, INC.

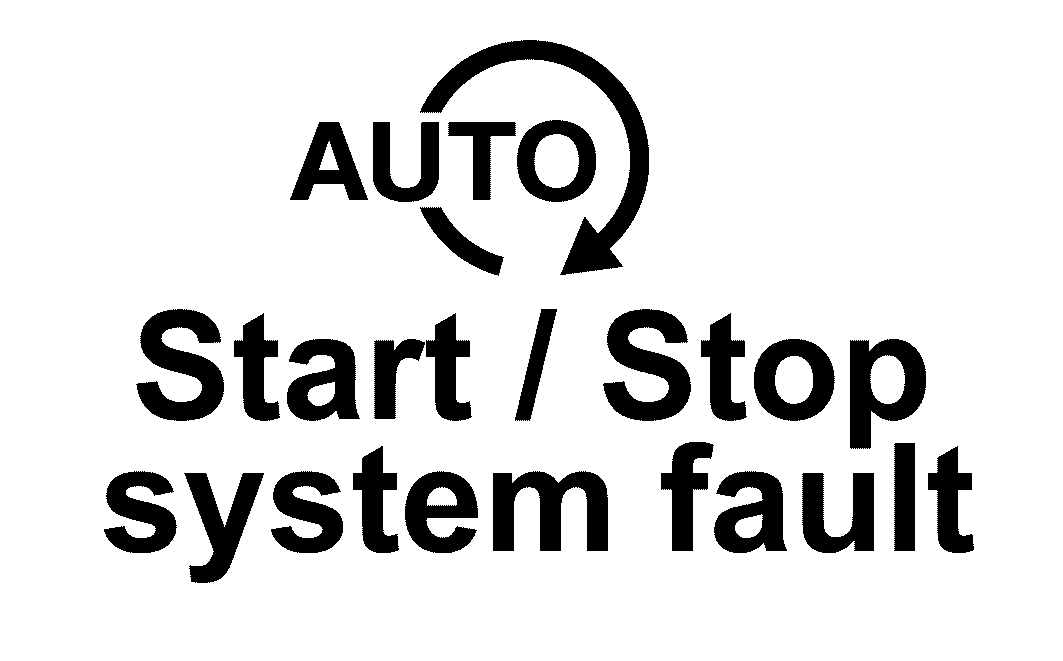

Fail-Safe		Starter motor operation counter: too much	--	Courtesy of NISSAN NORTH AMERICA, INC.
Fail-Safe		Malfunction of stop/start system	--	Courtesy of NISSAN NORTH AMERICA, INC.

*1: Engine is stalled after alert for 1.5 seconds.

*2: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from OFF to ON.

*3: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from ON to OFF.
