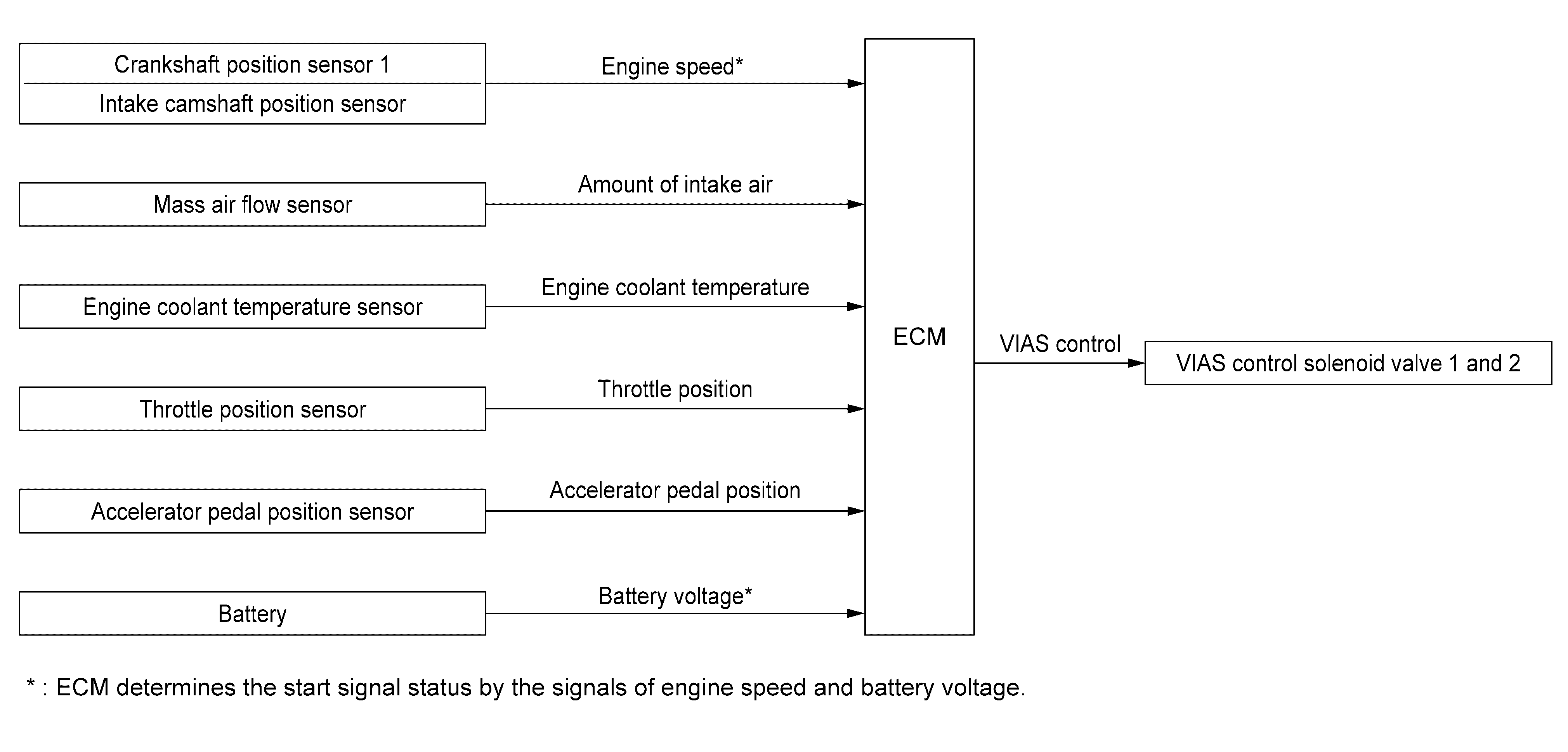

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor 1 |
|
|
Intake camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Engine coolant temperature sensor |
|
|
Throttle position sensor |
|
|
Accelerator pedal position sensor |
|
|
Battery |
ECM receives the battery voltage signal. |
|
ECM |
|
|
VIAS control solenoid valve 1 and 2 |
