Physical Values
- Specification data are reference values and are measured between each terminal and ground.
- Pulse signal is measured by CONSULT.
|
Terminal No. |
Description |
Condition |
Value (Approx.) |
||
|
+ |
- |
Signal name |
Input/Output |
||
|
1 (Y) |
3 (B) |
Power supply |
-- |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
|
2 (P) |
3 (B) |
Power supply |
-- |
[Ignition switch: ON] |
BATTERY VOLTAGE (11 - 14 V) |
|
3 (B) |
-- |
Ground |
-- |
-- |
-- |
|
82 (Y) |
3 (B) |
Sensor power supply |
-- |
[Ignition switch: ON] |
5 V |
|
83 (L) |
-- |
Electric intake valve timing control motor 2 hall sensor 1 |
Input |
[Engine is running]
|
5 V |
|
84 (L) |
-- |
Electric intake valve timing control motor 2 temperature sensor |
Input |
[Engine is running]
|
1.0 - 2.0 V |
|
90 (R) |
3 (B) |
Electric intake valve timing control motor 2 hall sensor 3 |
Input |
[Engine is running]
|
5 V |
|
91 (G) |
3 (B) |
Electric intake valve timing control motor 2 hall sensor 2 |
Input |
[Engine is running]
|
5 V |
|
92 (W) |
-- |
Sensor ground |
-- |
-- |
-- |
|
95 (W) |
3 (B) |
Ignition switch |
-- |
-- |
-- |
|
97 (B) |
3 (B) |

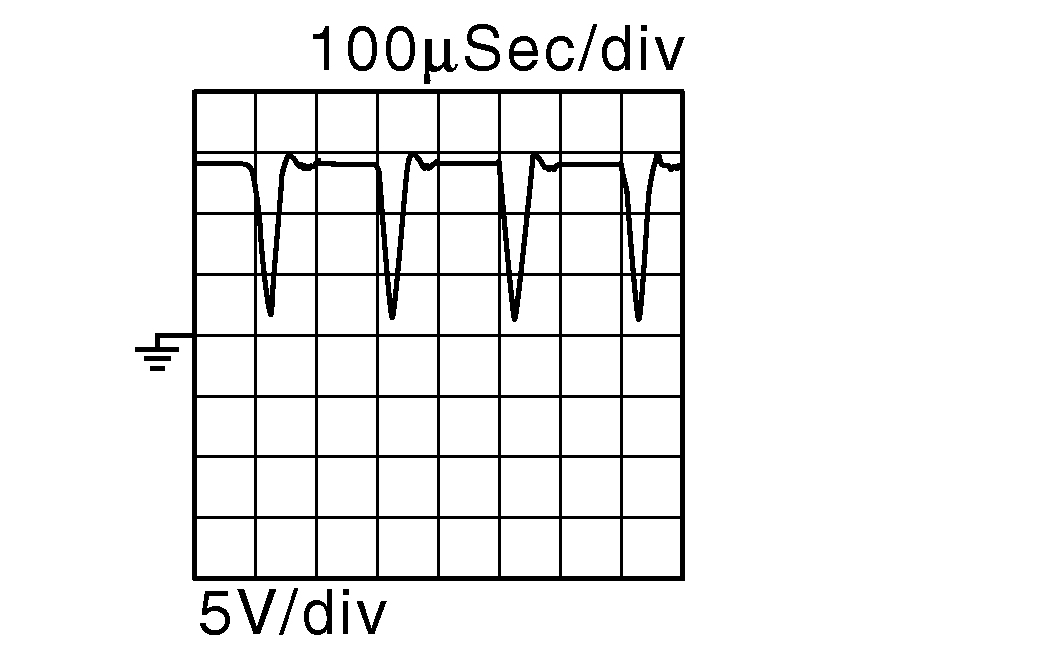

Crankshaft position sensor (electric intake valve timing control signal) |
Input |
[Engine is running]
|
3.1 V |
|
[Engine is running]
|
3.1 V |
||||
|
98 (R) |
3 (B) |
Electric intake valve timing control motor 1 hall sensor 3 |
Input |
[Engine is running]
|
5 V |
|
99 (G) |
3 (B) |
Electric intake valve timing control motor 1 hall sensor 2 |
Input |
[Engine is running]
|
5 V |
|
100 (W) |
-- |
Sensor ground |
-- |
-- |
-- |
|
102 (P) |
-- |
ENGINE communication line-L |
Input/Output |
-- |
-- |
|
104 (W) |
3 (B) |

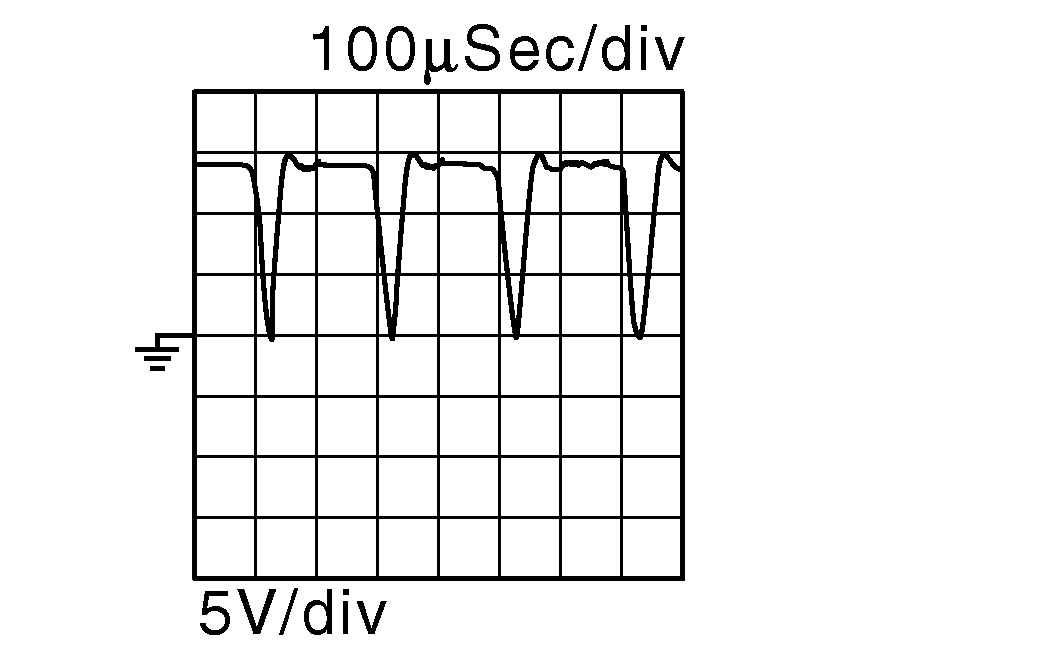

Intake camshaft position sensor (bank 2) (electric intake valve timing control signal) |
Input |
[Engine is running]
|
4.1 V |
|
[Engine is running]
|
4.1 V |
||||
|
106 (Y) |
3 (B) |
Sensor power supply |
-- |
[Ignition switch: ON] |
5 V |
|
107 (L) |
3 (B) |
Electric intake valve timing control motor 1 hall sensor 1 |
Input |
[Engine is running]
|
5 V |
|
108 (L) |
3 (B) |
Electric intake valve timing control motor 1 temperature sensor |
Input |
[Engine is running]
|
1.0 - 2.0 V |
|
110 (GR) |
-- |
Shield |
-- |
-- |
-- |
|
111 (GR) |
3 (B) |
ENGINE communication line-H |
Input/Output |
-- |
-- |
|
113 (R) |
3 (B) |
Intake camshaft position sensor (bank 1) (electric intake valve timing control signal) |
Input |
[Engine is running]
|
3.8 V |
|
[Engine is running]
|
3.8 V |
||||
|
114 (W) |
3 (B) |
Electric intake valve timing control motor 1 phase 3 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
116 (W) |
3 (B) |
Electric intake valve timing control motor 2 phase 3 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
117 (B) |
3 (B) |
Electric intake valve timing control motor 1 phase 2 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
118 (B) |
3 (B) |
Electric intake valve timing control motor 2 phase 2 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
119 (R) |
3 (B) |
Electric intake valve timing control motor 1 phase 1 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
|
121 (R) |
3 (B) |
Electric intake valve timing control motor 2 phase 1 |
Input/Output |
[Engine is running]
|
BATTERY VOLTAGE (11 - 14 V) |
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
