Removal and Installation: Notes

  1. Remove shift selector finisher. Refer to Exploded View .

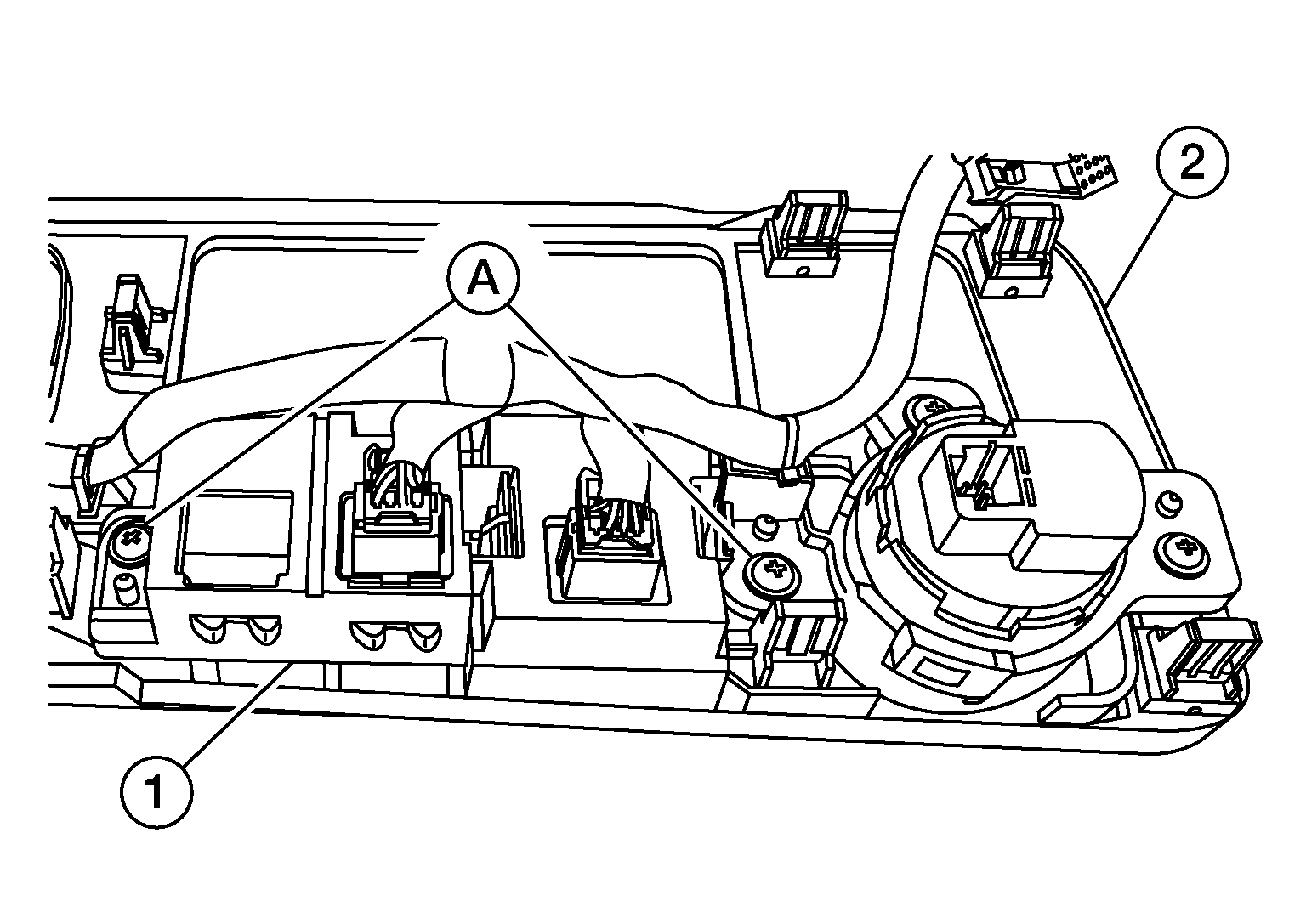

  2. Remove the screws (A) and remove switch carrier (1) from shift selector finisher (2).
    GNSDB18395Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect harness connector from the stop/start off switch.

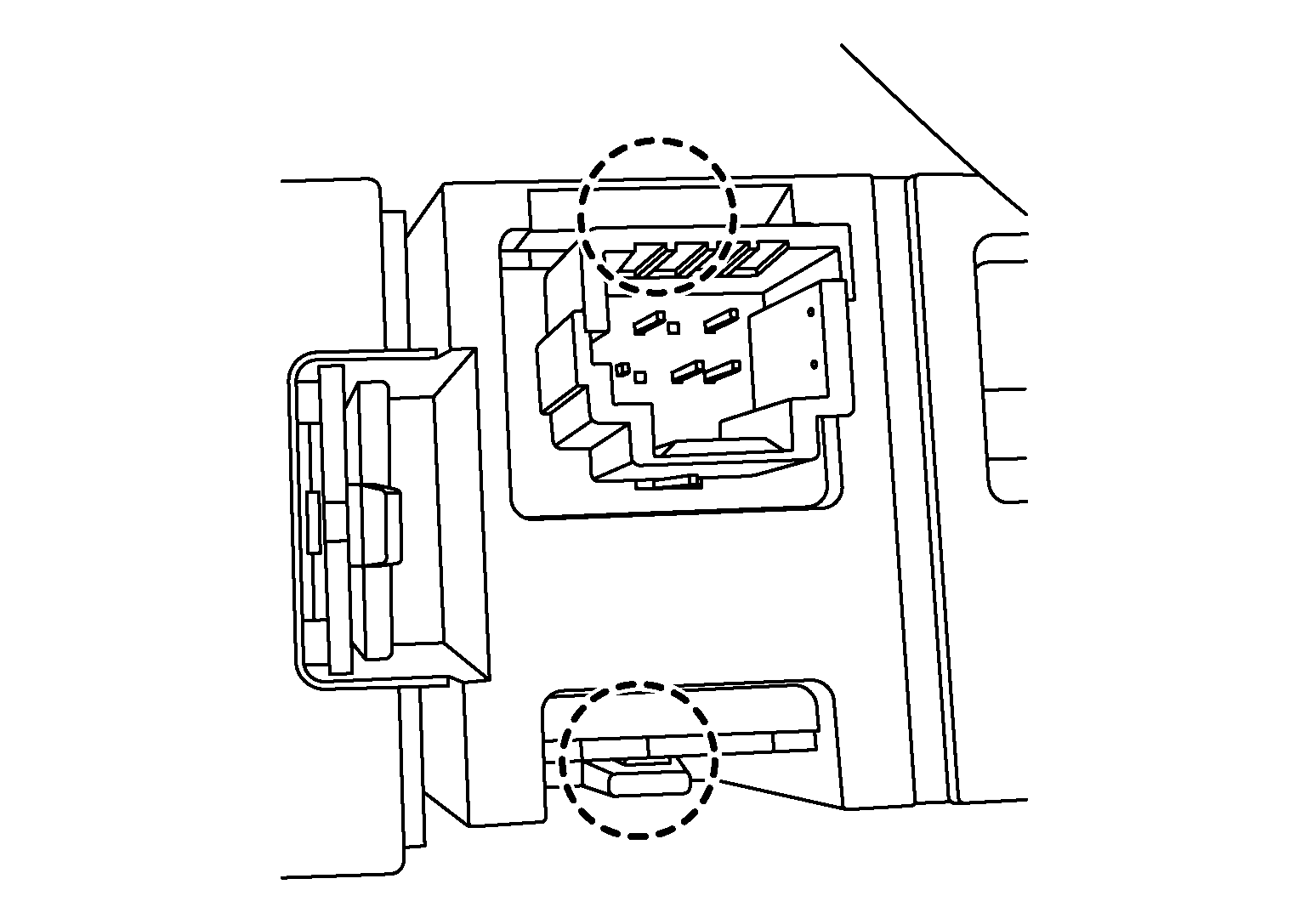

  4. Using a suitable tool, release pawls and remove stop/start off switch.
    GNSDB19369Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
