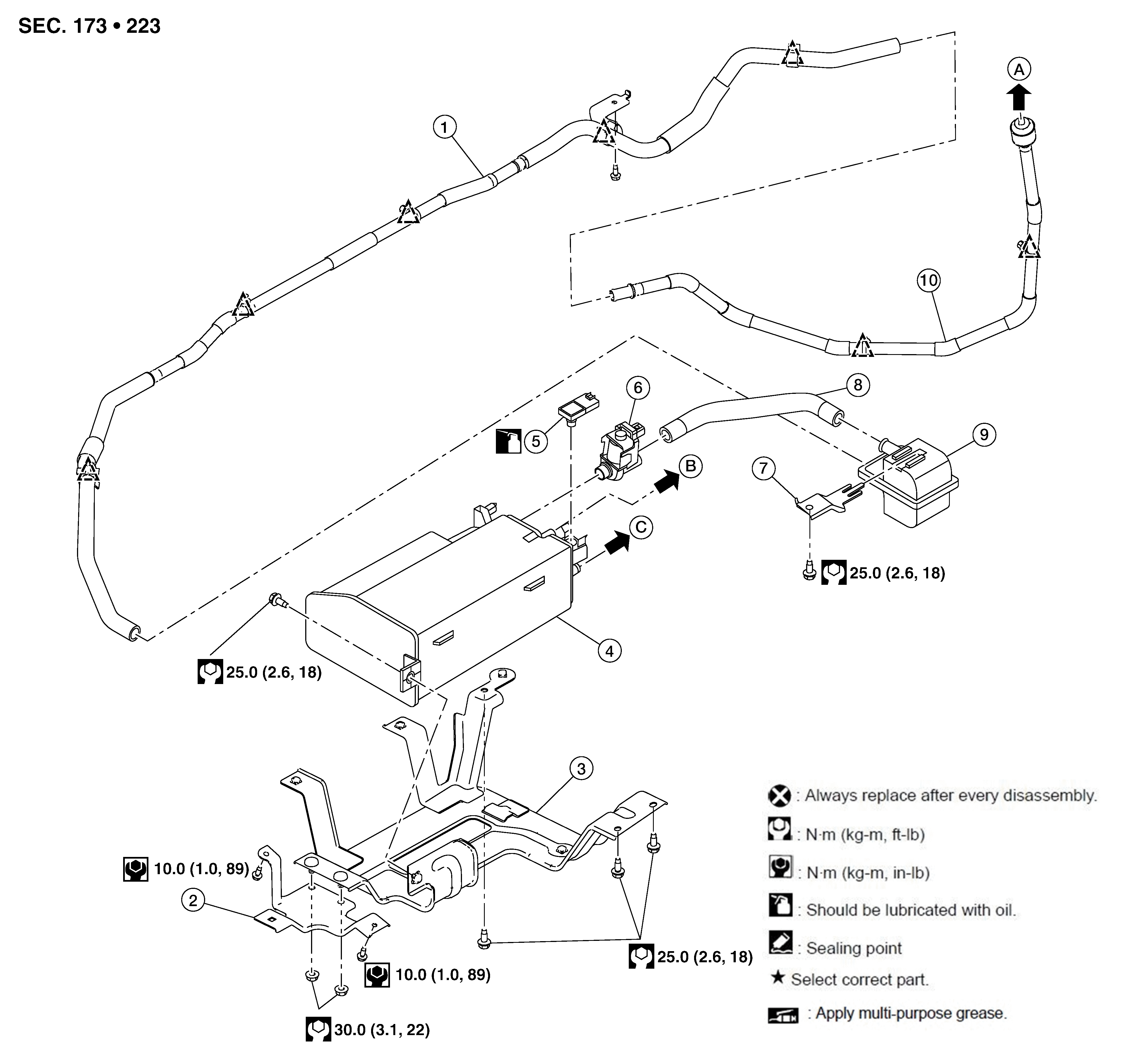

Exploded View
|
1. |
EVAP canister filter hose |
2. |
EVAP canister bracket A |
3. |
EVAP canister bracket B |
|
4. |
EVAP canister |
5. |
EVAP control system pressure sensor |
6. |
EVAP canister vent control valve |
|
7. |
EVAP canister vent control valve bracket |
8. |
EVAP canister vent control valve hose |
9. |
EVAP canister filter |
|
10. |
EVAP canister filter hose |
A. |
To fuel filler tube. Refer to Exploded View . |
B. |
To EVAP vent tube. Refer to Exploded View . |
|
C. |
To EVAP vacuum delay valve. Refer to Exploded View . |
Clip |
