Warning Lamp Flash Code Chart
How to read flash codes
- Put the vehicle in Diagnosis Mode. Refer to Trouble Diagnosis without CONSULT .
- All codes are proceeded by a seven second "holding" flash.
- Identify how many primary flashes are displayed as well as the length of each primary flash.
- Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
- Count the short secondary flashes that follow the primary flashes.
- Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.
Refer to the illustrations below for an example of each flashing pattern.
Front subsystem
|
Flashes (Primary) |
Flash Length (seconds) |
Flashes (Secondary) |
Malfunctioning Component or Circuit |
Reference |
|
2 |
1.5 |
1 |

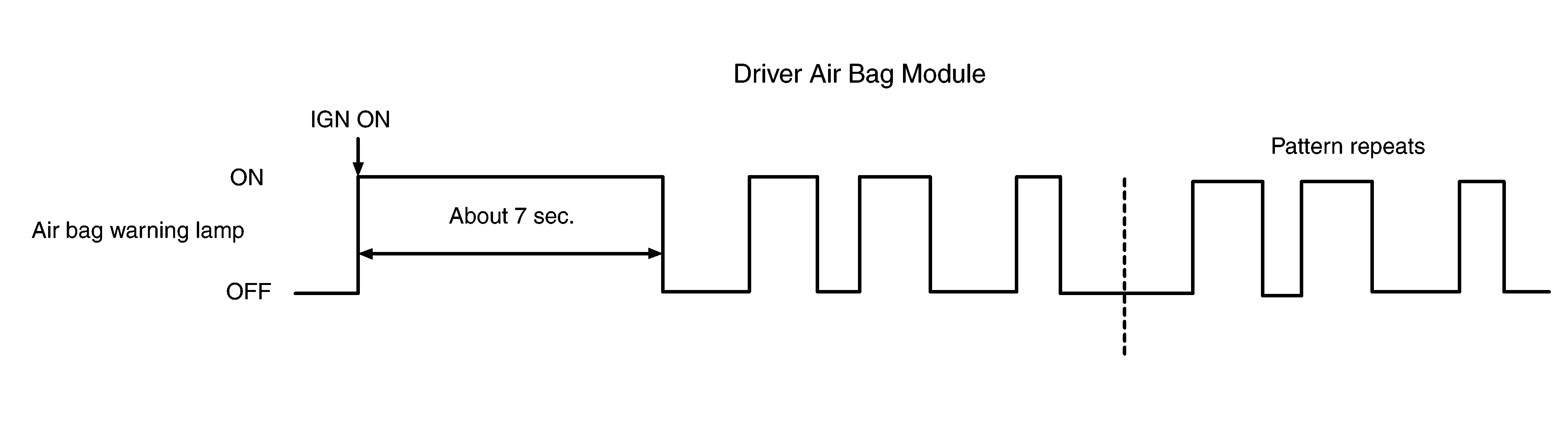

Driver air bag module |
DTC Diagnosis Procedure (B0001) DTC Diagnosis Procedure (B0002) |
|
2 |
Front passenger air bag module |
DTC Diagnosis Procedure (B0010) DTC Diagnosis Procedure (B0011) |
||
|
3 |
Front LH seat belt pre-tensioner (shoulder) |
|||
|
4 |
Front RH seat belt pre-tensioner (shoulder) |
|||
|
5 |
Front LH seat belt pre-tensioner (lap) |
|||
|
6 |
Front RH seat belt pre-tensioner (lap) |
Side subsystem
|
Flashes (Primary) |
Flash Length (seconds) |
Flashes (Secondary) |
Malfunctioning Component or Circuit |
Reference |
|
3 |
1.5 |
1 |

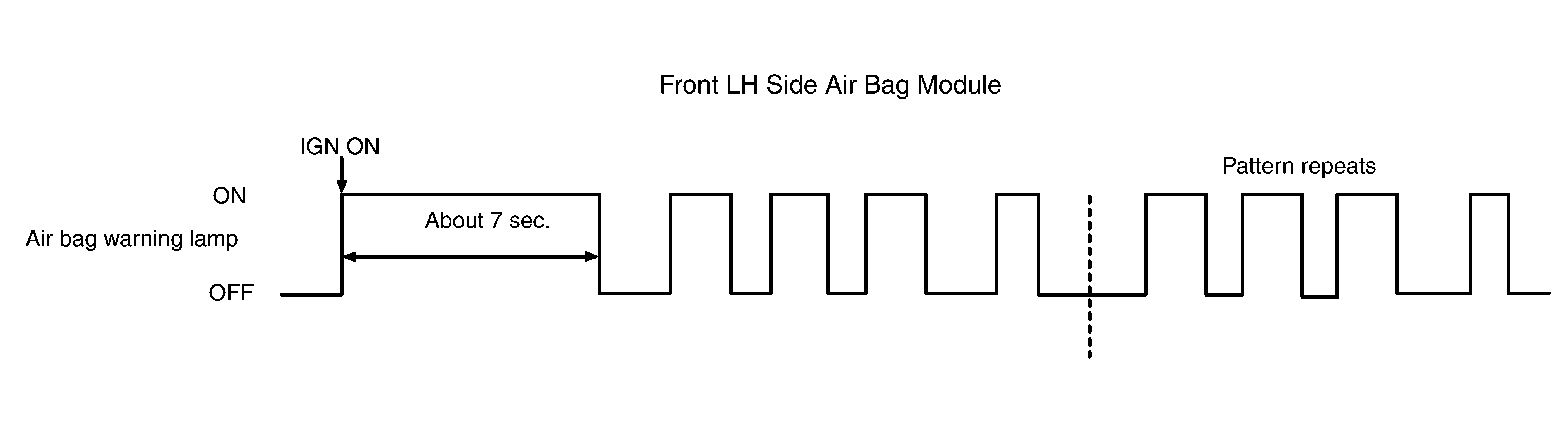

Front side air bag module LH |
|
|
2 |
Front side air bag module RH |
|||
|
3 |
Side curtain air bag module LH |
|||
|
4 |
Side curtain air bag module RH |
Air bag subsystem
|
Flashes (Primary) |
Flash Length (seconds) |
Flashes (Secondary) |
Malfunctioning Component or Circuit |
Reference |
|
1 |
3 |
1 |
Collision detection |
|
|
2 |

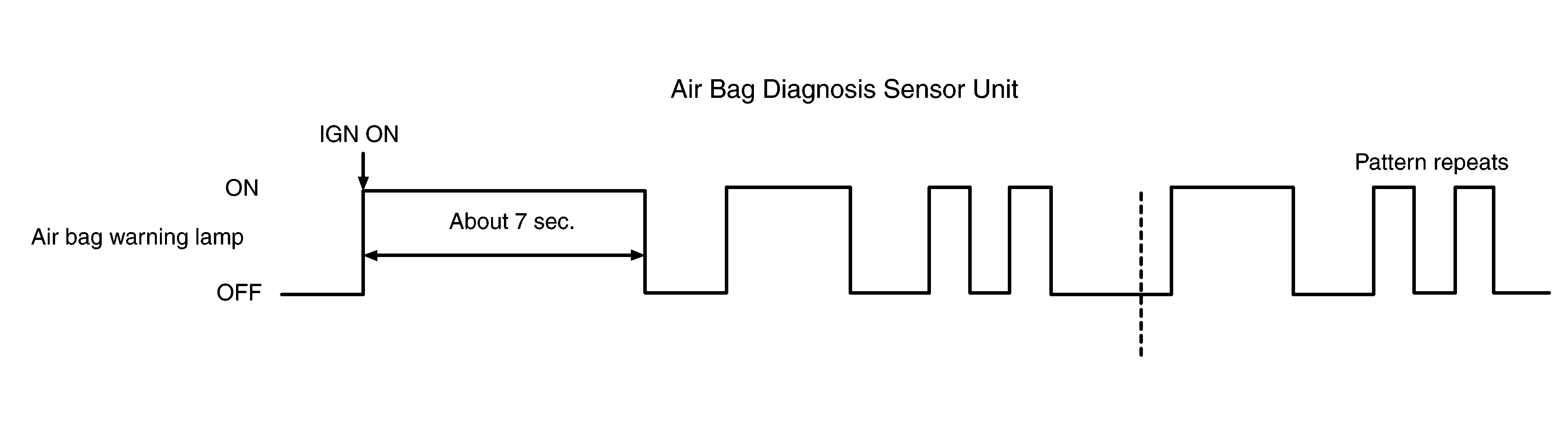

Air bag diagnosis sensor unit |
|||
|
3 |
Front passenger air bag OFF indicator |
|||
|
4 |
Occupant classification system |
DTC Diagnosis Procedure (B00A0-00, -02 or -09) , DTC Diagnosis Procedure (B00A0-04) , DTC Diagnosis Procedure (B00A0-83, -86, -87, -88 or -8F) , DTC Diagnosis Procedure (B00A0-93) |
Sensor subsystem
|
Flashes (Primary) |
Flash Length (seconds) |
Flashes (Secondary) |
Malfunctioning Component or Circuit |
Reference |
|
2 |
3 |
1 |

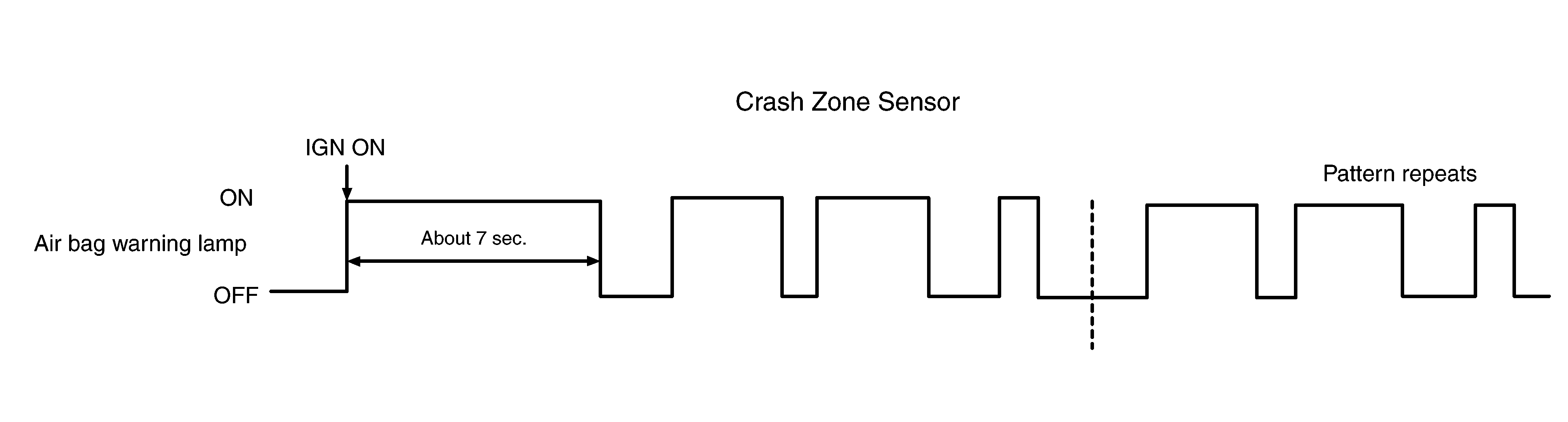

Crash zone sensor |
|
|
2 |
Front side air bag satellite sensor LH |
|||
|
3 |
Front side air bag satellite sensor RH |
|||
|
4 |
Rear side air bag satellite sensor LH |
|||
|
5 |
Rear side air bag satellite sensor RH |
|||
|
6 |
Front door satellite sensor LH |
|||
|
7 |
Front door satellite sensor RH |
|||
|
8 |
Front seat belt buckle switch LH |
|||
|
9 |
Front seat belt buckle switch RH |
