INFINITI Drive Mode Selector

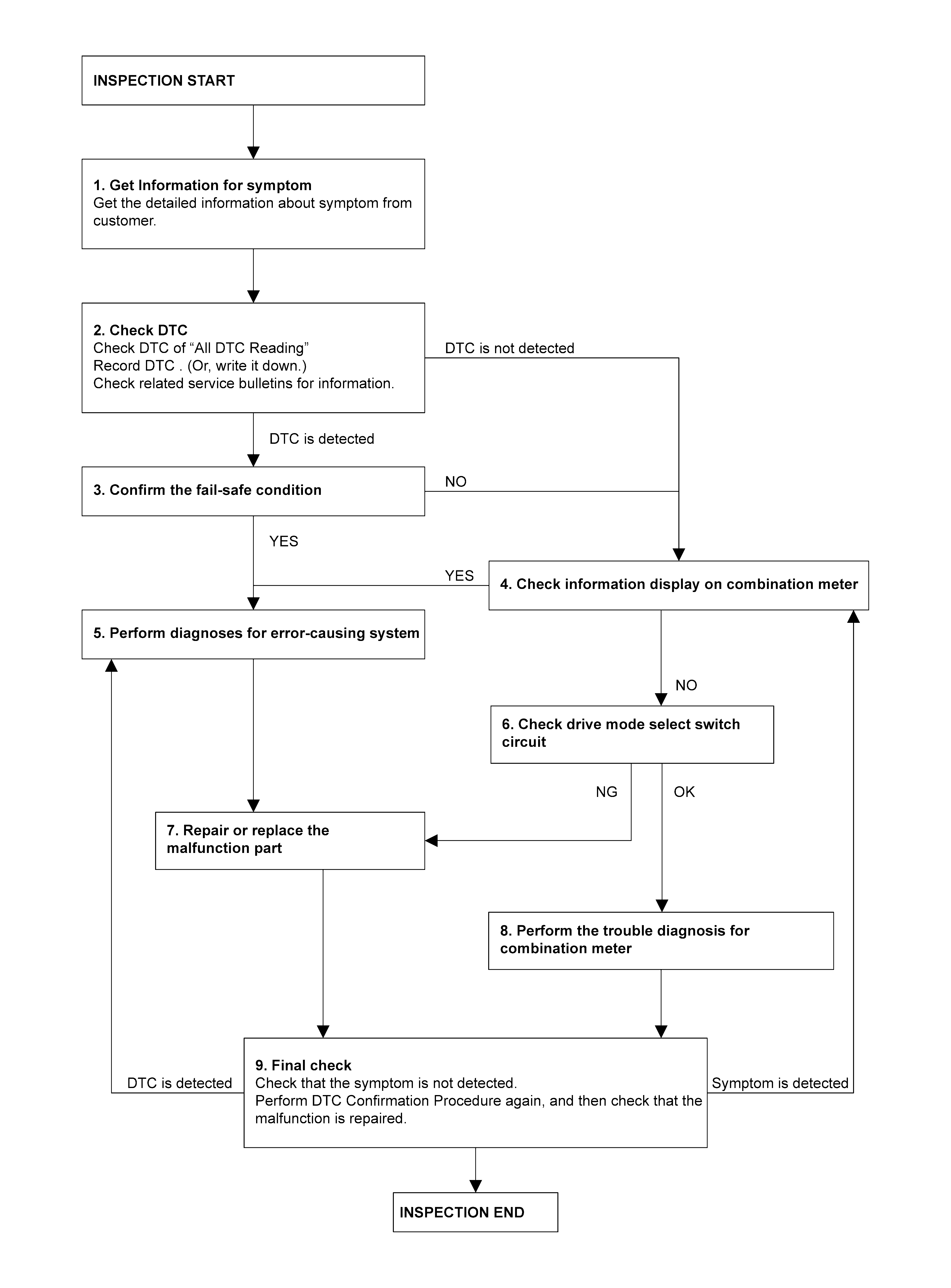

Overall Sequence
Detailed Flow
- GET INFORMATION FOR SYMPTOM
- Get the detailed information about symptom from customer.
- Check the drive mode indicator on the meter appeared.
- Check the Drive mode indicator on the meter changed when operates the drive mode select switch.
GO TO 2.
- CHECK THE DTC
- Check DTC of "All DTC Reading".
- Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data. (Or, write it down.)
- Check related service bulletins for information.
Are any DTCs detected?
YES
GO TO 3.
NO
GO TO 4.
- CONFIRM THE FAIL-SAFE CONDITION
Confirm the fail-safe condition of detected DTC. Refer to Fail-Safe .
Are there any DTCs that causes INFINITI drive mode selector function is suspended?
YES
GO TO 5.
NO
GO TO 4.
- CHECK INFORMATION DISPLAY ON COMBINATION METER
- Ignition switch OFF and wait at least 10 seconds.
- Ignition switch ON.
- Check that STANDARD / AUTO is displayed on the information display screen of the combination meter.
- Check that the view of information display change when switching up and down the drive mode select switch.
Is the inspection result normal?
YES
GO TO 5.
NO
GO TO 6.
- PERFORM DIAGNOSES FOR ERROR-CAUSING SYSTEM
Perform the trouble diagnosis of components that DTC indicated.
GO TO 7.
- CHECK DRIVE MODE SELECT SWITCH CIRCUIT
Check drive mode select switch circuit. Refer to Diagnosis Procedure .
Is the inspection result normal?
YES
GO TO 8.
NO
GO TO 7.
- REPAIR OR REPLACE THE MALFUNCTION PART
Repair or replace the malfunctioning part.
GO TO 9.
- CHECK COMBINATION METER
Check the COMBINATION METER.
- Full TFT meter: Refer to On Board Diagnosis Function .
- 7 inch information display: Refer to On Board Diagnosis Function .
GO TO 9.
- FINAL CHECK
- Check that the symptom is not detected.
- Perform DTC Confirmation Procedure again, and then check that the malfunction is repaired.
Is DTC detected and/or does symptom remain?
YES
(DTC is detected) GO TO 5.
YES
(Symptom remains) GO TO 4.
NO
INSPECTION END
