Accelerator Control

Unit: mm (in)

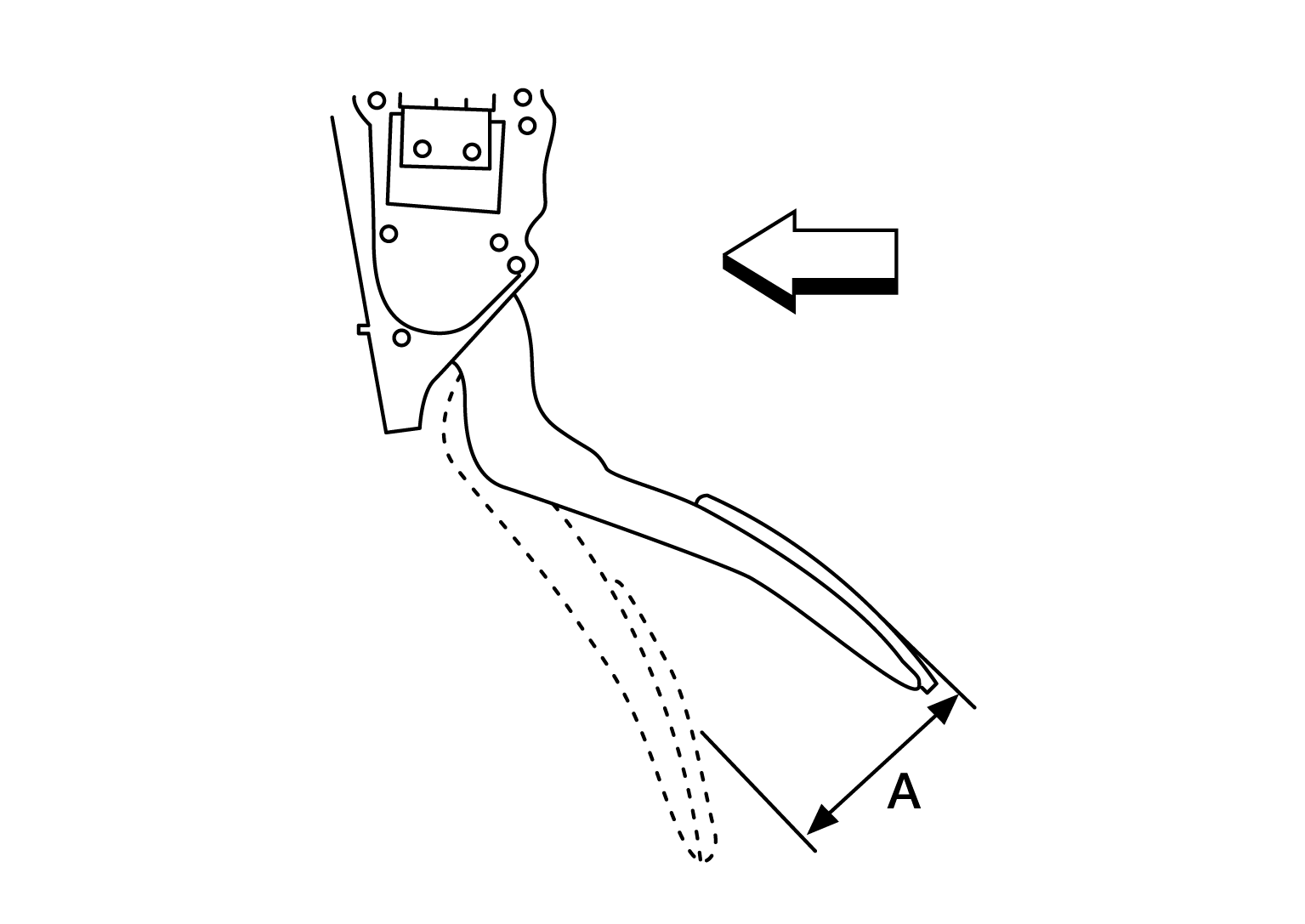

GNSDB18151Courtesy of NISSAN NORTH AMERICA, INC.

Accelerator pedal stroke (A)

50.5 - 53.5 (1.99 - 2.11)

Height difference between brake and accelerator pedal

45 +/- 5 (1.77 +/- 0.20)

SYMBOL : Front
