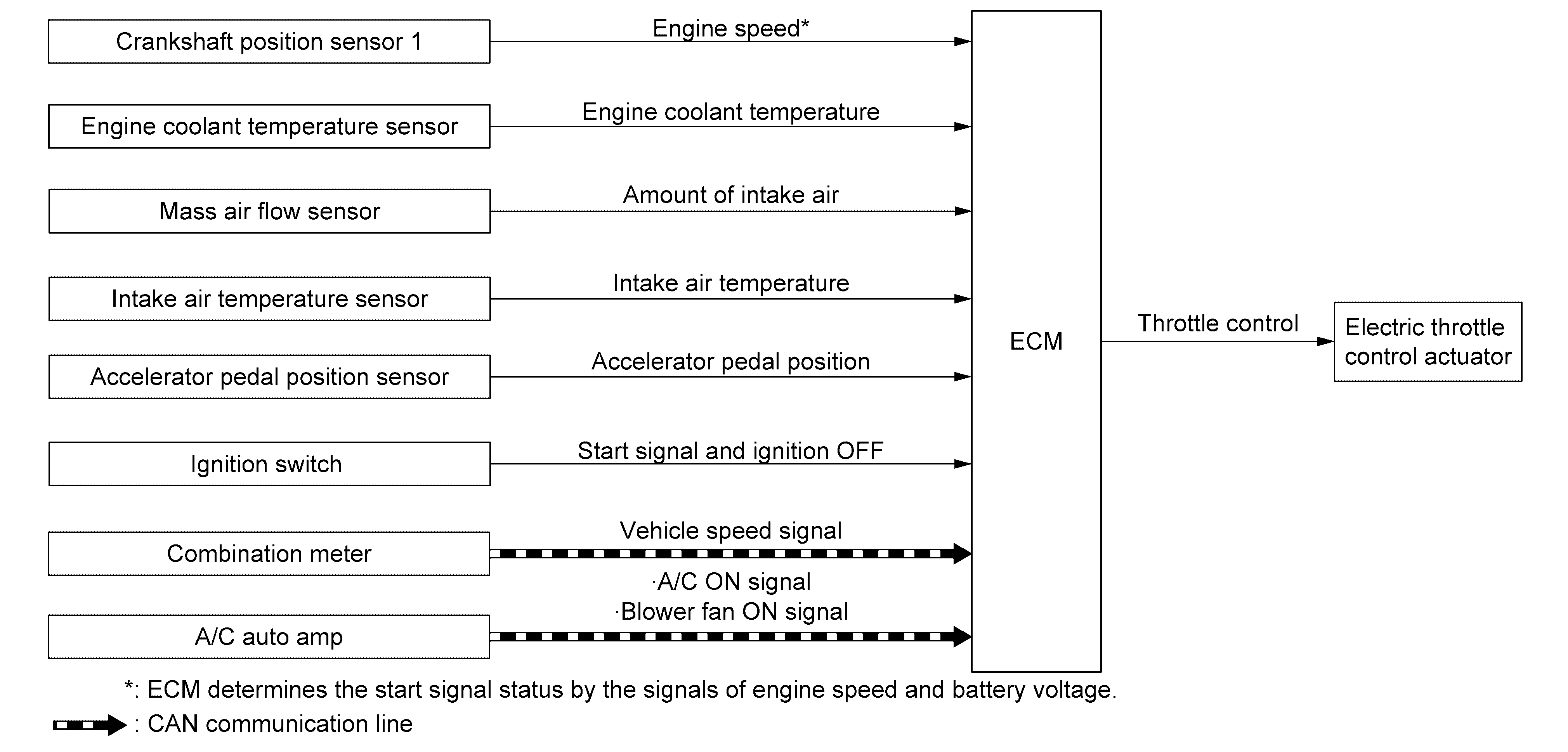

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor 1 |
|
|
Engine coolant temperature sensor |
|
|
Exhaust camshaft position sensor |
|
|
Mass air flow sensor (With intake air temperature sensor) |
|
|
Intake air temperature sensor |
|
|
Accelerator pedal position sensor |
|
|
Ignition switch |
ECM receives the ignition start signal and OFF signal. |
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
A/C auto amp. |
ECM receives below signal via CAN communication.
|
|
ECM |
|
|
Electric throttle control actuator |
