VR30DDTT engine

Tool name (TechMate No.)	Description

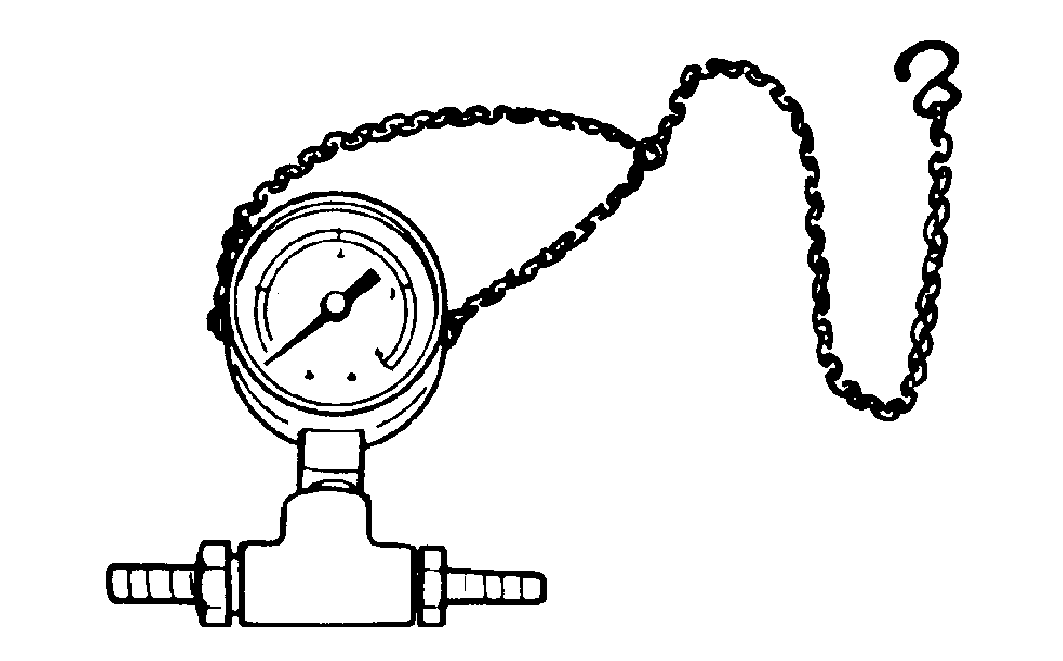

Pressure gauge	Courtesy of NISSAN NORTH AMERICA, INC.	Checking fuel pressure

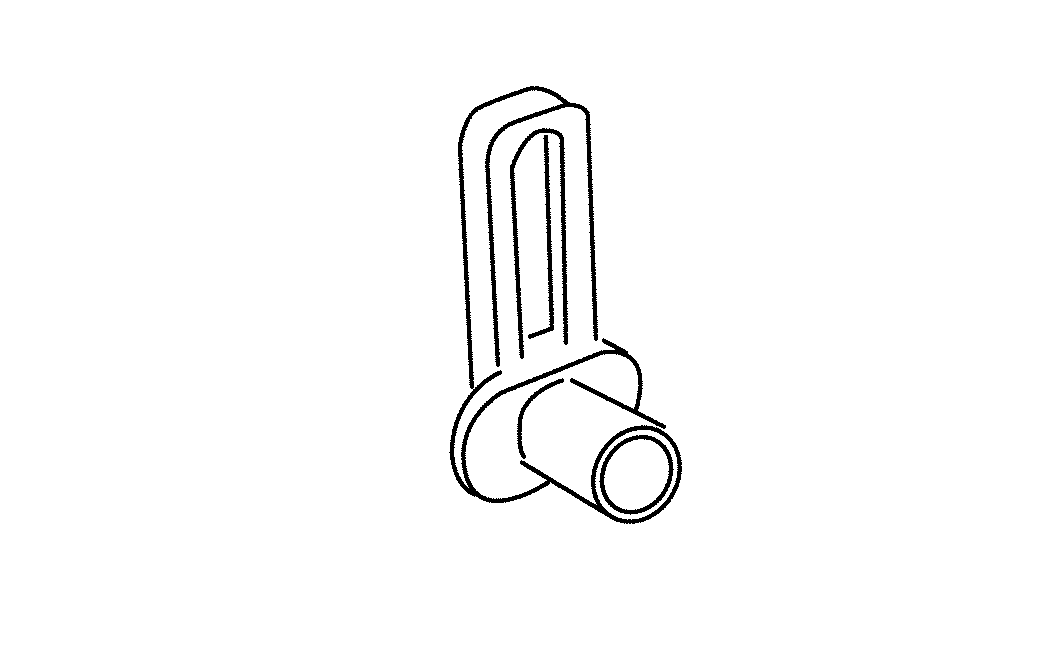

Quick connector release	Courtesy of NISSAN NORTH AMERICA, INC.	Removing fuel tube quick connectors in engine room (Part No. 16441 6N210)
Leak detector i.e.: (J-41416)	Courtesy of NISSAN NORTH AMERICA, INC.	Locates the EVAP leak
EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN NORTH AMERICA, INC.	Applies positive pressure through EVAP service port
Fuel filler cap adapter i.e.: (J-42909)	Courtesy of NISSAN NORTH AMERICA, INC.	Checks fuel tank vacuum relief valve opening pressure

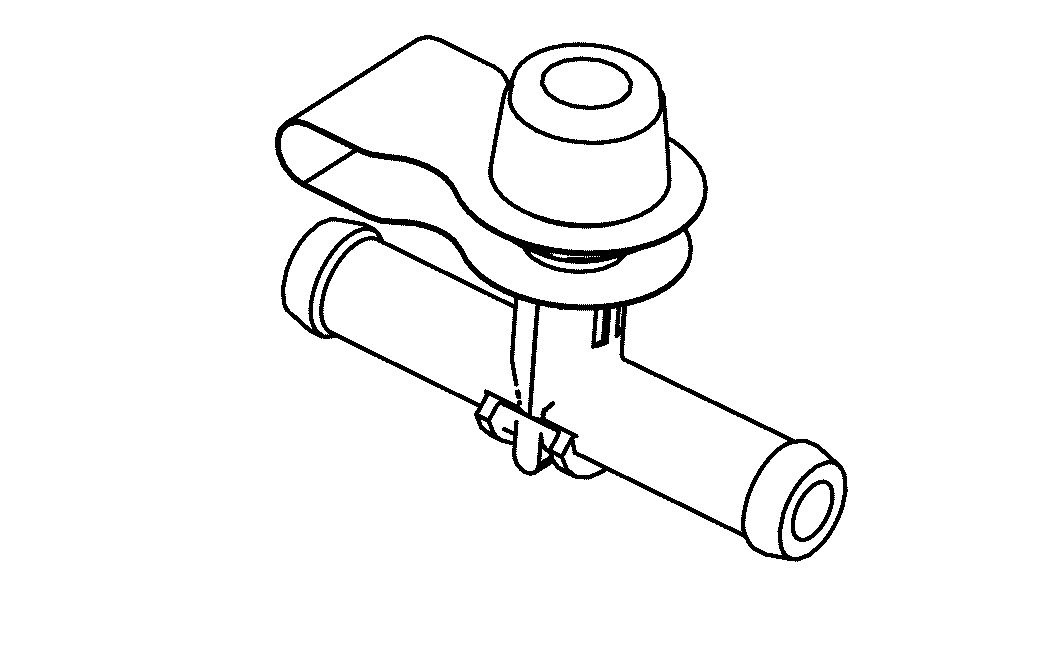

EVAP service port	Courtesy of NISSAN NORTH AMERICA, INC.	Connects pressure pump to EVAP line (Part No. 149393S500) NOTE: This tool is used if the vacuum delay valve does not have EVAP service port.
