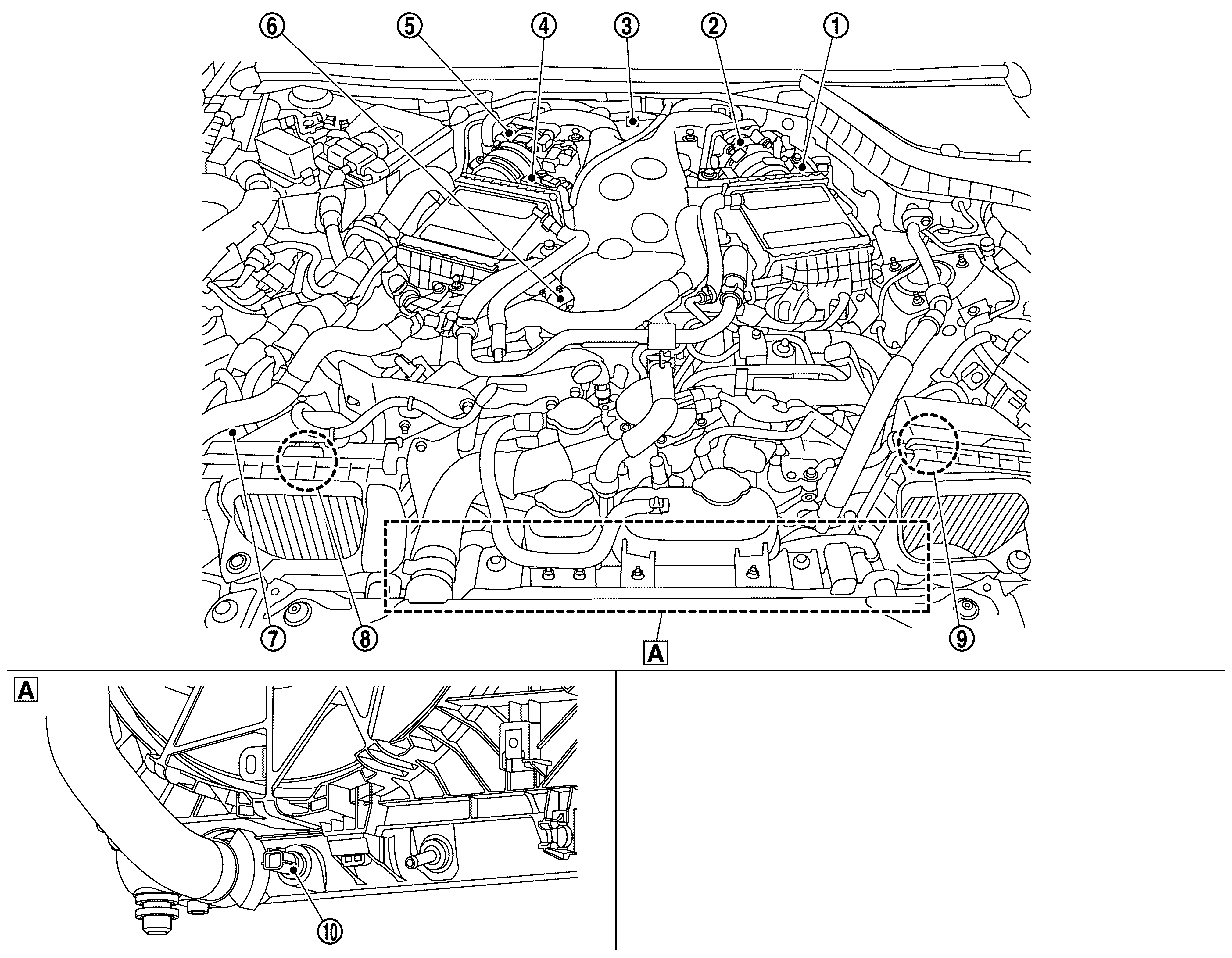

Engine Room Component
|
|
Radiator lower side |
|
No. |
Component |
Function |
|
|
Turbocharger boost sensor (bank 2) |
Refer to Component Description . |
|
|
Electric throttle control actuator (bank 2) |
Refer to Component Description . |
|
|
EVAP canister purge volume control solenoid valve |
Refer to Component Description . |
|
|
Turbocharger boost sensor (bank 1) |
Refer to Component Description . |
|
|
Electric throttle control actuator (bank 1) |
Refer to Component Description . |
|
|
Manifold absolute pressure sensor |
Refer to Component Description . |
|
|
ECM (with barometric pressure sensor) |
Refer to Component Description . |
|
|
Mass air flow sensor (with intake air temperature sensor) (bank 1) |
Refer to Component Description . |
|
|
Mass air flow sensor (bank 2) |
Refer to Component Description . |
|
|
Engine coolant temperature sensor 2 |
Refer to Component Description . |
