Removal and Installation

REMOVAL

Remove the rear door finisher. Refer to Removal and Installation .

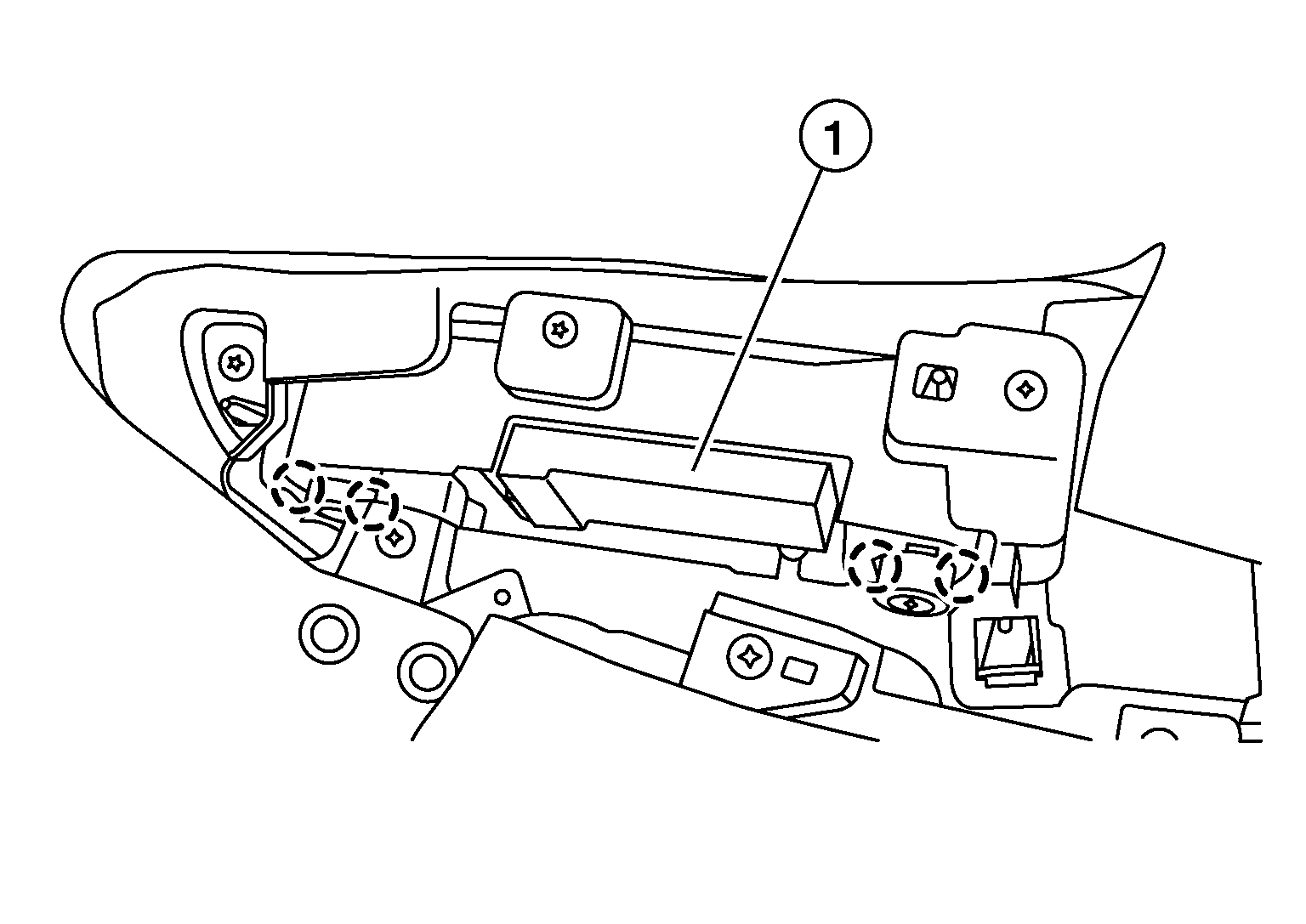

Using suitable tool, release pawls and remove rear power window switch (1).

Courtesy of NISSAN

NOTE: LH shown, RH similar.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When rear power window switch is removed or replaced, it is necessary to perform the initialization procedure. Refer to Description .
When rear power window switch is removed or replaced, it is necessary to perform the check anti-pinch procedure. Refer to Description .
