Work Procedure

WARNING:

Never move the vehicle during "DAST CALIBRATION (MODE1)" because the steering gear is held in neutral position until ignition switch is OFF.
"DAST CALIBRATION (MODE1)" is additional service when removing/installing/replacing DAST parts or adjusting wheel alignment. "DAST CALIBRATION (MODE1)" is used in [Clutch phase learning] and [Steering rack neutral learning]. Using it incorrectly cause off-center. Refer to "ADDITIONAL SERVICE WHEN REPLACING OR REMOVING DAST PARTS" (Refer to Work Procedure ). and "TOE-IN ADJUSTMENT" [Refer to Inspection and Adjustment (alignment tester), Inspection and Adjustment (except alignment tester).] before performing it.

CAUTION:

Be careful for the moving parts, steering wheel and front wheels are steered automatically when start "DAST CALIBRATION (MODE1)".
Do not rotate road wheels during the DAST calibration because the system is detected the vehicle running.
When the work stops (CONSULT freezing etc.,), re-perform the work from the first step.

CONFIRM THAT STEERING WHEEL IS INDEXED CORRECTLY

Remove driver air bag module. Refer to Removal and Installation .

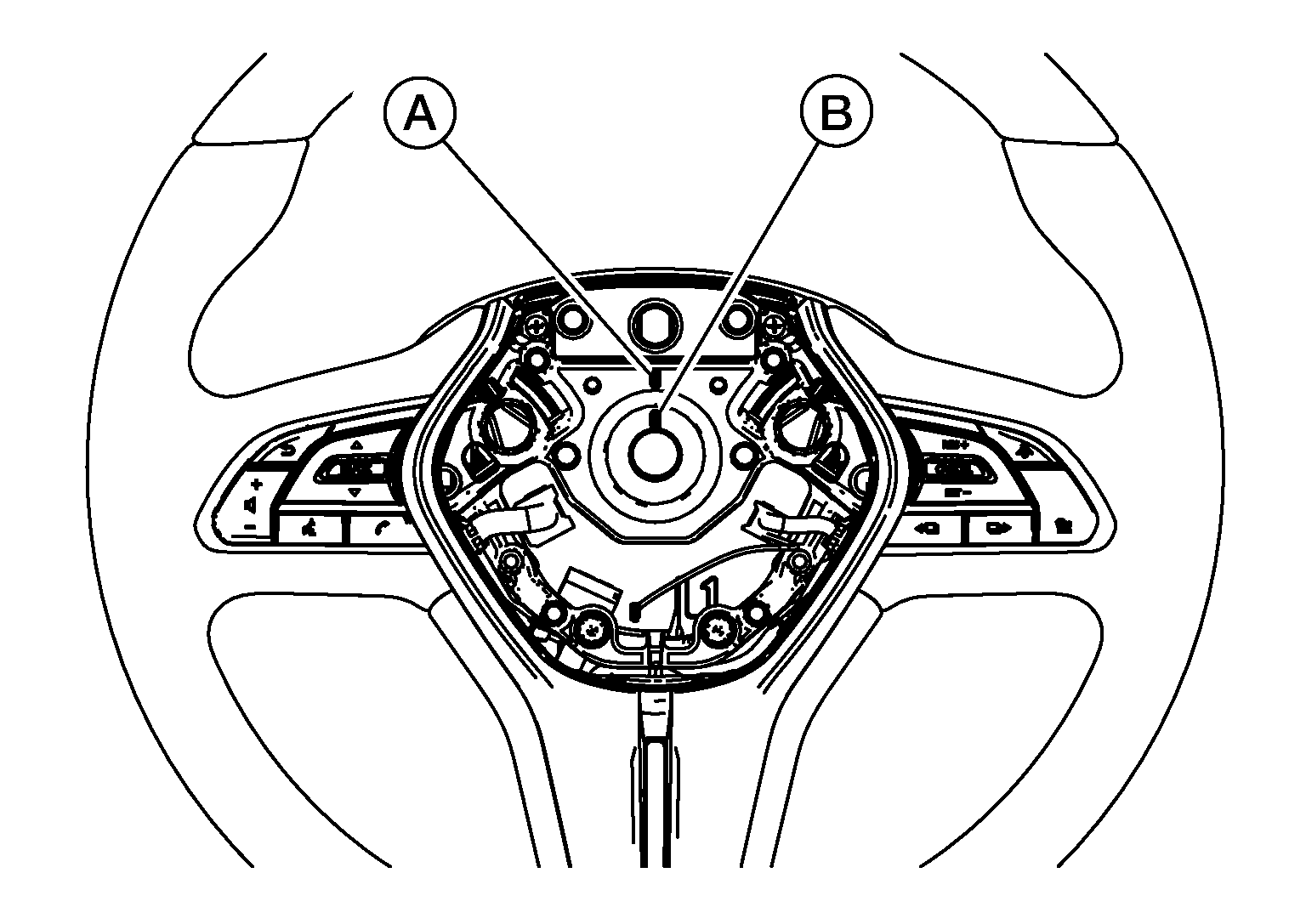

Verify that the alignment index mark on the steering shaft (B) is in line with the index mark on the steering wheel (A).

Courtesy of NISSAN

Is the steering wheel indexed correctly?

YES>>

Reinstall driver air bag module. Refer to Removal and Installation . GO TO 2.

NO>>

Remove steering wheel and realign correctly. Refer to Removal and Installation . GO TO 2

CONFIRM THAT STEERING SHAFT IS INDEXED CORRECTLY
1. Confirm that steering shaft is indexed correctly. Perform "INSPECTION AFTER INSTALLATION". Refer to Removal and Installation .
Is the steering shaft indexed correctly?

YES>>

GO TO 3.

NO>>

Disconnect the lower joint from the steering gear and realign correctly. Refer to Removal and Installation . GO TO 3.
PREPARATION BEFORE DAST CALIBRATION
1. 1. Set the front wheel on the turn table.
    NOTE: Do not lift up the vehicle during "DAST CALIBRATION (MODE1)"
  2. Check that inner socket length is in the specified value. Refer to Removal and Installation - Inner socket .
  3. Connect the battery charger to protect the battery.
    NOTE: Much electricity is used in "DAST CALIBRATION (MODE1)".
  4. Place the tilt to the highest level.
>>

GO TO 4.
DAST CALIBRATION (MODE1)
1. CONSULT
  1. Erase "Self Diagnostic Result" mode of "EPS/DAST 3", "DAST 1" and "DAST 2".
  2. Select "DAST CALIBRATION (MODE1)" in "Work support" mode of "EPS/DAST 3".
  3. Select "Start".
    CAUTION:
    Be careful for the moving parts, steering wheel and front wheels are steered automatically when select "Start".
    NOTE:
    When DTC is detected, "WORK SUPPORT" may not be started. When DTC is detected, check the DTC. Refer to DTC Index .

    When "DAST CALIBRATION (MODE1)" is completed, the clutch is released.
  4. After checking that the power steering warning lamp turns off, turn the steering wheel to the straight-ahead position. Then select "Start".
    CAUTION:
    Be careful in turning the steering wheel to the straight-ahead position.

    Since the force feedback of steering becomes smaller after the completion of auto steering, take good care for turning the steering.
    NOTE: The clutch is engaged and then the steering shaft connects to steering gear.
  5. Select "End".
    CAUTION:
    Never place the ignition switch OFF.
>>

Inspection End.
