Exploded View

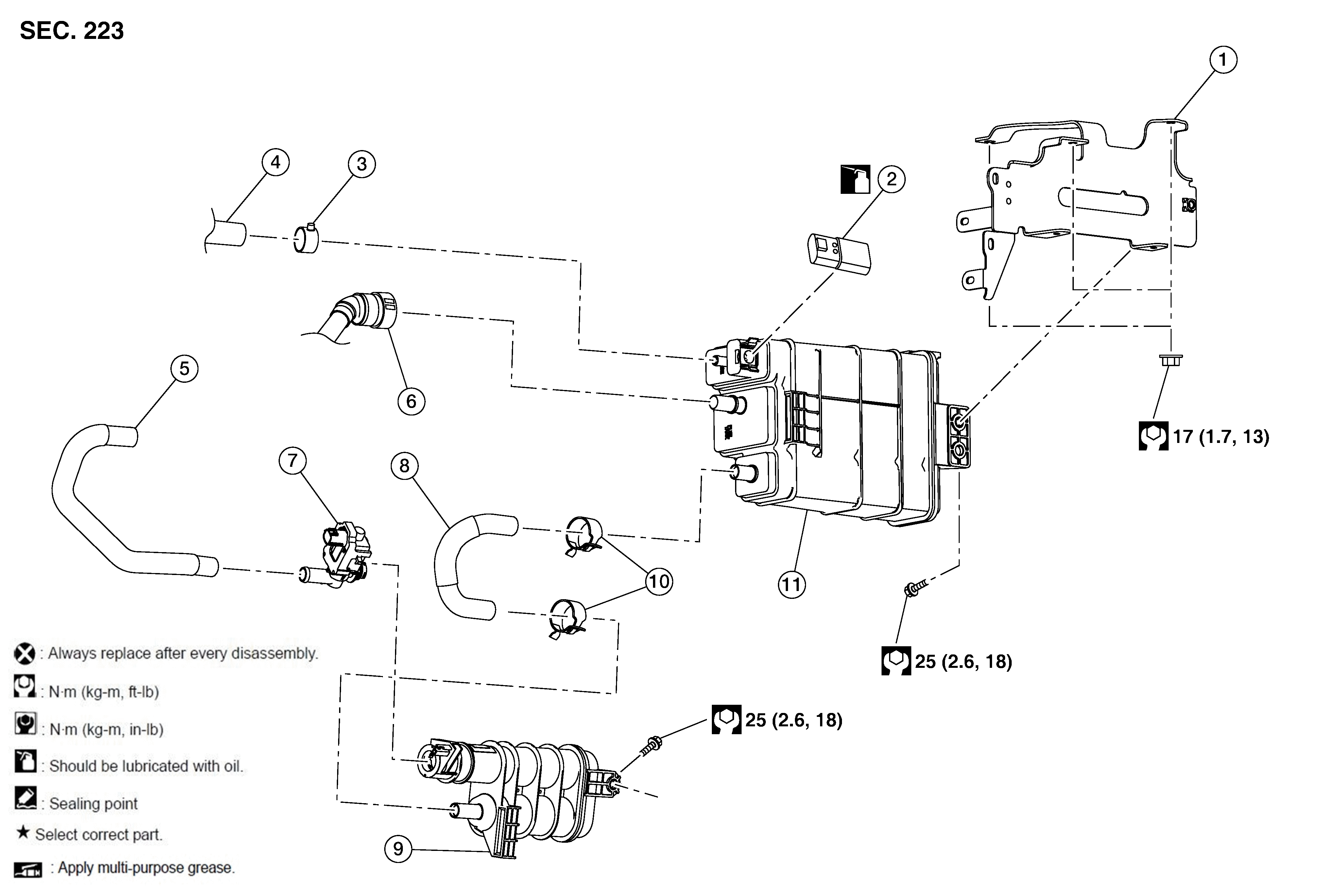

Fig 1: EVAP Control System Pressure Sensor With Torque Specifications

Courtesy of NISSAN

1.	EVAP canister bracket	2.	EVAP control system pressure sensor (with O-ring)	3.	Clamp
4.	EVAP canister purge hose	5.	EVAP tube	6.	EVAP vent line
7.	EVAP canister vent control valve	8.	EVAP canister vent control valve hose	9.	Secondary EVAP canister
10.	Clamp	11.	EVAP canister
