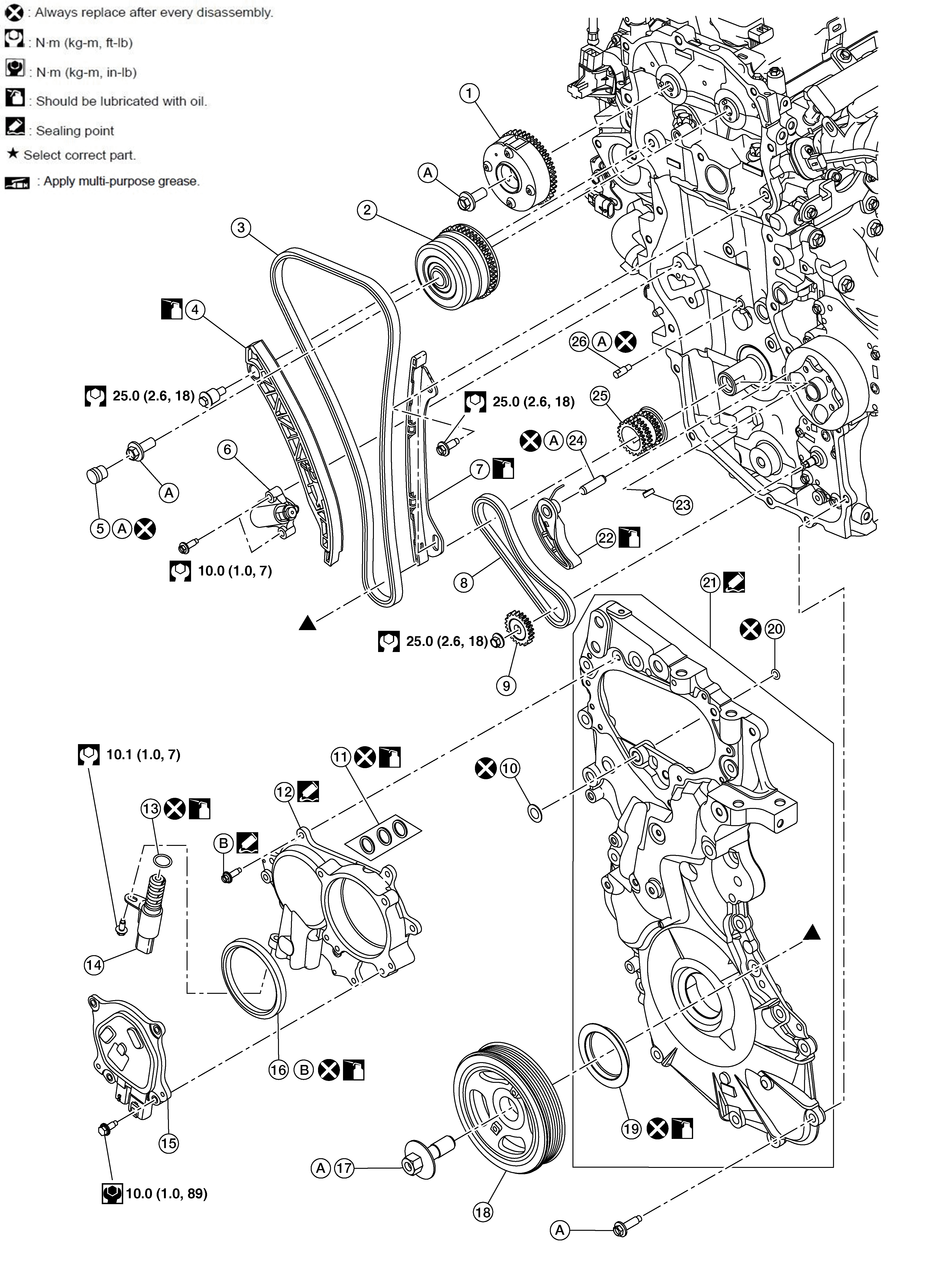

Exploded View
| 1. | Camshaft sprocket (EXH) | 2. | Camshaft sprocket (INT) | 3. | Timing chain |
| 4. | Slack guide | 5. | Electric intake valve timing control actuator target | 6. | Timing chain tensioner |
| 7. | Tension guide | 8. | Oil pump drive chain | 9. | Oil pump sprocket |
| 10. | Filter | 11. | O-ring | 12. | Valve timing control cover |
| 13. | O-ring | 14. | Exhaust valve timing control solenoid valve | 15. | Electric intake valve timing control actuator |
| 16. | Camshaft sprocket (INT) oil seal | 17. | Crankshaft pulley bolt | 18. | Crankshaft pulley |
| 19. | Front oil seal | 20. | O-ring | 21. | Front cover |
| 22. | Oil pump drive chain tensioner | 23. | Crankshaft key | 24. | Oil pump drive chain tensioner shaft |
| 25. | Crankshaft sprocket | 26. | Timing chain oil jet | A. | Refer to Removal and Installation . |
| B. | Refer to Removal and Installation . | ||||
: Indicates that the part is connected at points with the same symbol in actual vehicle.
