Method Of Starting

  1. Ignition switch ON.
  2. Turn the audio system OFF.

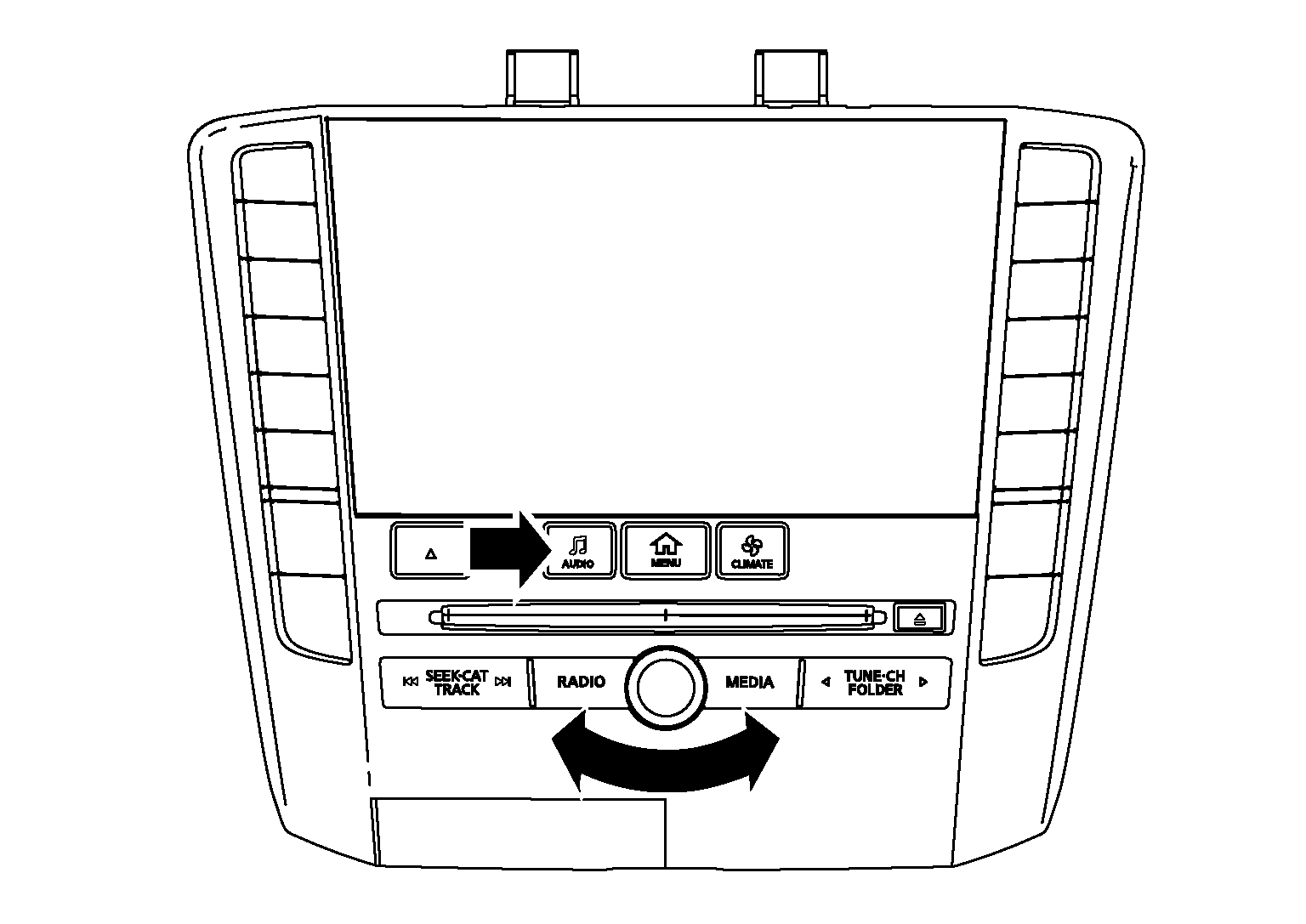

  3. While pressing the AUDIO button, turn the VOL dial clockwise or counterclockwise for 40 clicks or more. Shifting from current screen to previous screen is performed by pressing BACK button.
    GNSDB39205Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
