System Control Condition Display

Quickly push (less than 1.5 seconds) and release the ICC MAIN switch.

Condition

Display on ICC system display

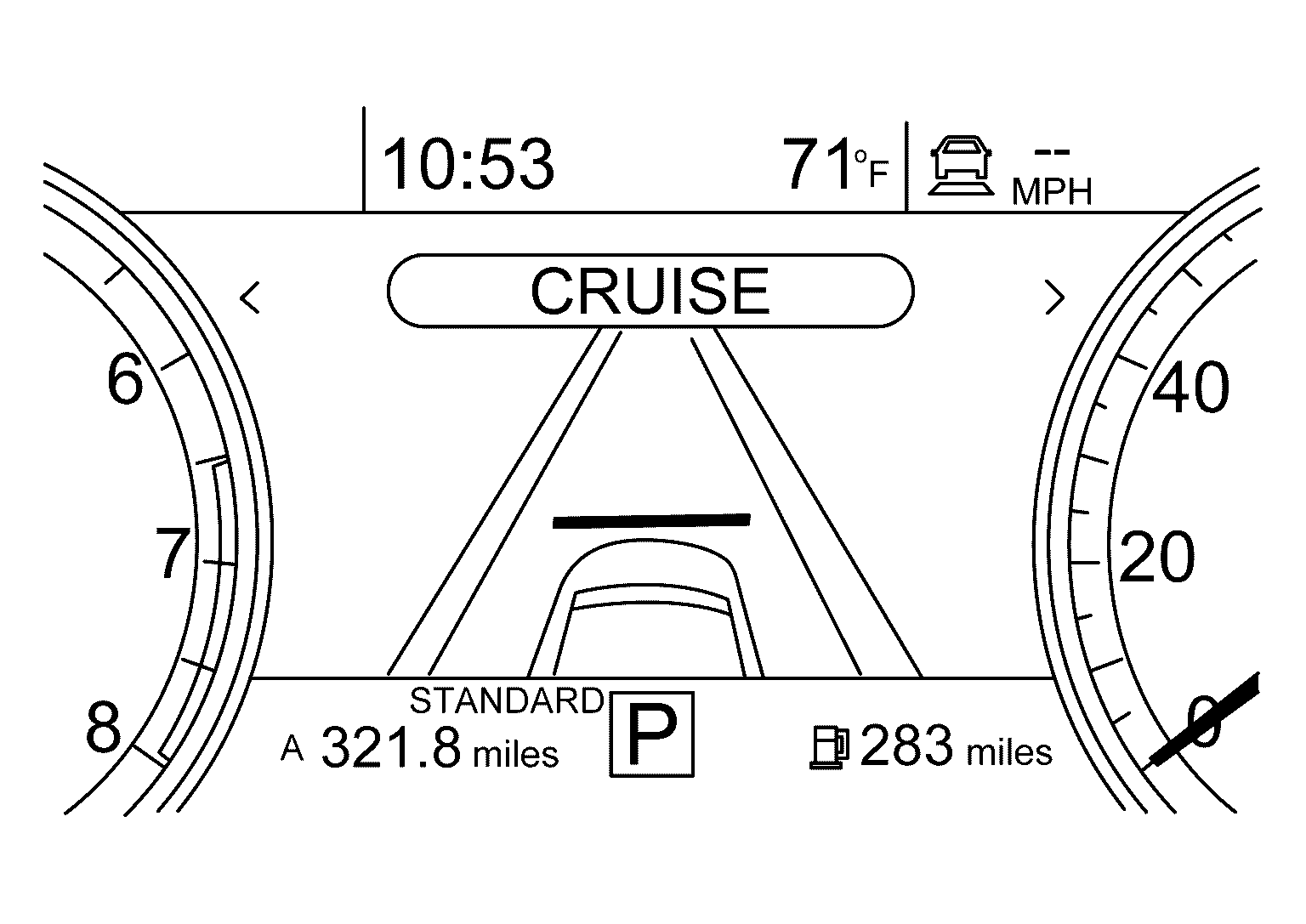

Standby mode

GNSDB39183Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

Without a vehicle ahead

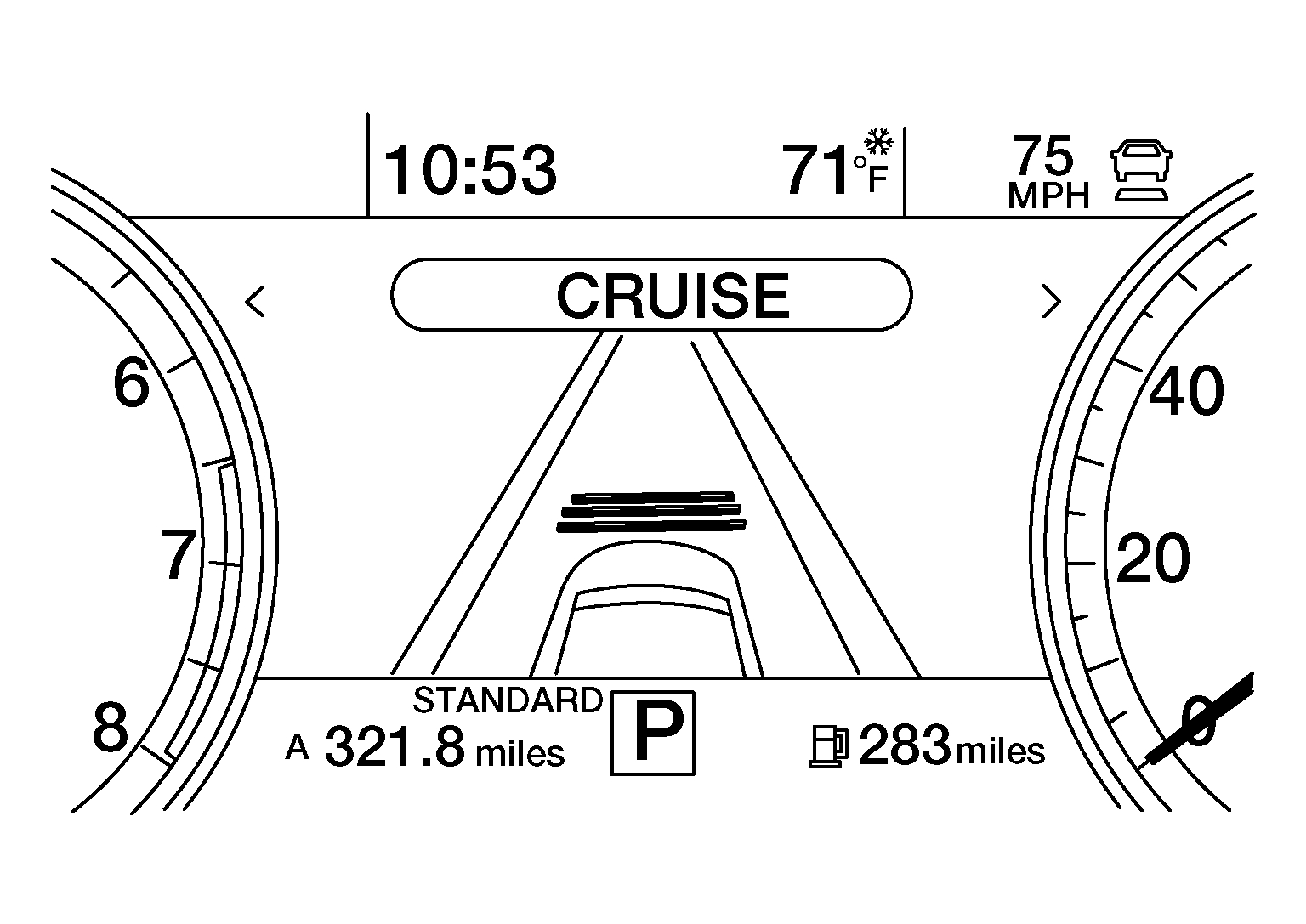

Set vehicle distance (Long)

GNSDB38681Courtesy of NISSAN NORTH AMERICA, INC.

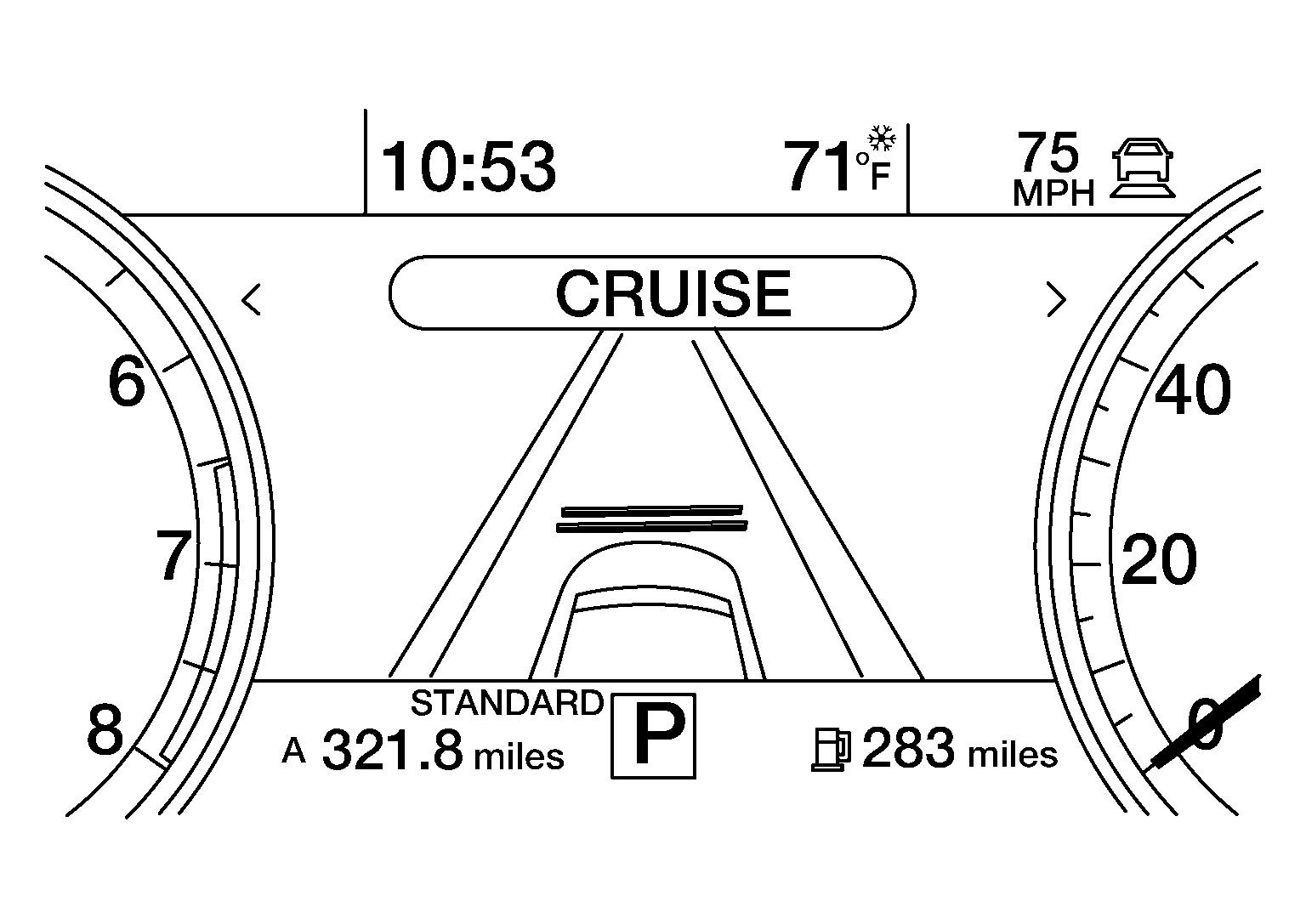

Set vehicle distance (Middle)

GNSDB37810Courtesy of NISSAN NORTH AMERICA, INC.

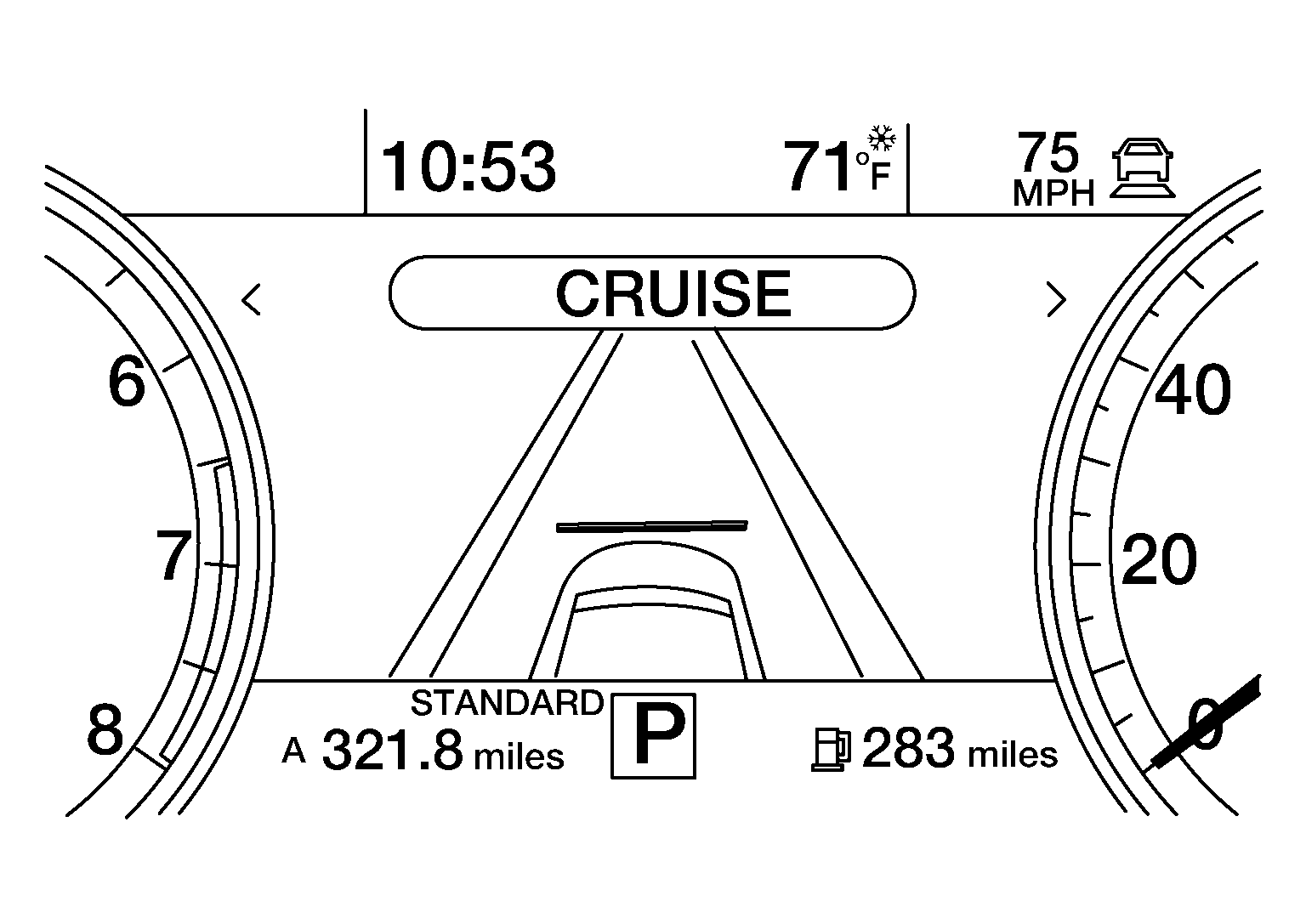

Set vehicle distance (Short)

GNSDB38629Courtesy of NISSAN NORTH AMERICA, INC.

When the vehicle speed exceeds the set speed

GNSDB37714Courtesy of NISSAN NORTH AMERICA, INC.

Control mode

With a vehicle ahead

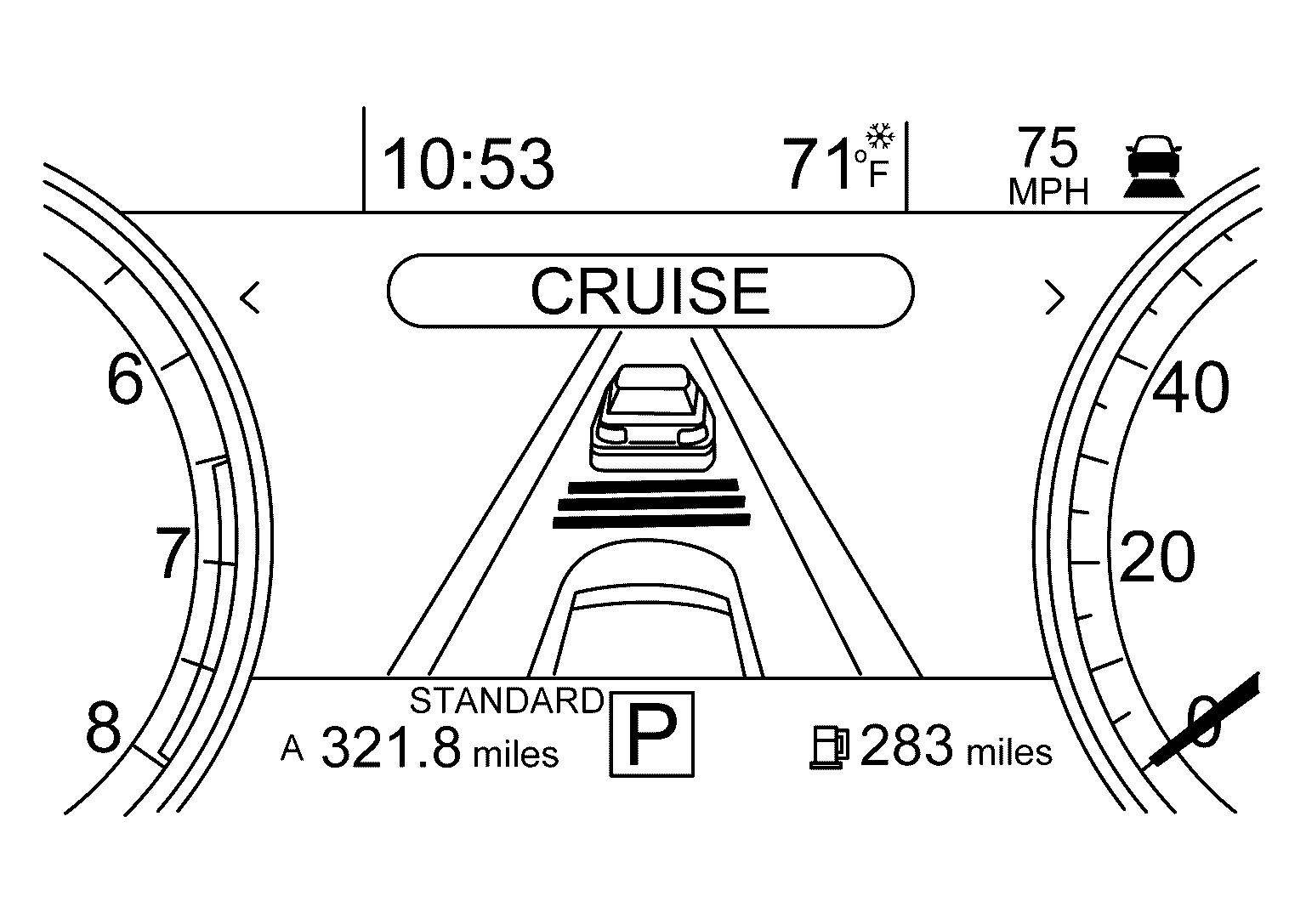

Set vehicle distance (Long)

GNSDB38296Courtesy of NISSAN NORTH AMERICA, INC.

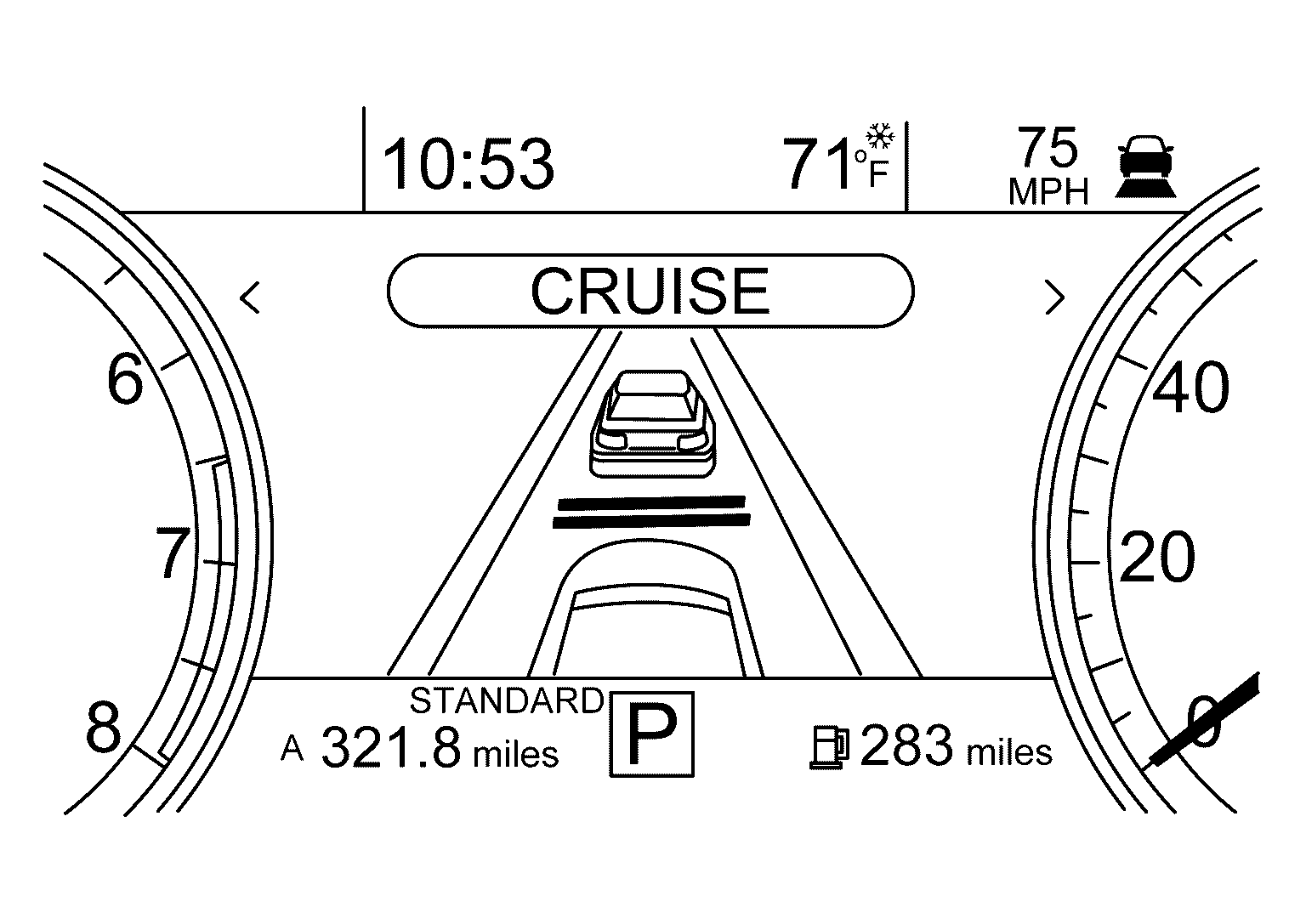

Set vehicle distance (Middle)

GNSDB38793Courtesy of NISSAN NORTH AMERICA, INC.

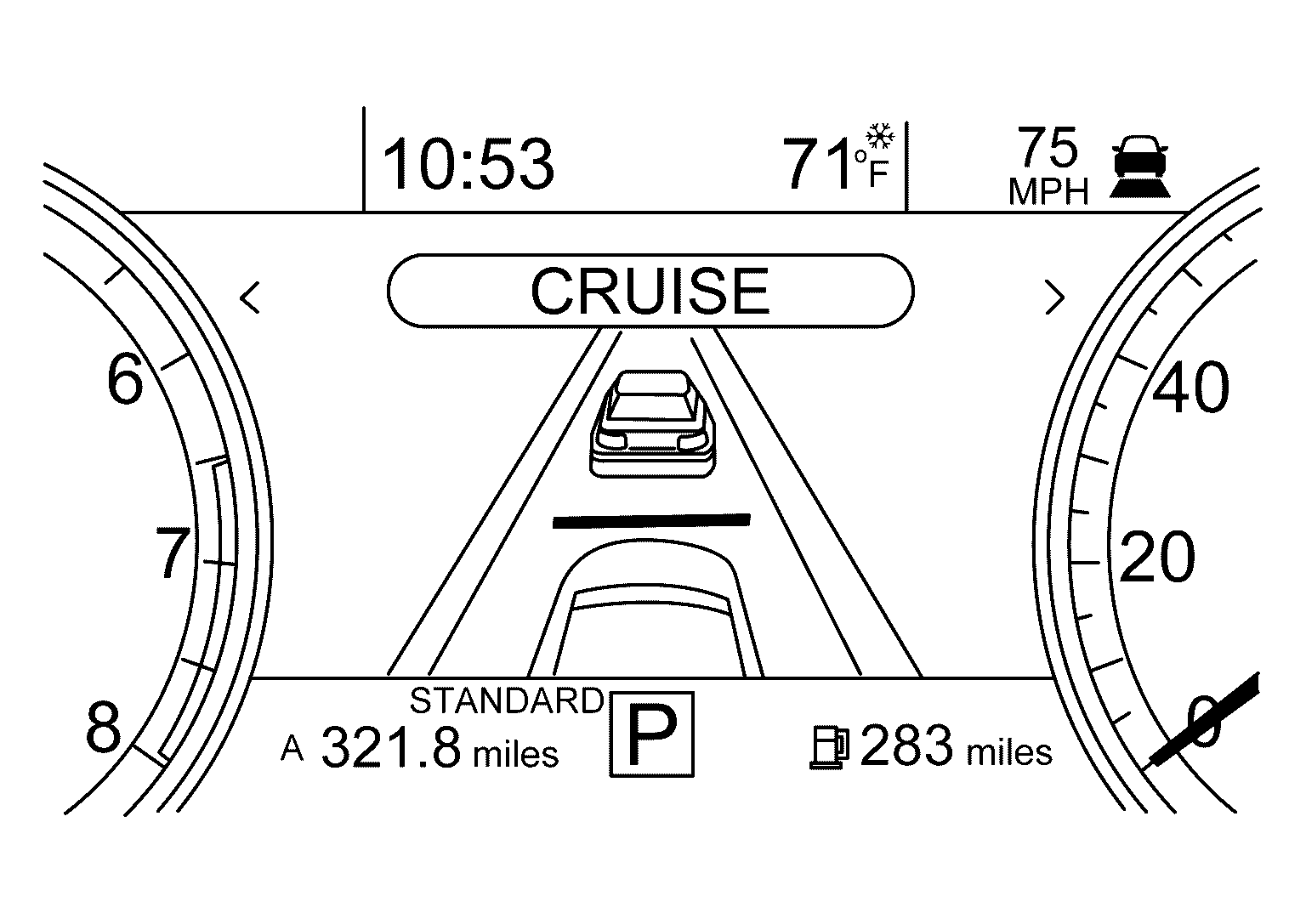

Set vehicle distance (Short)

GNSDB38588Courtesy of NISSAN NORTH AMERICA, INC.

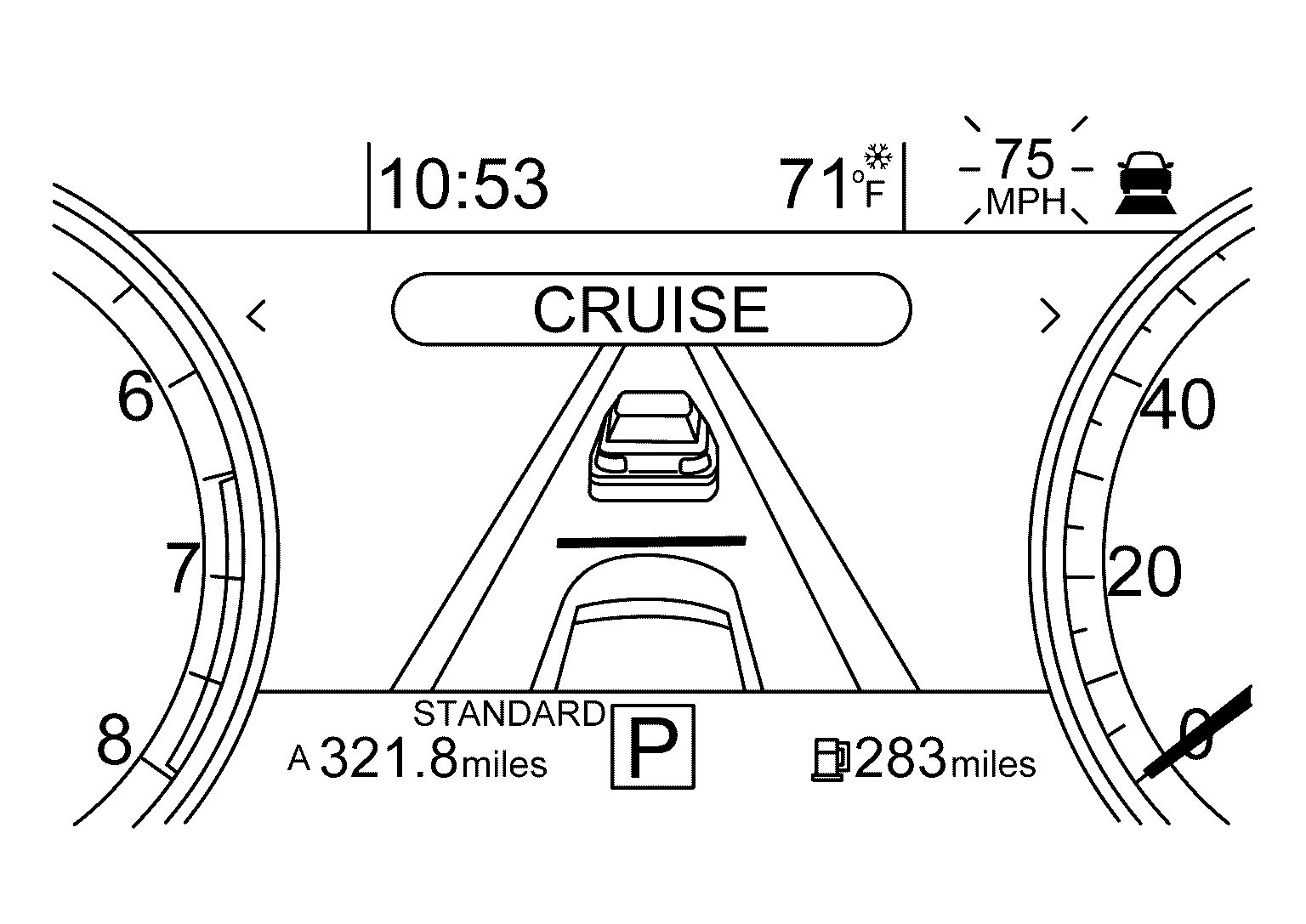

When the vehicle speed exceeds the set speed

GNSDB39252Courtesy of NISSAN NORTH AMERICA, INC.
