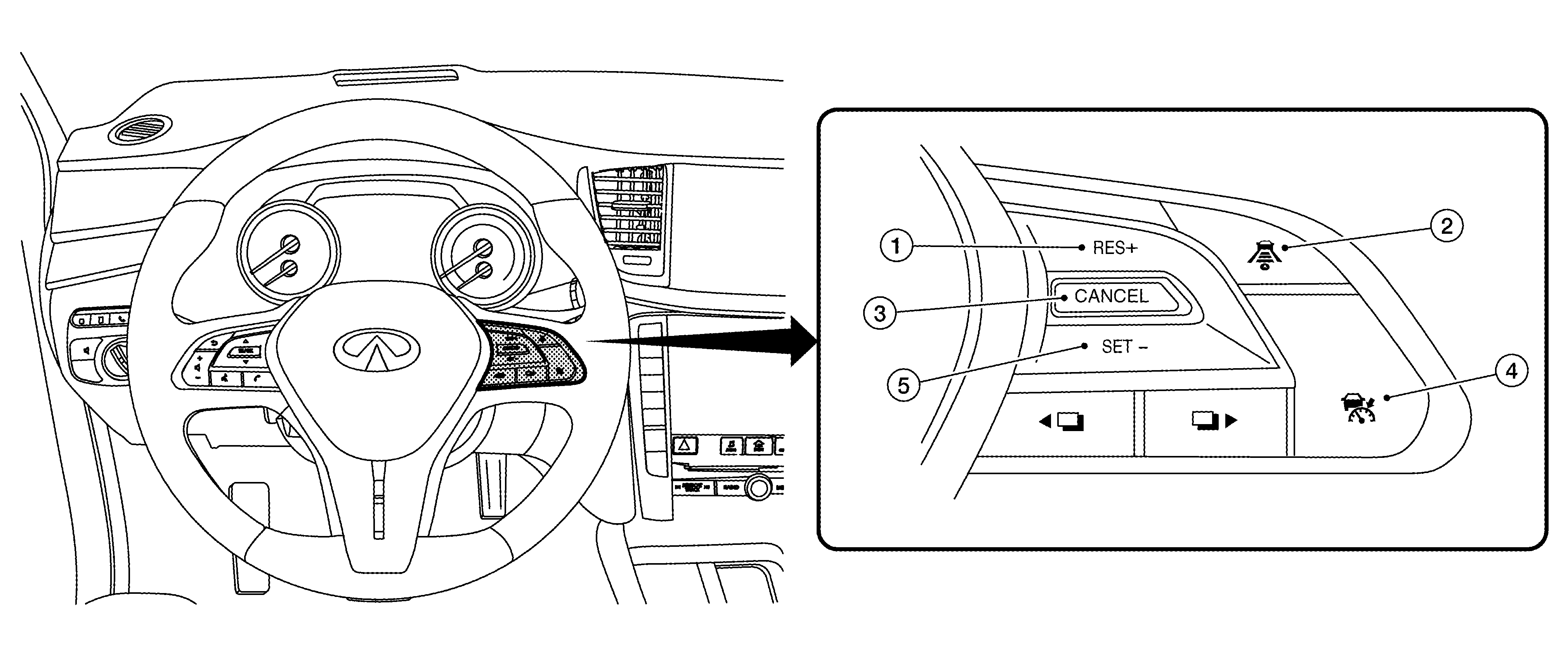

Switch Name and Function

No.

Switch name

Description

1

RESUME + switch

Resumes set speed or increases speed incrementally:

• Push and hold the switch to increase the set speed by 5 km/h (5 MPH).
• Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH).

2

DISTANCE switch

Changes the following distance from: Long, Middle, Short.

3

CANCEL switch

Deactivates the system without erasing the set speed.

4

MAIN switch

Master switch to activate the system (Press for less than 1.5 seconds).

5

SET - switch

Sets desired cruise speed or reduces speed incrementally:

• Push and hold the switch to decrease the set speed by 5 km/h (5 MPH)
• Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH)
