Front Auxiliary Input Jacks Control Unit

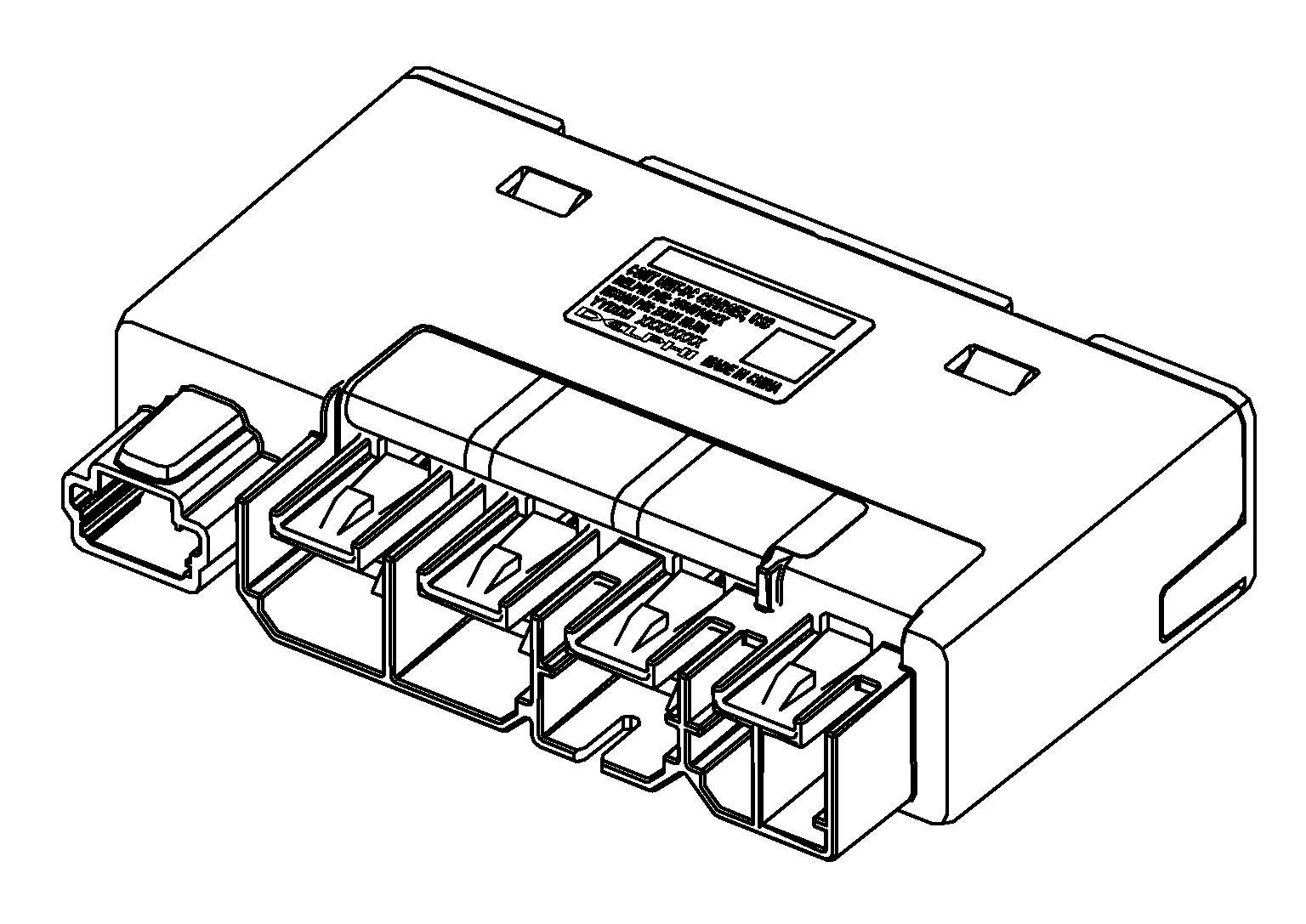

Front auxiliary input jacks control unit is located behind the Integral switch, above the AV control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
USB interface signals from the front auxiliary input jacks are transferred to the AV control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
