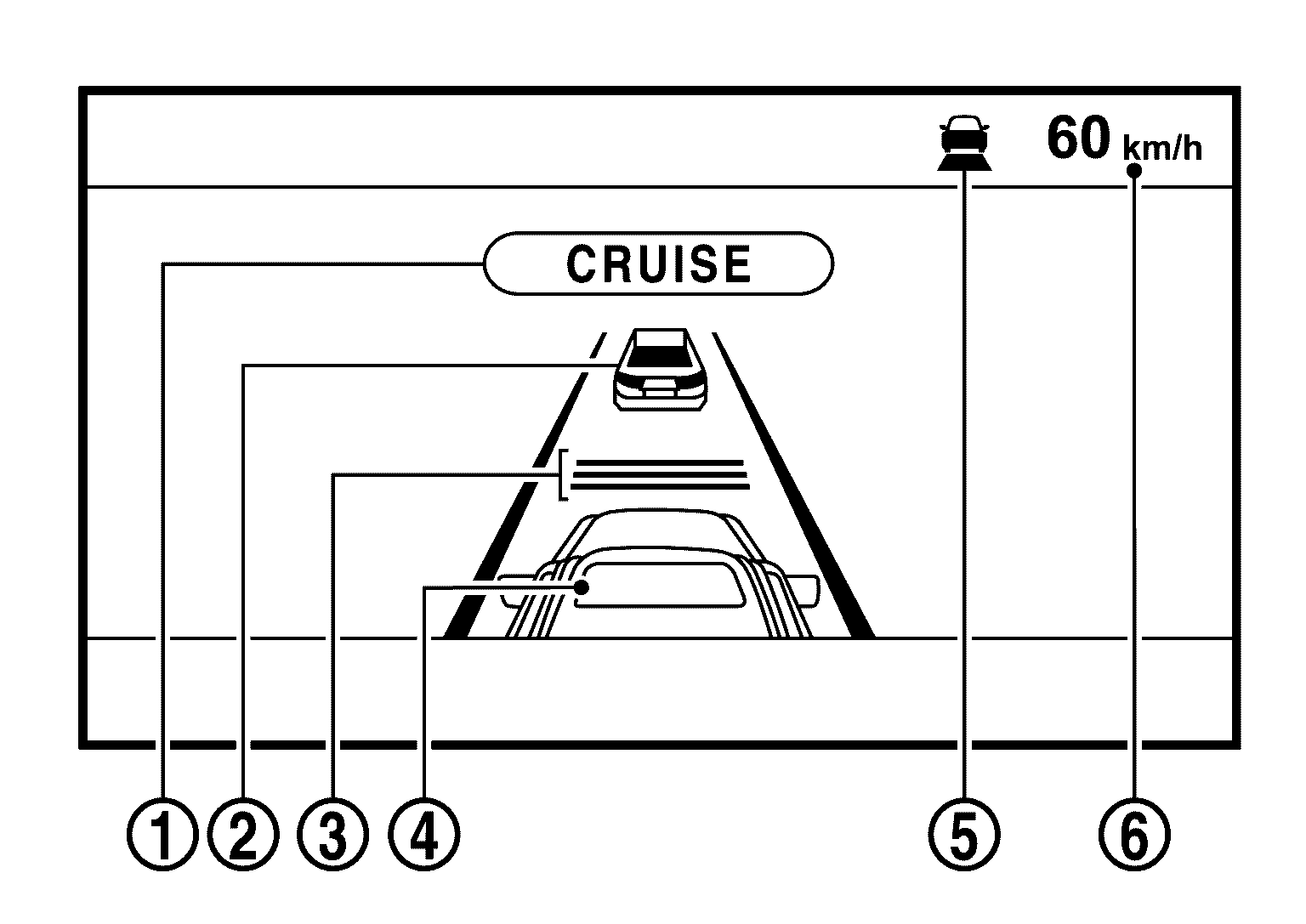

ICC System Display (On The Information Display)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	MAIN switch indicator	Indicates that the MAIN switch is ON (ICC system ON)
	Vehicle ahead detection indicator	Indicates whether it detects a vehicle ahead
	Set distance indicator	Indicates the selected distance between vehicles set with the DISTANCE switch
	Own vehicle indicator	Indicates the own vehicle
	ICC system ON indicator (Gray)	Indicates that Main switch is ON
	ICC system set indicator (Green)	Indicates that cruising speed is set
	ICC system warning (Yellow)	Indicates that if there is a malfunction in the ICC system
	Set vehicle speed indicator	Indicates the set vehicle speed
