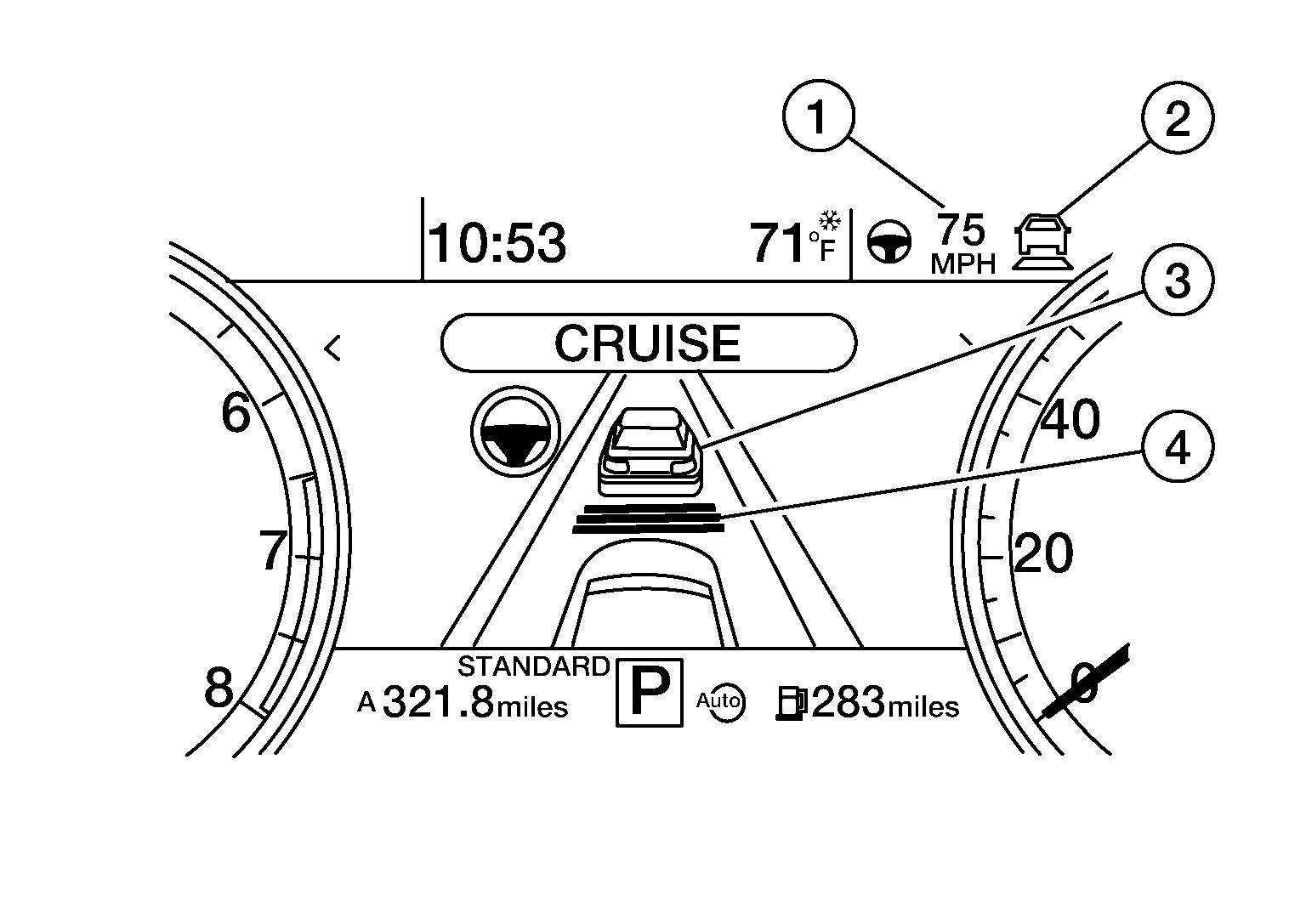

ICC System Display (On The Information Display)
|
No. |
Display item |
Description |
|
1 |
Set vehicle speed indicator |
|
|
2 |
Main switch indicator (gray) |
Yellow: Indicates the main switch is ON (ICC system ON) |
|
Main switch indicator (yellow) |
Orange: Indicates that a malfunction occurred in the ICC system |
|
|
Main switch indicator (green) |
Green: Indicates that the cruising speed is set |
|
|
3 |
Vehicle ahead detection indicator |
Indicates whether it detects a vehicle ahead |
|
4 |
Set distance indicator |
Indicates the selected distance between vehicles set with the DISTANCE switch |
