Exploded View

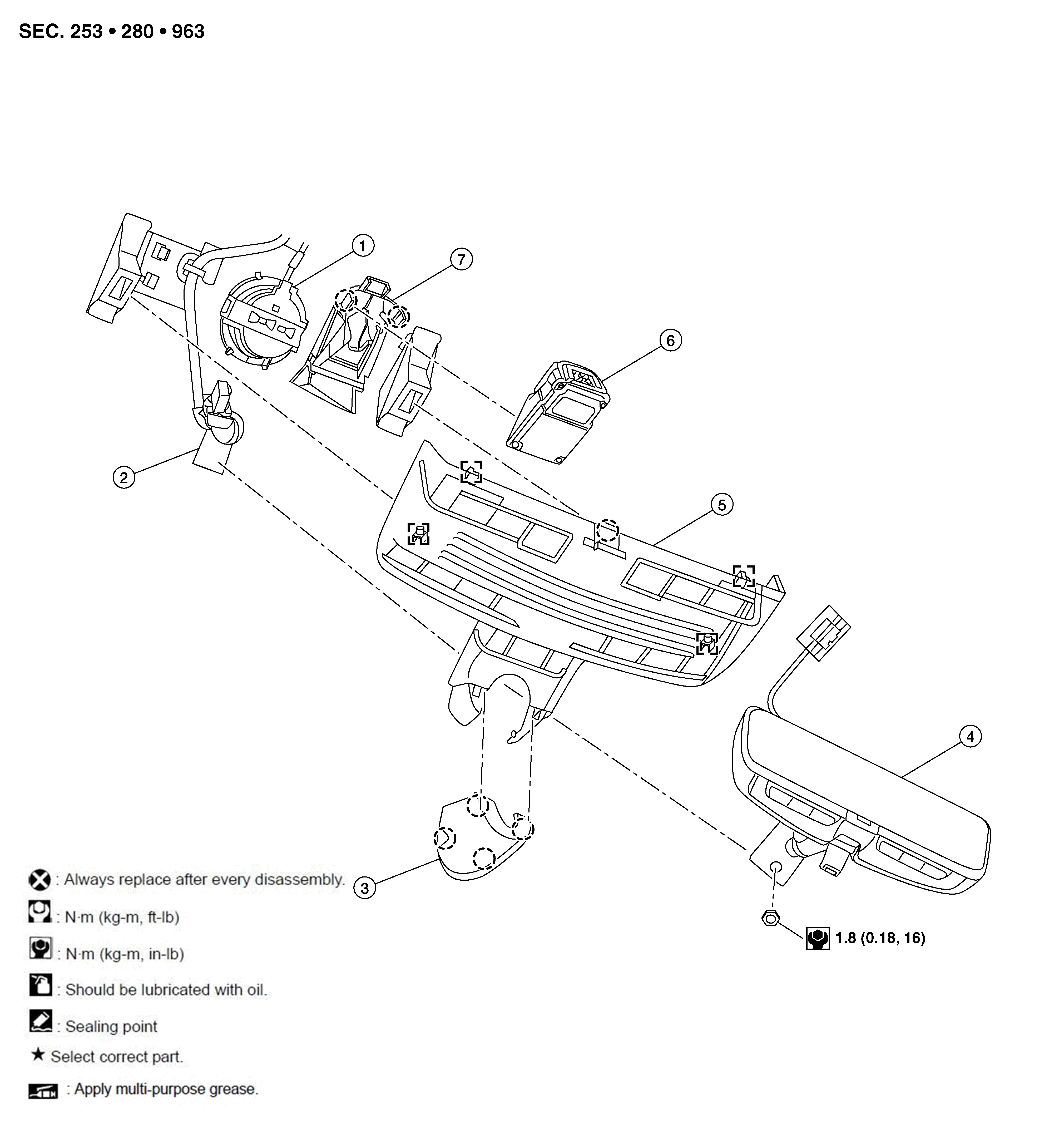

Fig 1: Front Camera Unit With Torque Specifications
GNSDB38753Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rain sensor

2.

Mirror base

3.

Inside mirror cover

4.

Inside mirror

5.

Rain sensor cover

6.

Front camera unit

7.

Front camera unit bracket

SYMBOL

Pawl

SYMBOL

Metal clip
