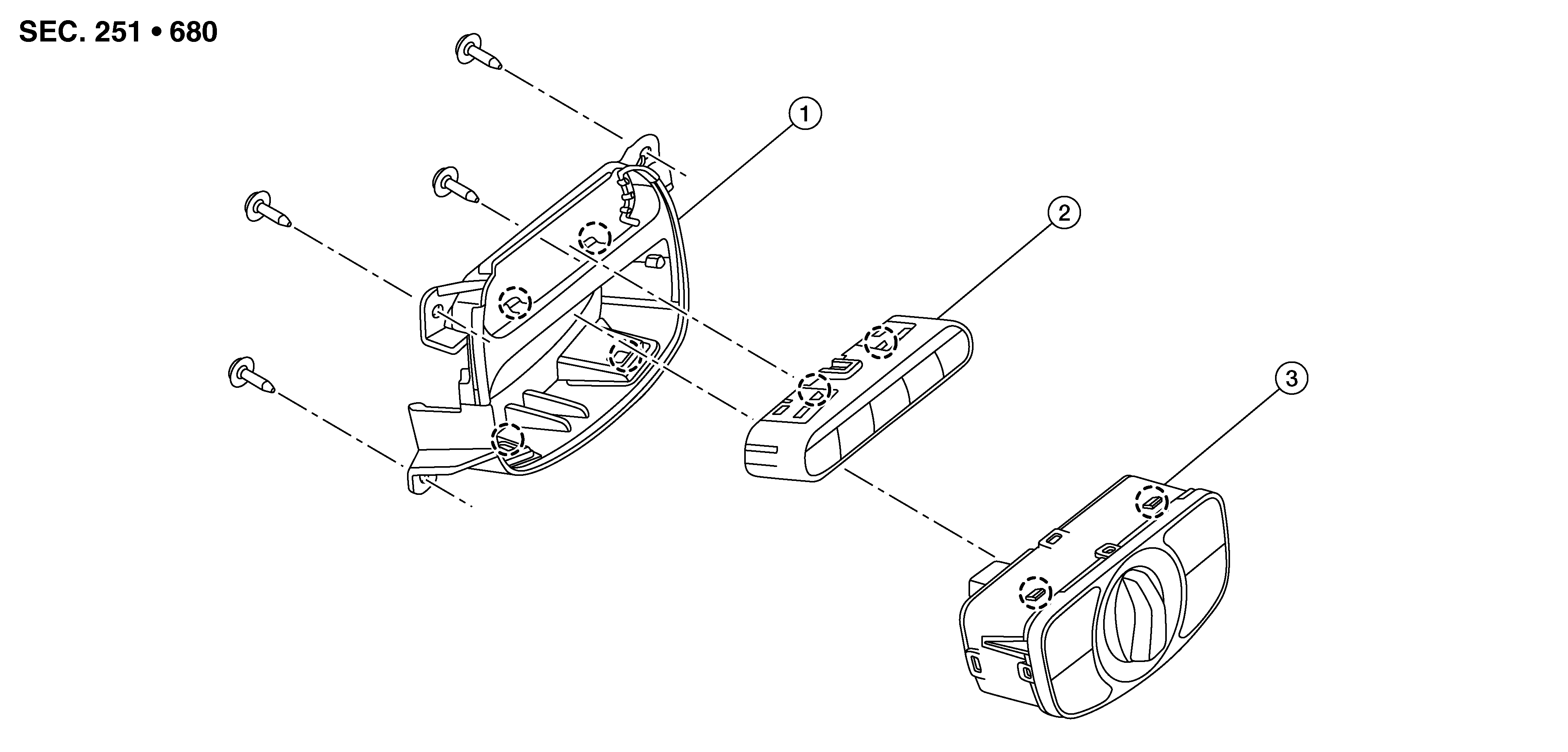

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Switch carrier
2.
ITS switch assembly
3.
Master light switch
Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
