Display And Warning (LDP/Blind Spot Intervention)

System Display

The LDP/Blind Spot Intervention system operates when ON is selected with the integral switch.

Condition	Action	Display on combination meter	Buzzer

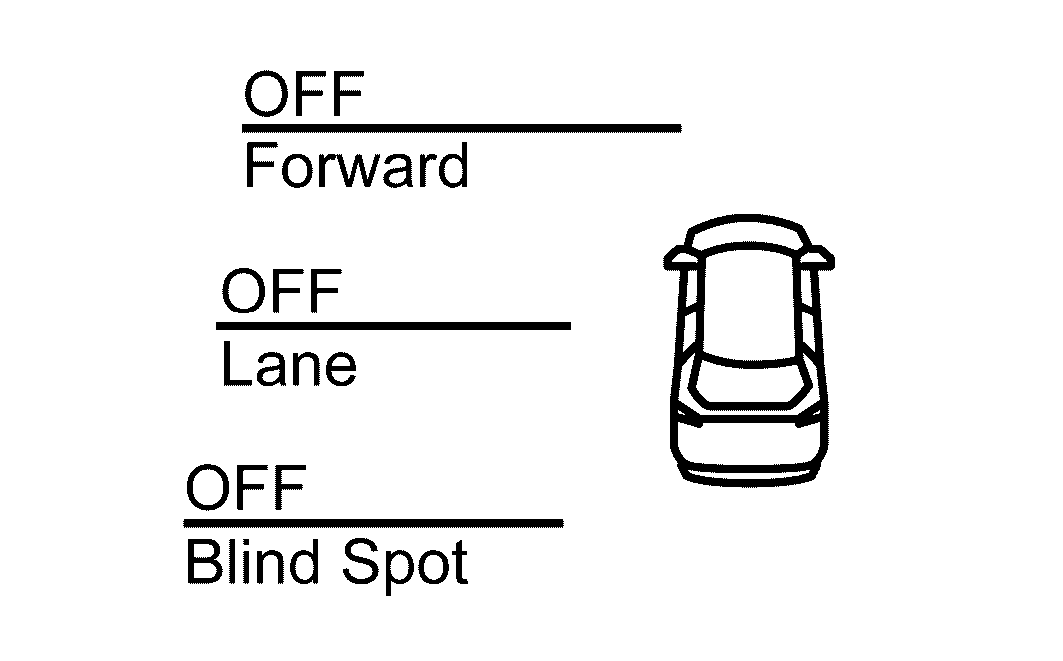

LDP/Blind Spot Intervention OFF (LDW/BSW are OFF)	--	Courtesy of NISSAN NORTH AMERICA, INC.	--

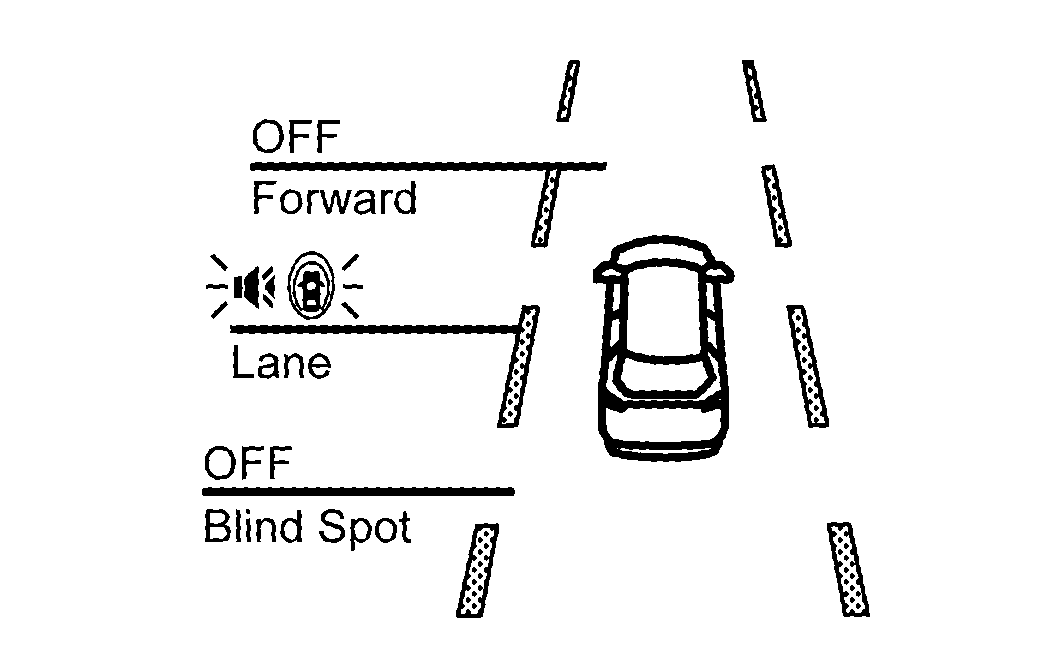

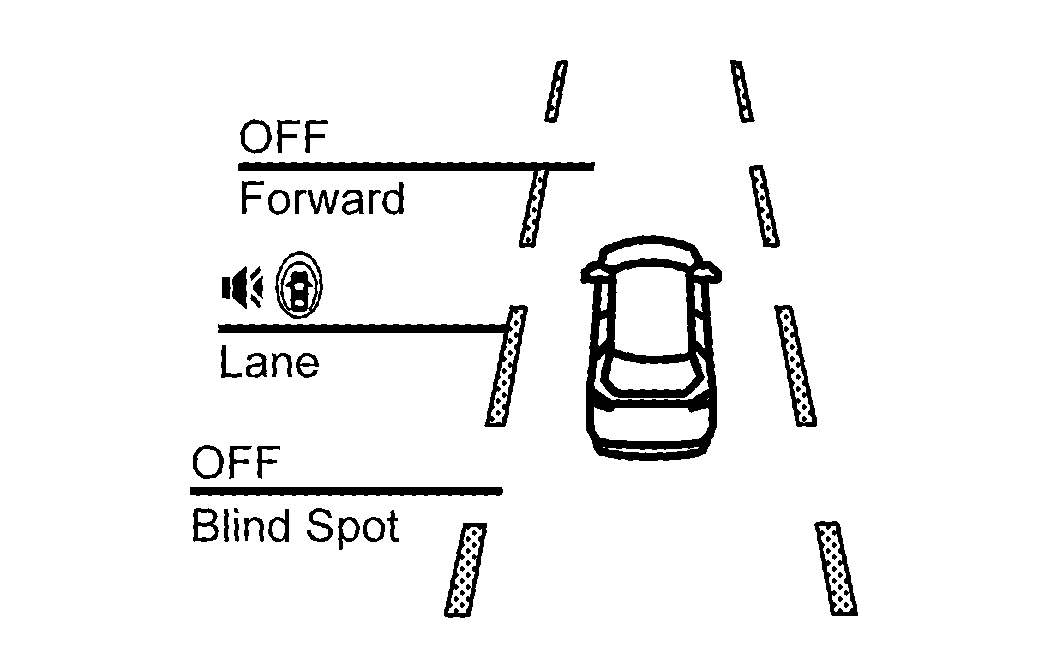

LDP/Blind Spot Intervention ON	System ON	LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.	--
		Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

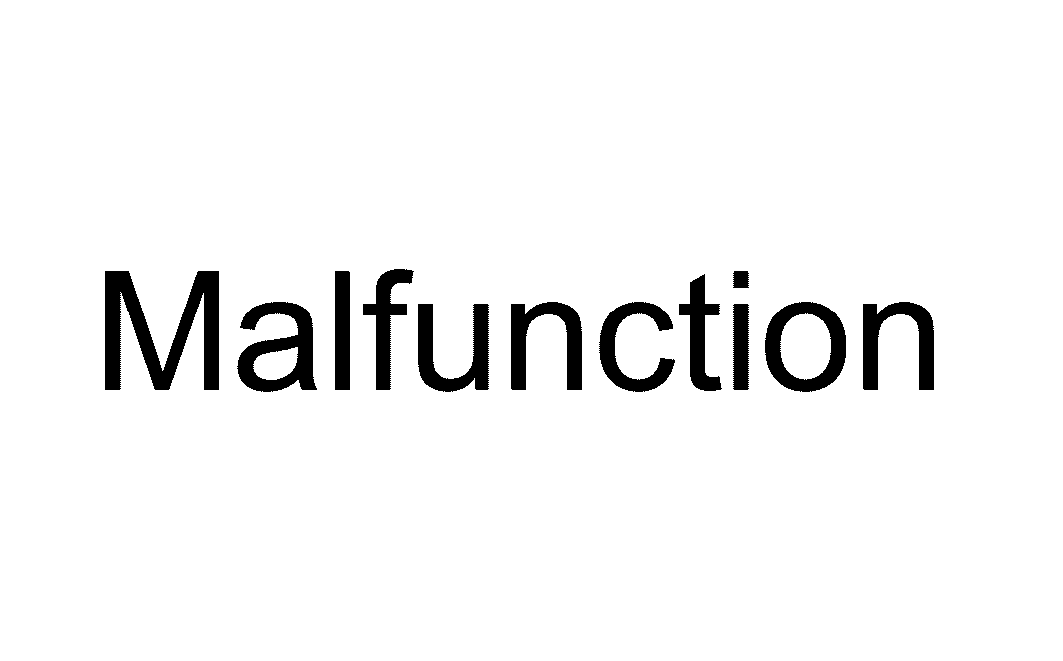

LDP is malfunction	The LDP system is automatically canceled.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		LDP system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
Blind Spot Intervention is malfunction	The Blind Spot Intervention system is automatically canceled.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Blind Spot Intervention system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

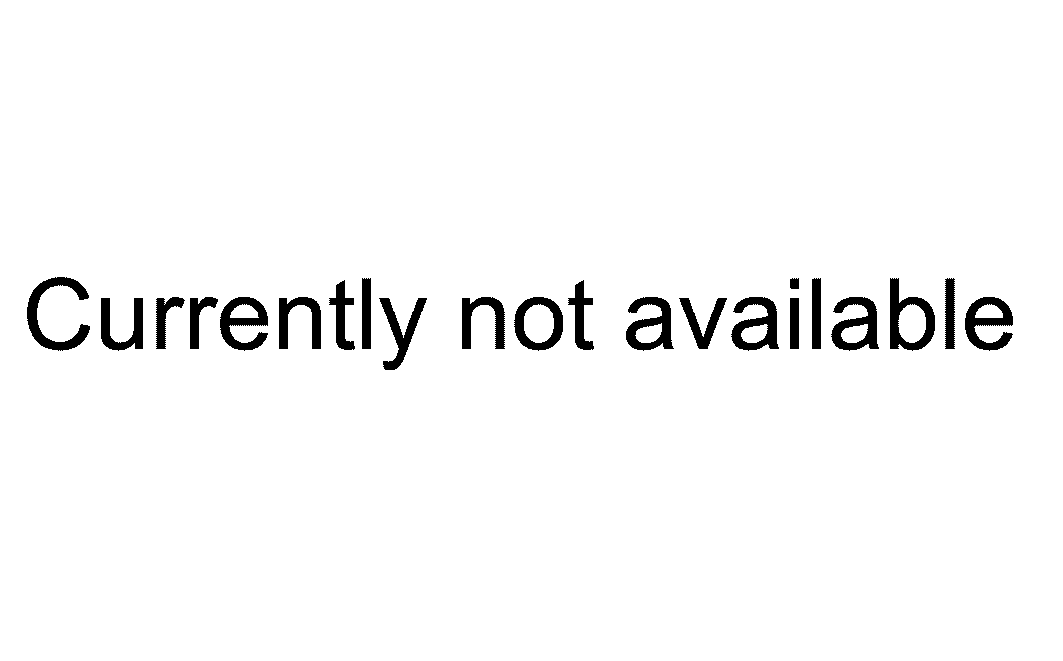

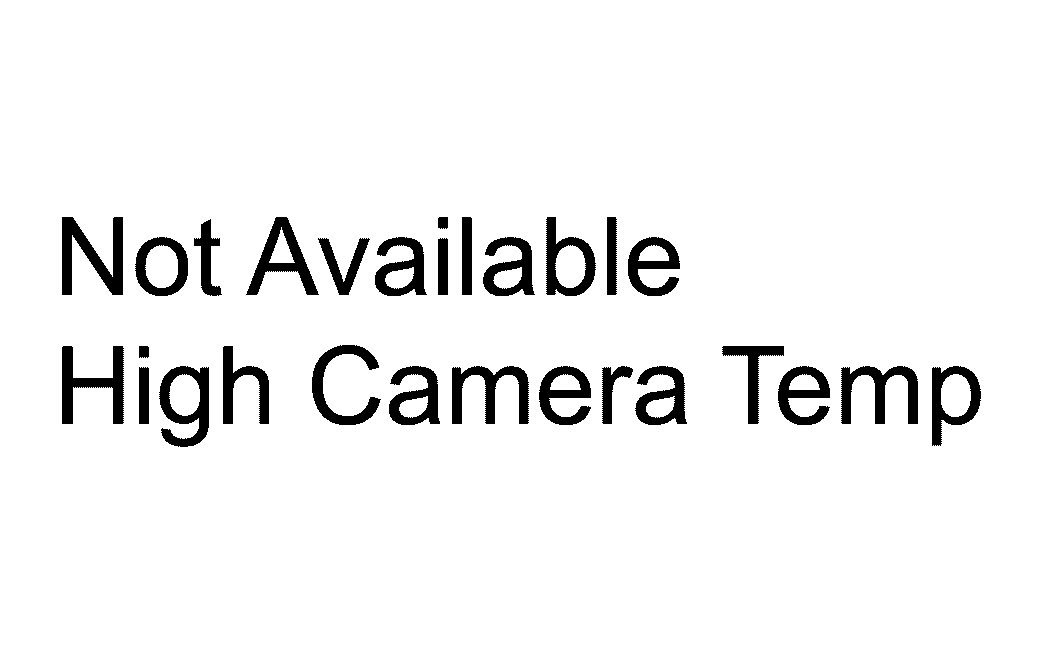

Front camera unit high temperature	The LDP/Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the warning system switch is turned OFF=>ON after the condition improves	LDP system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep

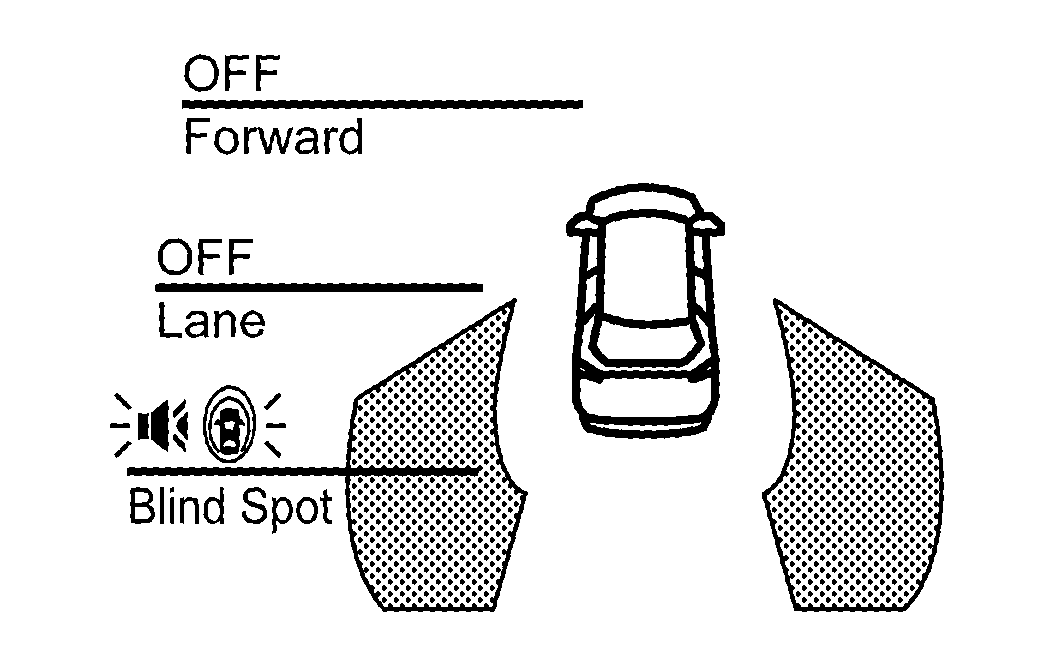

		Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.

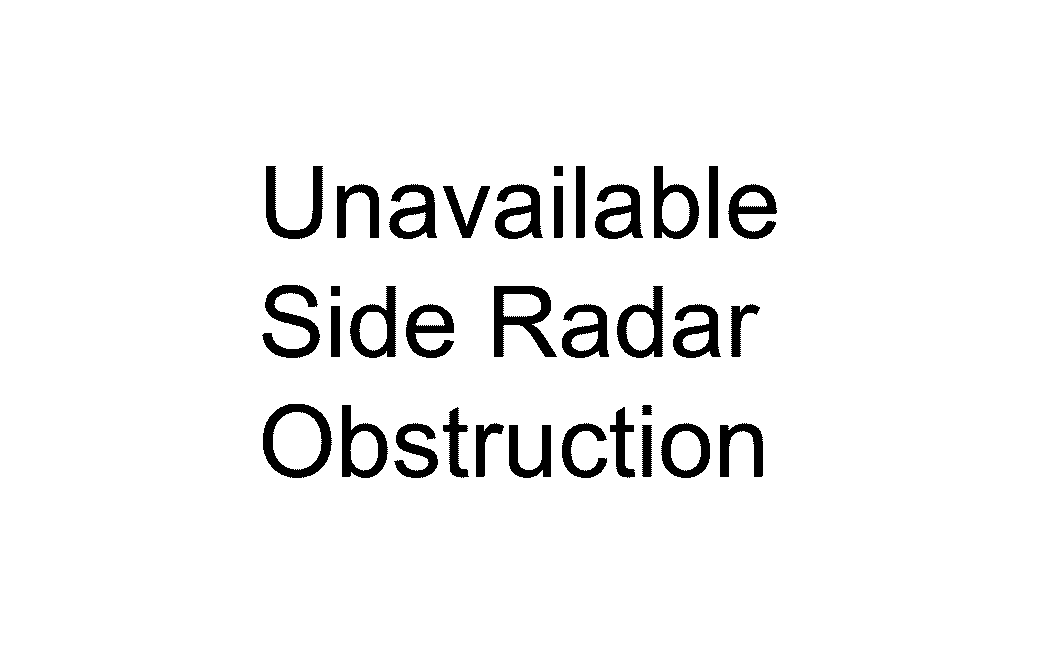

Dirt around the side radar	The Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the BSI system in the warning system switch is turned OFF=>ON after the condition improves	Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
When the VDC or ABS (including the TCS) operates When the VDC is turned OFF When the drive mode select switch is in SNOW position	The Blind Spot Intervention system is automatically canceled. NOTE: The system operates if the warning system switch is turned OFF=>ON after the condition improves	Blind Spot Intervention system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.

Warning Operation

LDP operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Turn signal condition	Status of vehicle close to lane marker	Yawing control	Display on information display	Display on Head Up Display	Steering vibration
Less than Approx. 60 km/h (37 MPH)	--	Close to lane marker	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF
				LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

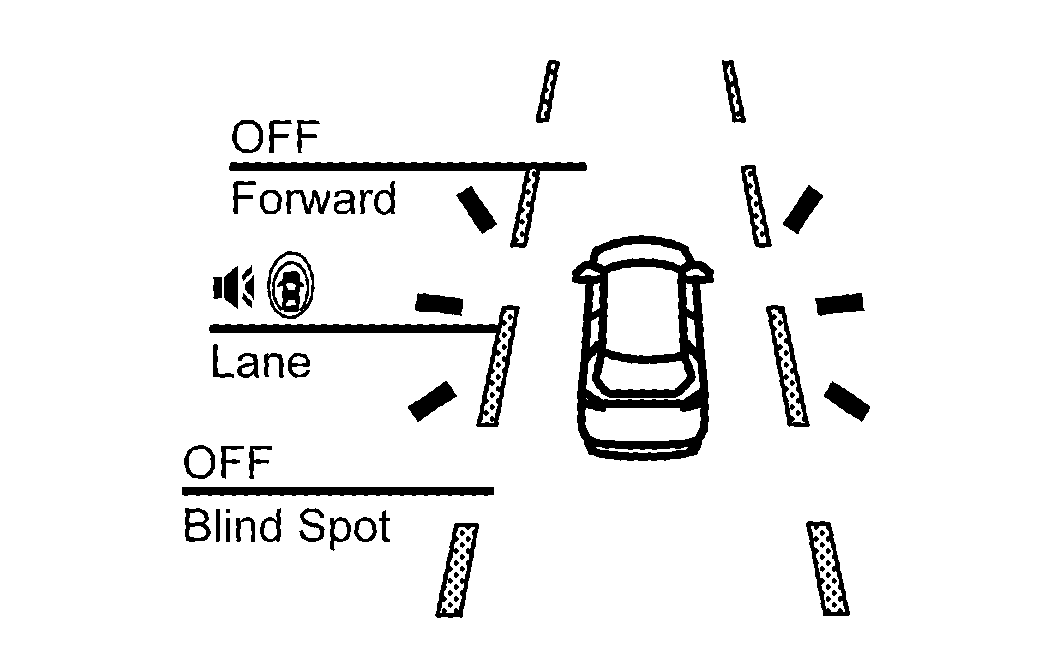

Approx. 60 km/h (37 MPH) or more	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker	ON	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	ON
				LDP system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
	Turn signal ON (Deviate side)	Close to lane marker	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	--	OFF
				LDP system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
	Turn signal OFF Turn signal ON (Opposite to the deviate side)	Close to lane marker with soft braking	OFF	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	--	ON
				LDP system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches approximately 50 km/h (32 mph). Refer to System Description .

Blind Spot Intervention operation

Vehicle condition/ Driver's operation			Action
Vehicle speed (Approx.) [km/h (MPH)]	Status of vehicle detection within detection area	Status of approach to adjacent lane	Indication on the Blind Spot Intervention indicator	Yaw control	Indication on the combination meter	Buzzer
Less than approx. 60 (37)	--	--	OFF	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
Approx. 60 (37) or more	Vehicle is not detected	--	OFF	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
	Vehicle is detected	Not approaching	ON	OFF	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
					Blind Spot Intervention system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

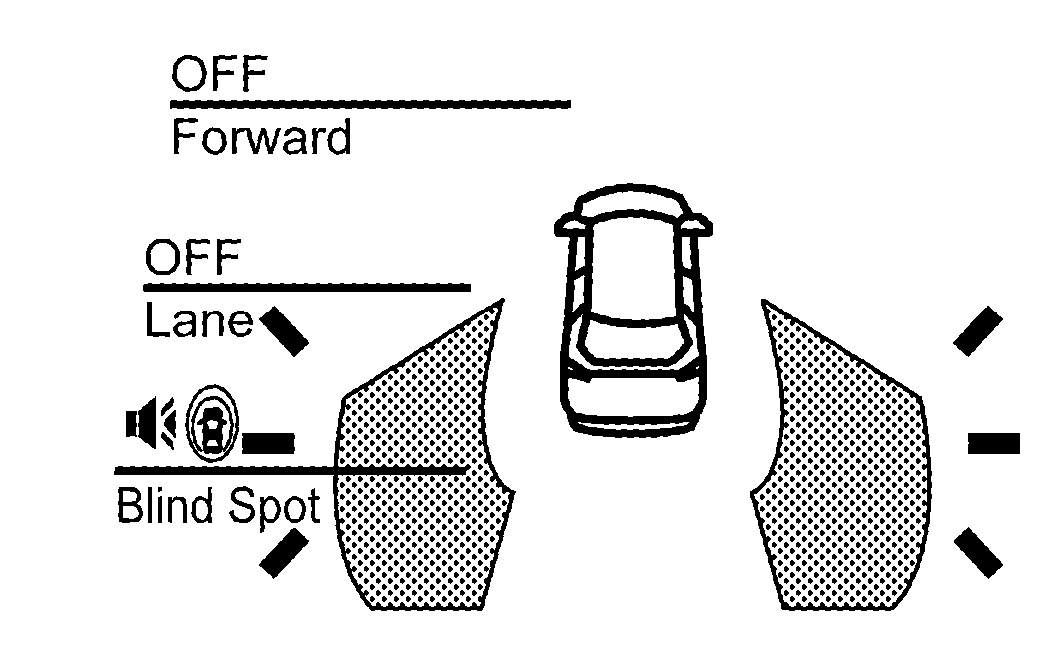

	Vehicle is detected	Approaching	Blink	ON	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
					Blind Spot Intervention system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Always Blind Spot Intervention system operates together with BSW system. Whenever Blind Spot Intervention system is turned ON in the integral switch, BSW system also be turned on even if the BSW system is turned off.
