System Display

LDP/Blind Spot Intervention

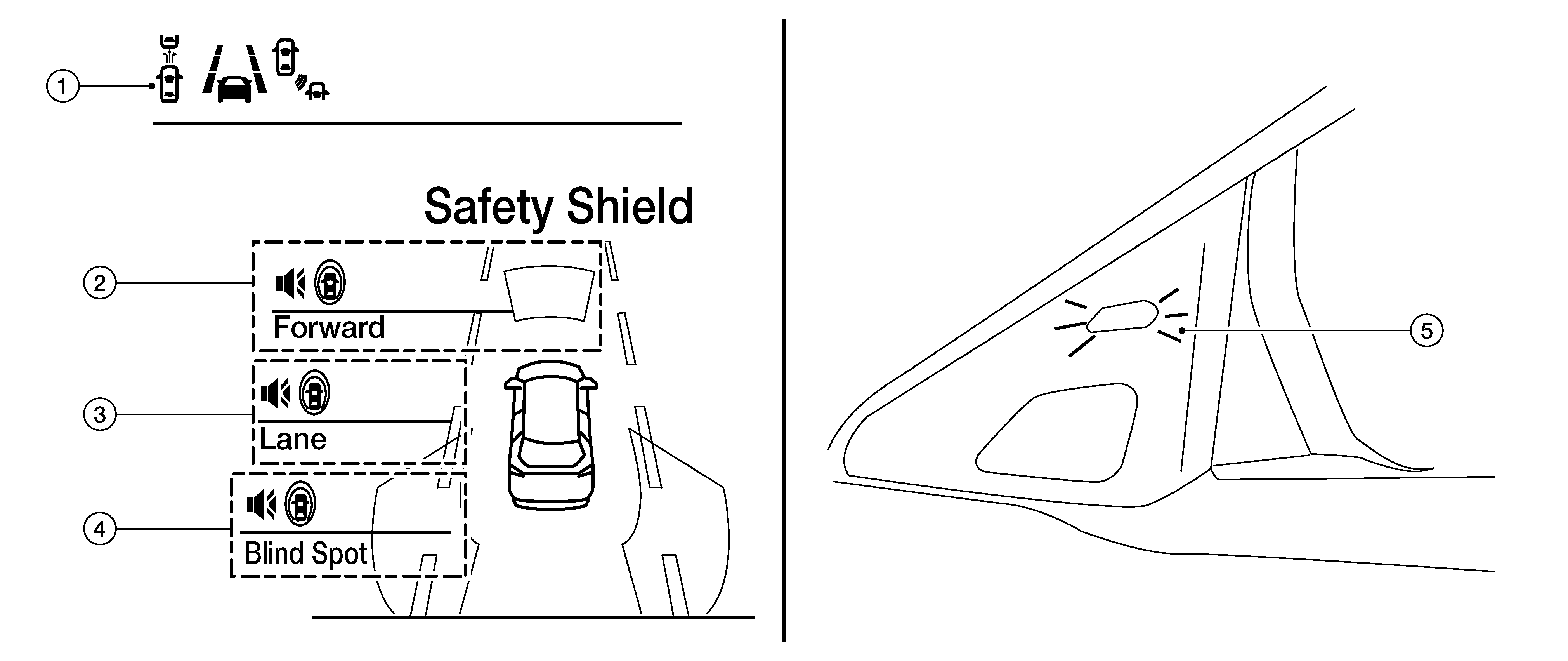

GNSDB39097Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

Warning systems indicator

Indicates that LDP/Blind Spot Intervention systems are ON

SYMBOL

Warning systems indicator "Forward" position icon

The item is indicated, but not used

SYMBOL

Warning systems indicator "Lane" position icon

Indicates that LDP systems are ON

SYMBOL

Warning systems indicator "Blind spot" position icon

Indicates that Blind Spot Intervention systems are ON

SYMBOL

Blind Spot Warning/Blind Spot Intervention indicator LH/RH
  • Illuminates when detect other vehicles beside vehicle in an adjacent lane
  • Blinks when Blind Spot Intervention system is warning to driver
