LDP/Blind Spot Intervention

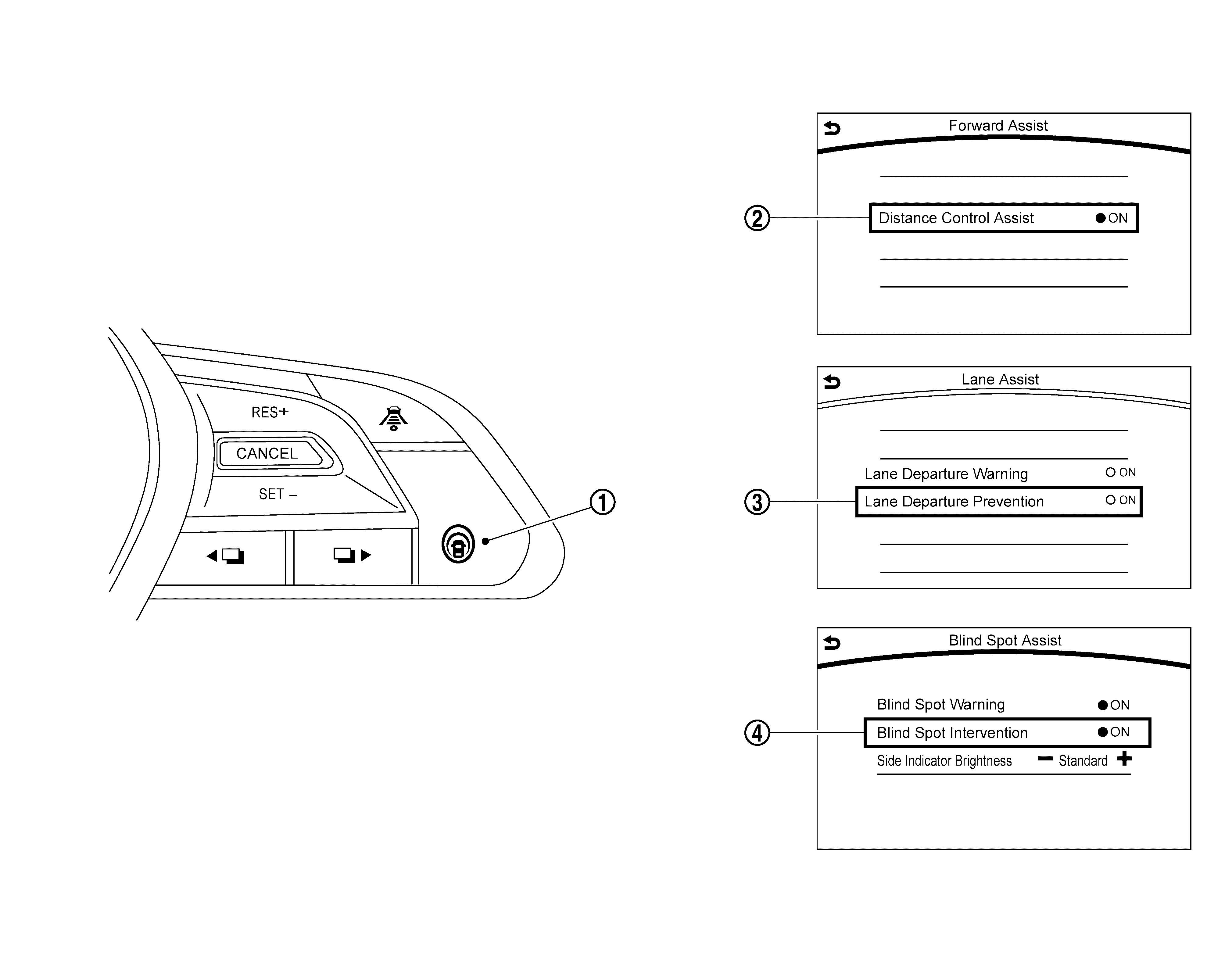

GNSDB37717Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

ProPIOT assist switch

(with ProPILOT Assist)

Turns LDP/Blind Spot Intervention system ON/OFF

(When the setting of system on the integral switch is ON)

SYMBOL

DCA system setting screen *

(Integral switch)

--

SYMBOL

LDP system setting screen

(Integral switch)

The setting of LDP system can be switched between ON and OFF

SYMBOL

Blind Spot Intervention system setting screen

(Integral switch)

The setting of Blind Spot Intervention system can be switched between ON and OFF

*: Not applicable
