Switch Name and Function: PFCW/LDW/BSW

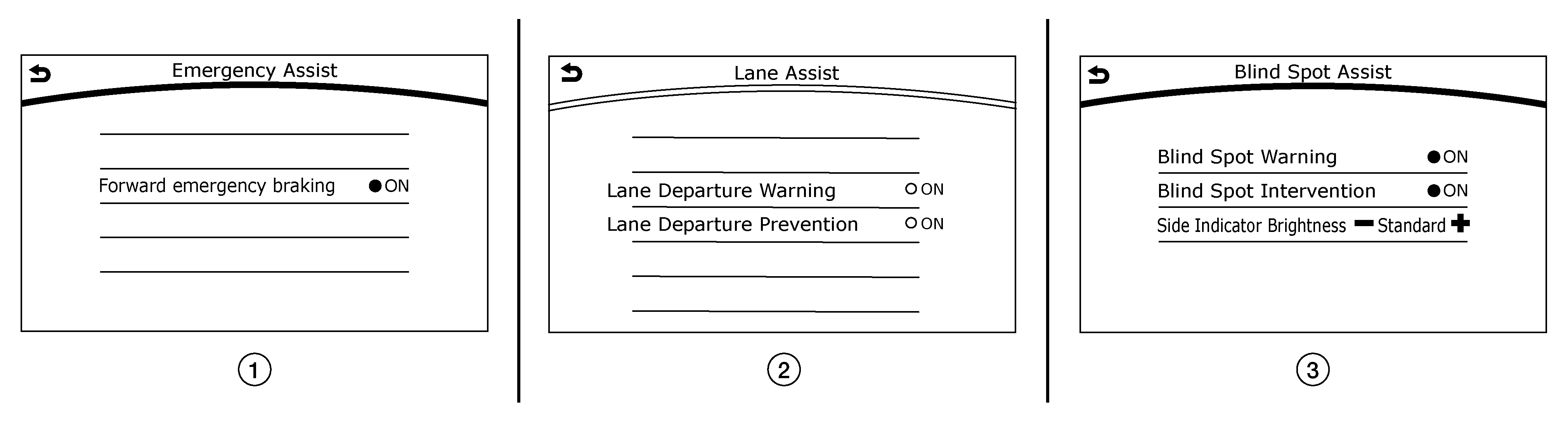

GNSDB38067Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

PFCW/FEB system setting screen

(Integral switch settings screen)

The setting of PFCW/FEB system can be switched between ON and OFF

SYMBOL

LDW system setting screen

(Integral switch settings screen)

The setting of LDW system can be switched between ON and OFF

SYMBOL

BSW system setting screen

(Integral switch settings screen)

The setting of BSW system can be switched between ON and OFF
