Exploded View

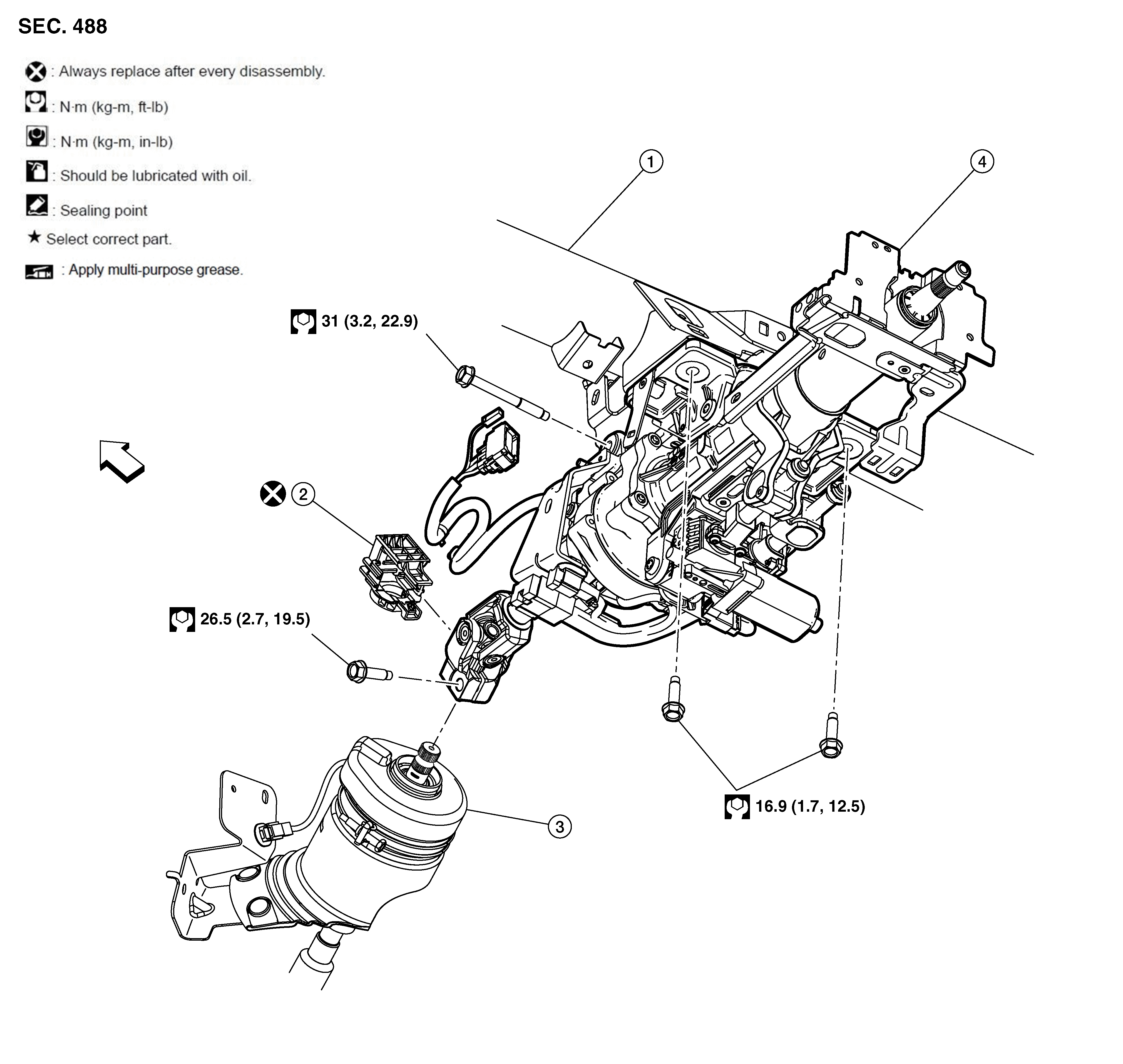

Fig 1: Steering Column With Torque Specifications
GNSDB38814Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering member

2.

Collar

3.

Steering clutch

4.

Steering column

SYMBOL

Front
