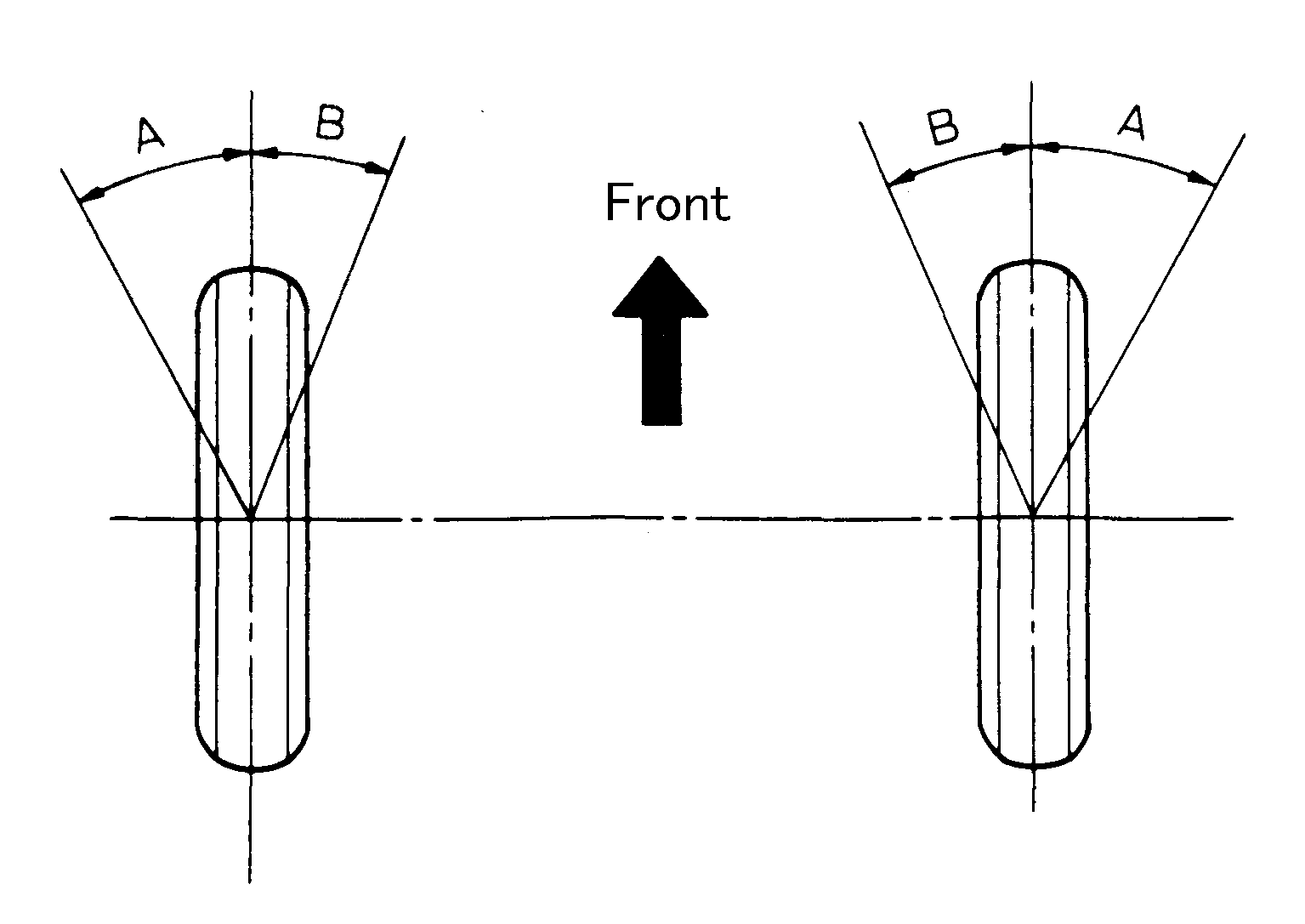

Steering Angle
Unit: degree minute (Decimal degree)
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Inner wheel angle (A)
|
Minimum
|
35 deg. 05' (35.1 deg.)
|
|
Nominal
|
38 deg. 05' (38.1 deg.)
|
|
Maximum
|
39 deg. 05' (39.1 deg.)
|
|
Outer wheel angle (B)
|
Nominal
|
32 deg. 30' (32.5 deg.)
|
