Exploded View

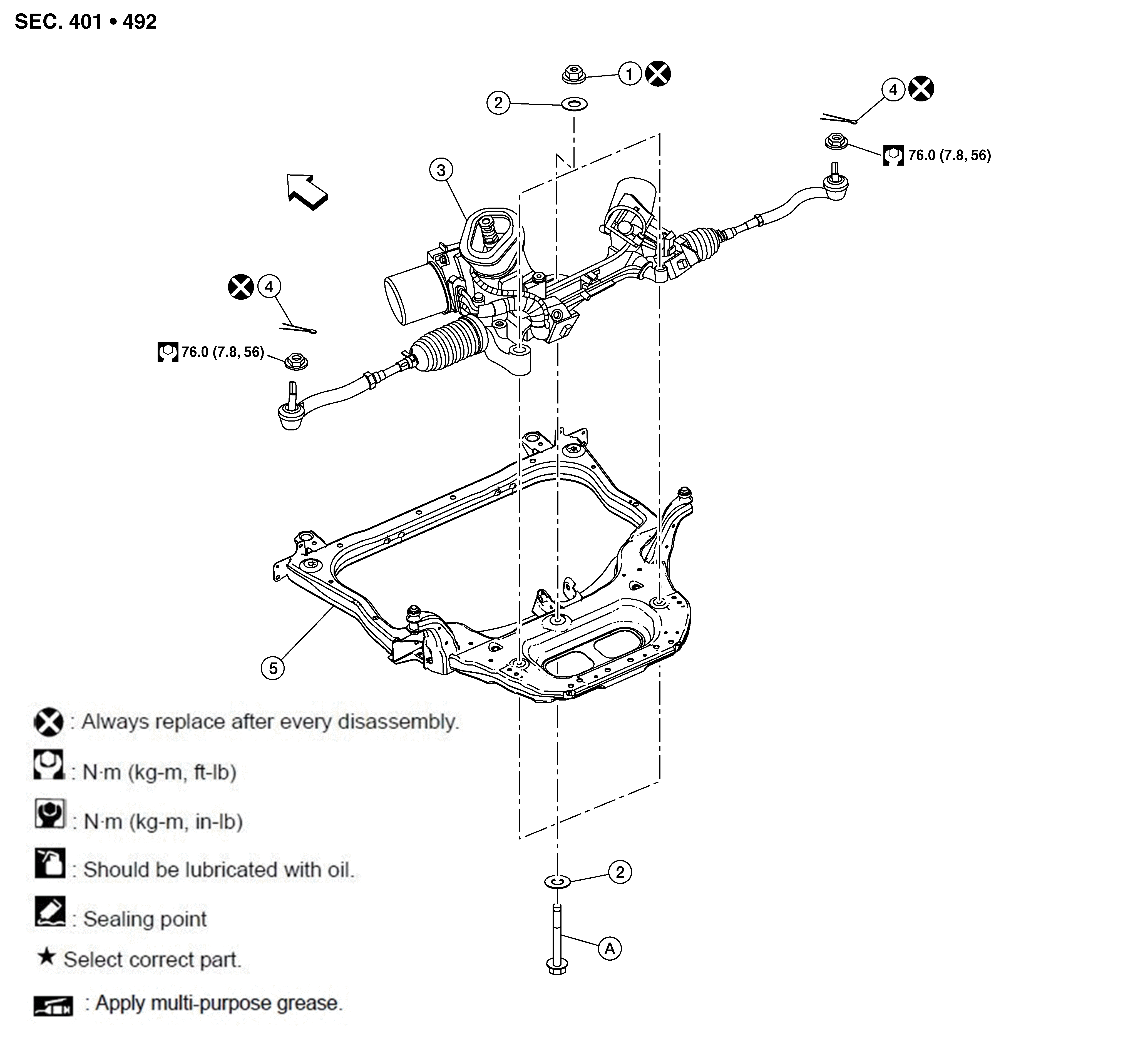

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB38894Courtesy of NISSAN NORTH AMERICA, INC.

1.

Nut

2.

Washer

3.

Steering gear

4.

Cotter pin

5.

Front suspension member

A.

Refer to Removal and Installation .

SYMBOL

Front
