Active Test
- Never perform "Active Test" while driving the vehicle.
- The "Active Test" cannot be performed when the following systems malfunction is displayed.
- FEB
- PFCW
- BSW
- BSI
- LDW
- LDP
- ProPILOT Assist
- RAB
- RCTA
- The "Active Test" cannot be performed when the FEB warning lamp is illuminated.
- Shift the selector lever to "P" position, and then perform the test.
|
Test item |
Description |
|
BRAKE ACTUATOR |
Activates the brake by an arbitrary operation |
|
ICC BUZZER |
Sounds a buzzer by arbitrarily operating ON/OFF |
|
ICC warning lamp |
The ICC/ProPILOT Assist display in combination meter can be illuminated by ON/OFF operations as necessary |
|
STOP LAMP |
The stop lamp can be illuminated |
|
LDP BUZZER |
Sounds a buzzer used for following systems by arbitrarily operating ON/OFF
|
|
LDP ON IND |
The LDP system display can be illuminated by ON/OFF operations as necessary |
|
LANE DEPARTURE W/L |
The LDW warning can be illuminated by ON/OFF operations as necessary |
|
BSW warning lamp |
The BSW malfunction can be illuminated by ON/OFF operations as necessary |
|
LDW ON indicator |
The LDW system display can be illuminated by ON/OFF operations as necessary |
|
LDP WARNING INDICATOR |
The LDP malfunction can be illuminated by ON/OFF operations as necessary |
|
LDW WARNING INDICATOR |
The LDW malfunction can be illuminated by ON/OFF operations as necessary |
|
BSW ON INDICATOR |
The BSW system display can be illuminated by ON/OFF operations as necessary |
|
Electric parking brake activation |
NOTE:
The item is displayed, but it is not used
|
|
Steering reaction force activation |
NOTE:
The item is displayed, but it is not used
|
|
STRG vibration |
Operate a steering vibration motor used for following systems by arbitrarily operating ON/OFF Lane Departure Warning (LDW)
|
|
Release hand warning |
NOTE:
The item is displayed, but it is not used
|
|
BSW indicator LH |
The BSW indicator LH can be operated as necessary |
|
BSW indicator RH |
The BSW indicator RH can be operated as necessary |
|
RAB warning lamp (operation) |
NOTE:
The item is displayed, but it is not used
|
|
RAB warning lamp (malfunction) |
NOTE:
The item is displayed, but it is not used
|

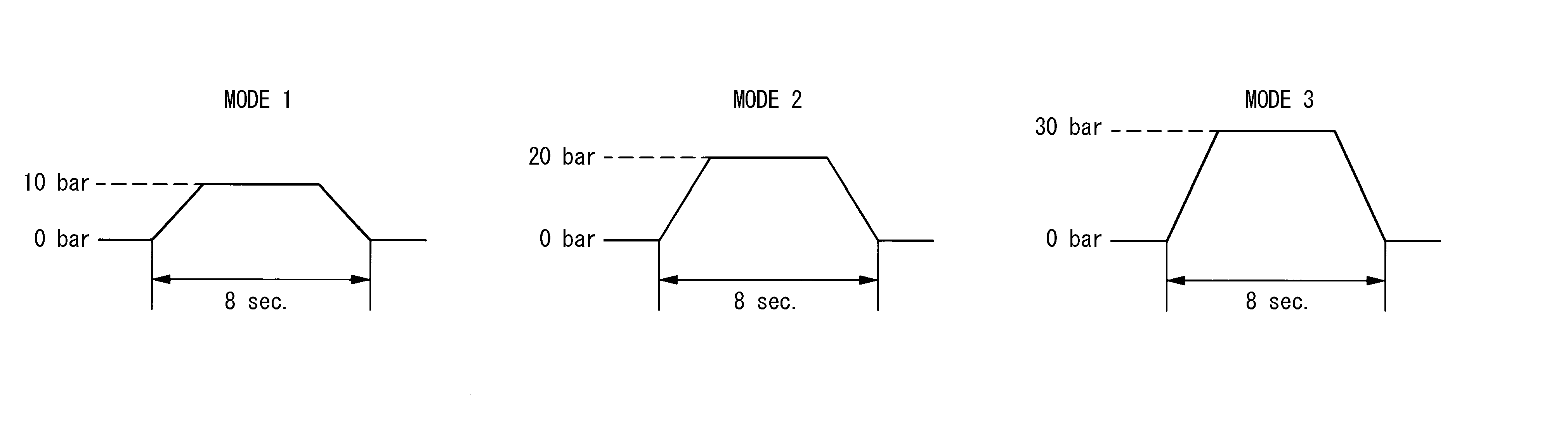

BRAKE ACTUATOR
|
Test item |
Operation |
Description |
"Currenc status" value |
|
BRAKE ACTUATOR |
MODE 1 |
Transmits the brake fluid pressure control signal to the ABS actuator and electric unit (control unit) via chassis control module |
10 bar |
|
MODE 2 |
20 bar |
||
|
MODE 3 |
30 bar |
||
|
Test start |
Starts the tests of "MODE 1", "MODE 2" and "MODE 3" |
-- |
|
|
Reset |
Stops transmitting the brake fluid pressure control signal to end the test |
-- |
|
|
End |
Returns to the "SELECT TEST ITEM" screen |
-- |
ICC BUZZER
|
Test item |
Operation |
Description |
Operation sound |
|
ICC BUZZER |
MODE 1 |
Transmits the driver assistance buzzer signal to the driver assistance buzzer |
Intermittent beep sound |
|
MODE 2 |
Intermittent beep sound |
||
|
MODE 3 |
Intermittent beep sound |
||
|
Test start |
Starts the tests of "MODE 1", "MODE 2" or "MODE 3" |
-- |
|
|
Reset |
Stops transmitting the buzzer output signal to end the test |
-- |
|
|
End |
Returns to the "SELECT TEST ITEM" screen |
-- |
ICC warning lamp
|
Test item |
Operation |
Description |
ICC/ProPILOT Assist system warning |
|
ICC warning lamp |
Off |
Stops sending the following signals to exit from the test
|
OFF |
|
On |
Transmits the following signals to the combination meter via CAN communication
|
ON |
STOP LAMP
|
Test item |
Operation |
Description |
Stop lamp |
|
STOP LAMP |
Off |
Stops transmitting the stop lamp switch signal to end the test |
OFF |
|
On |
Transmits the stop lamp switch signal |
ON |
LANE DEPARTURE W/L
|
Test item |
Operation |
Description |
LDW system display (Yellow) |
|
LANE DEPARTURE W/L |
Off |
Stops transmitting the meter display signal to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
BSW warning lamp
|
Test item |
Operation |
Description |
BSW malfunction (Yellow) |
|
BSW warning lamp |
Off |
Stops transmitting the meter display signal to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
LDW ON indicator
|
Test item |
Operation |
Description |
LDW system display (White) |
|
LDW ON indicator |
Off |
Stops transmitting the meter display signal to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
LDW WARNING INDICATOR
|
Test item |
Operation |
Description |
LDW malfunction (Yellow) |
|
LDW WARNING INDICATOR |
Off |
Stops transmitting the meter display signal to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
LDP BUZZER
|
Test item |
Operation |
Description |
Driver assistance buzzer |
|
LDP BUZZER |
Off |
Stops transmitting the driver assistance buzzer signal below to end the test |
-- |
|
On |
Transmits the driver assistance buzzer signal to the driver assistance buzzer |
ON |
LDP ON IND
|
Test item |
Operation |
Description |
LDP system display (Green) |
|
LDP ON IND |
Off |
Stops transmitting the meter display signal below to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
LDP WARNING INDICATOR
|
Test item |
Operation |
Description |
LDP malfunction (Yellow) |
|
LDP WARNING INDICATOR |
Off |
Stops transmitting the meter display signal below to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
BSW ON INDICATOR
|
Test item |
Operation |
Description |
BSW system display (Yellow) |
|
BSW ON INDICATOR |
Off |
Stops transmitting the meter display signal to end the test |
-- |
|
On |
Transmits the meter display signal to the combination meter via CAN communication |
ON |
STRG vibration
|
Test item |
Operation |
Description |
BSW system display (Yellow) |
|
STRG vibration |
Off |
Stops transmitting the motor operation signal to end the test |
-- |
|
On |
Transmits the motor operation signal to the steering vibration motor |
ON |
|
|
End |
Returns to the "SELECT TEST ITEM" screen |
-- |
BSW indicator LH
|
Test item |
Operation |
Description |
BSW system display (Yellow) |
|
BSW indicator LH |
Off |
Stops the BSW indicator signal to end the test |
-- |
|
On |
Transmits the BSW indicator signal to illuminate the BSW indicator LH |
ON |
BSW indicator RH
|
Test item |
Operation |
Description |
BSW system display (Yellow) |
|
BSW indicator RH |
Off |
Stops the BSW indicator signal to end the test |
-- |
|
On |
Transmits the BSW indicator signal to illuminate the BSW indicator RH |
ON |
