NATS Antenna Amp.

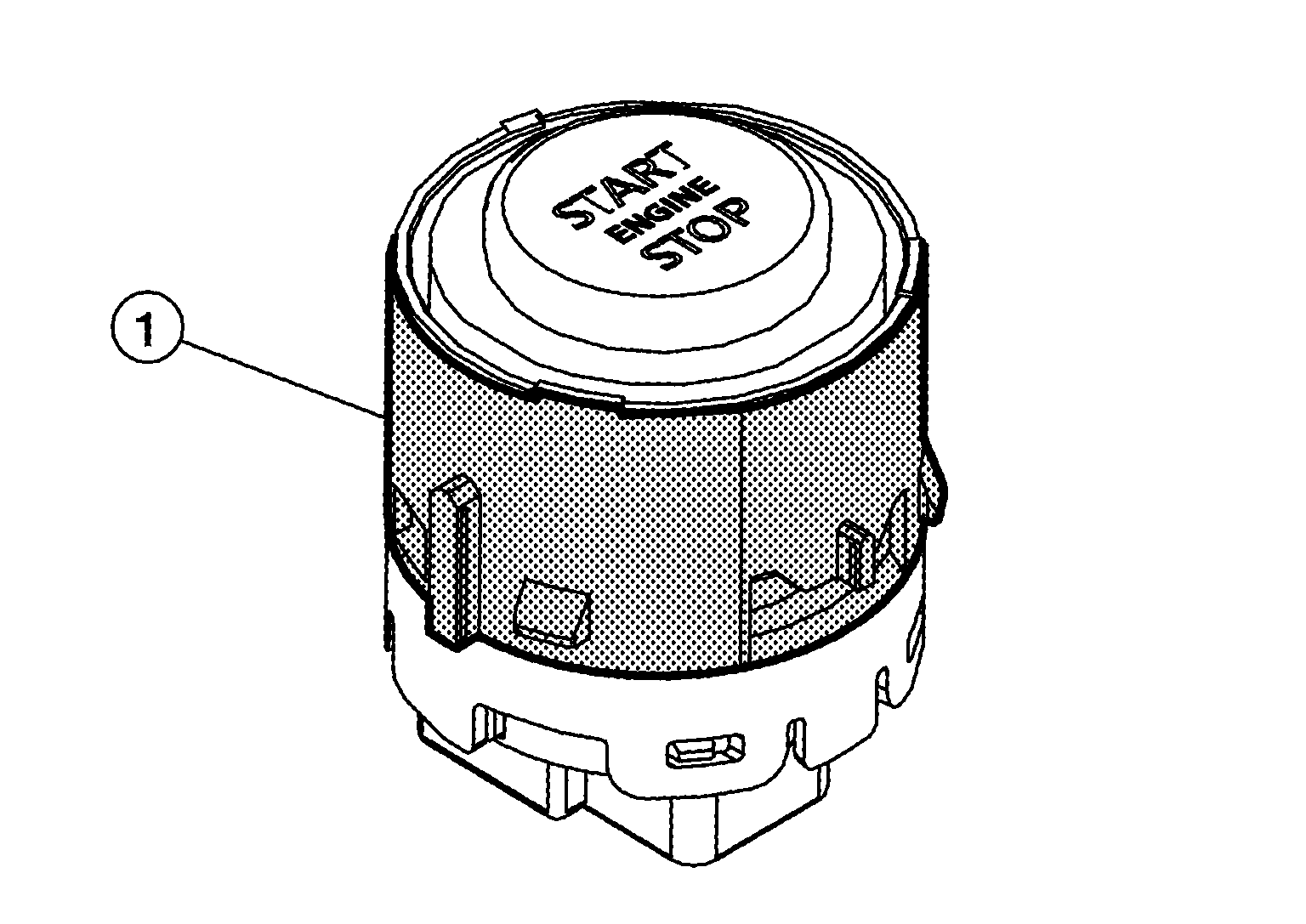

The ID verification is performed between BCM and transponder integrated into Intelligent Key via NATS antenna amp. (1) when Intelligent Key backside is contacted to push-button ignition switch in case that Intelligent Key battery is discharged. If the ID verification result is OK, the operation of ignition switch is available.
