Physical Values
MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH
|
Terminal No. (W color) |
Description |
Condition |
Voltage (Approx.) |
|||
|
+ |
- |
Signal name |
Input/Output |
|||
|
3 (V) |
Ground |
Encoder power supply |
Output |
When push-button ignition switch ON or power window timer operates |
Battery voltage |
|
|
4 (R) |
Ground |
Battery power supply |
Input |
-- |
Battery voltage |
|
|
5 (G) |
Ground |
Front power window motor LH DOWN signal |
Output |
When front LH switch in Main power window and door lock/unlock switch is Operated DOWN |
Battery voltage |
|
|
6 (L) |
Ground |
Front power window motor LH UP signal |
Output |
When front LH switch in Main power window and door lock/unlock switch is Operated UP |
Battery voltage |
|
|
7 (B) |
Ground |
Ground |
-- |
-- |
0 V |
|
|
9 (BR) |
Ground |
Retained power signal |
Input |
IGN SW ON |
Battery voltage |
|
|
Within 45 second after push-button ignition switch is turned to OFF |
Battery voltage |
|||||
|
When LH side or RH side door is opened during retained power operation |
0 V |
|||||
|
10 (B) |
Ground |
Encoder ground |
-- |
-- |
0 V |
|
|

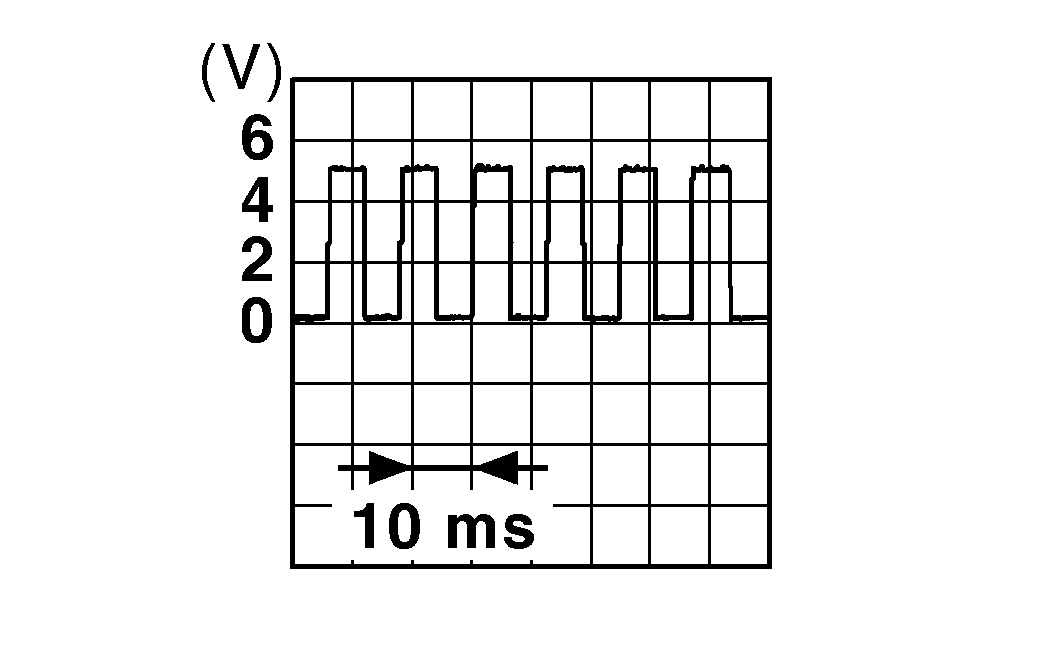

11 (GR) |
Ground |
Encoder pulse signal 1 |
Input |
When power window motor operates |
||
|
12 (BR) |
Ground |
Encoder pulse signal 2 |
Input |
When power window motor operates |
||
|

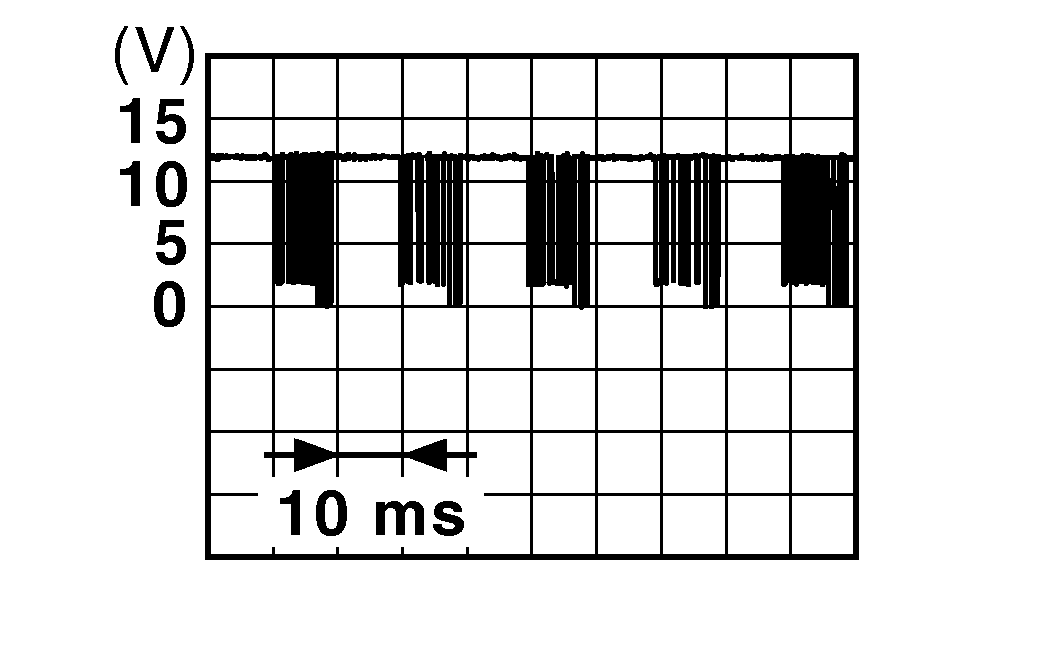

13 (V) |
Ground |
Power window serial link |
Input/Output |
IGN SW ON or power window timer operating |
||
|
15 (P) |
Ground |
Main power window and door lock/unlock switch lock signal |
Input |
Main power window and door lock/unlock switch (door lock/unlock switch) |
Lock |
Battery voltage |
|
Unlock |
0 V |
|||||
|
16 (SB) |
Ground |
Main power window and door lock/unlock switch unlock signal |
Input |
Main power window and door lock/unlock switch (door lock/unlock switch) |
Unlock |
Battery voltage |
|
Lock |
0 V |
|||||
