Home
>>
Infiniti
>>
2023
>>
QX55 Essential
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Removal And Installation
>>
Horn
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

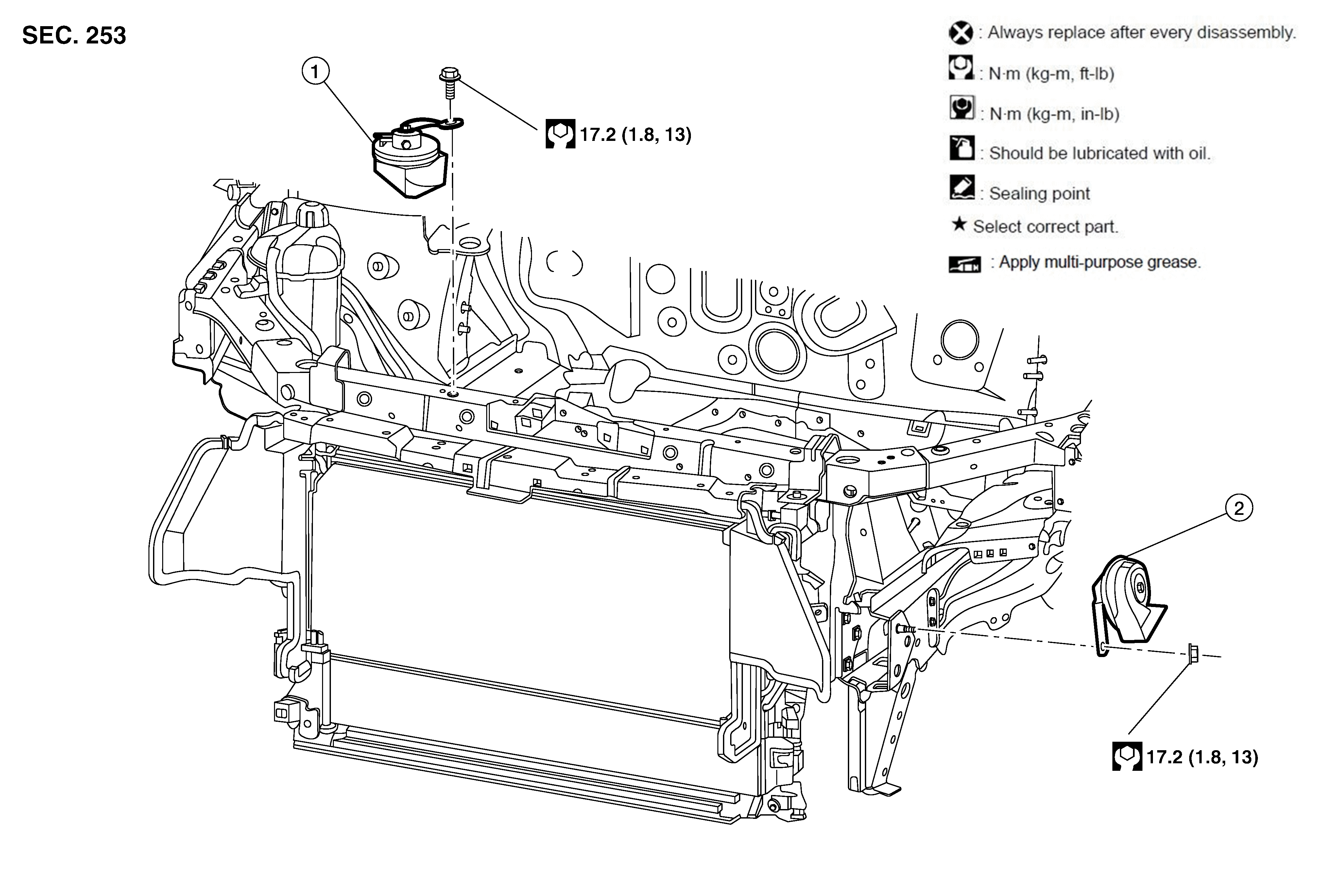

Fig 1: Horn With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Horn (LOW)
2.
Horn (HIGH)
Courtesy of NISSAN NORTH AMERICA, INC.
