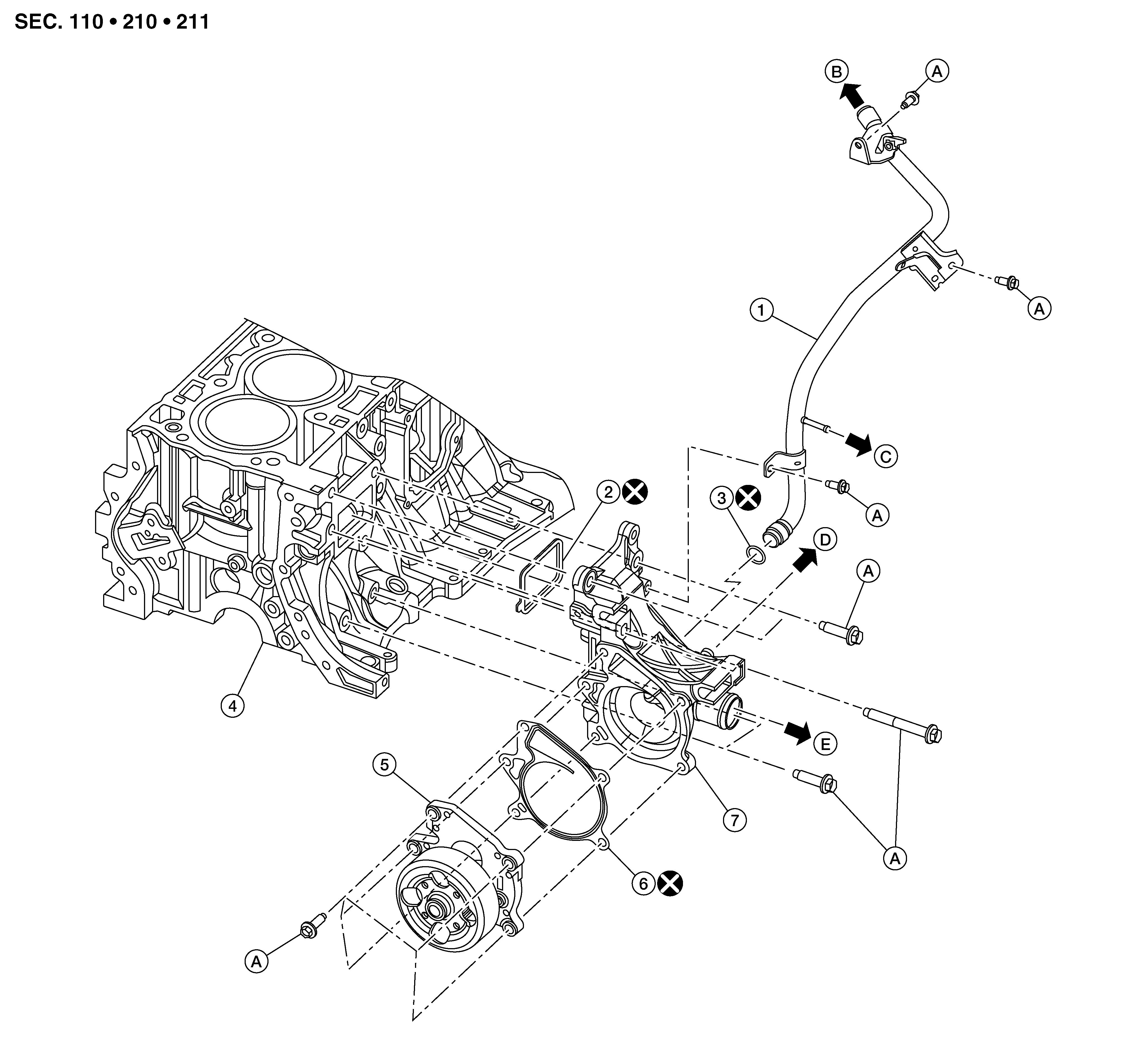

Exploded View

1.

Water inlet pipe

2.

Water pump housing gasket

3.

O-ring

4.

Cylinder block

5.

Water pump

6.

Water pump gasket

7.

Water pump housing

A.

Refer to Removal and Installation -- Water Pump Housing .

B.

To heater core. Refer to Exploded View .

C.

To turbocharger water outlet hose B. Refer to Exploded View .

D.

To water hose. Refer to Exploded View .

E.

To radiator hose (lower). Refer to Exploded View .
