Exploded View

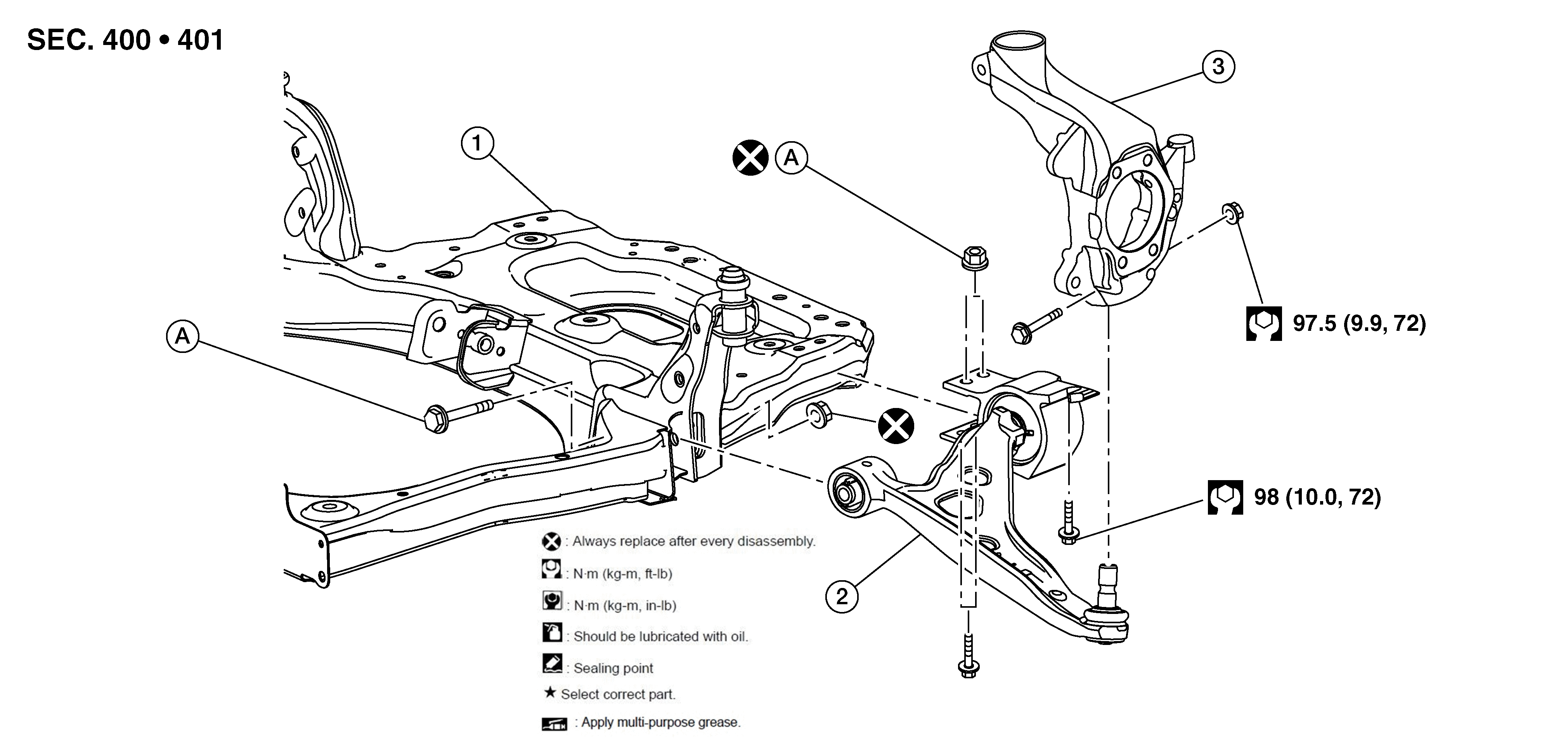

Fig 1: Transverse Link With Torque Specifications
GNSDB38083Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front suspension member

2.

Transverse link

3.

Steering knuckle

A.

Refer to Removal and Installation .
