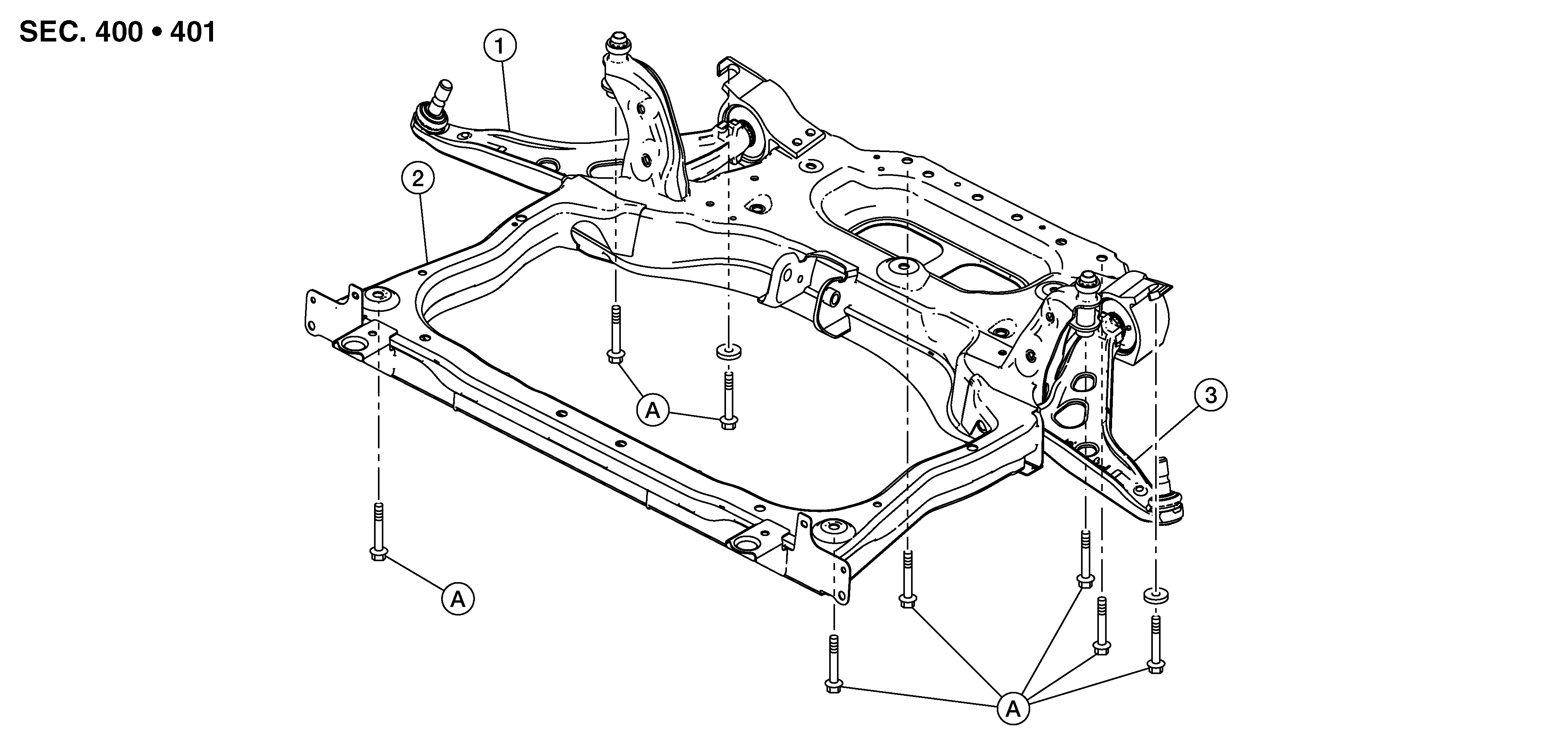

Exploded View

GNSDB38157Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transverse link (RH)

2.

Front suspension member

3.

Transverse link (LH)

A.

Refer to Removal and Installation .
