Spring Lock

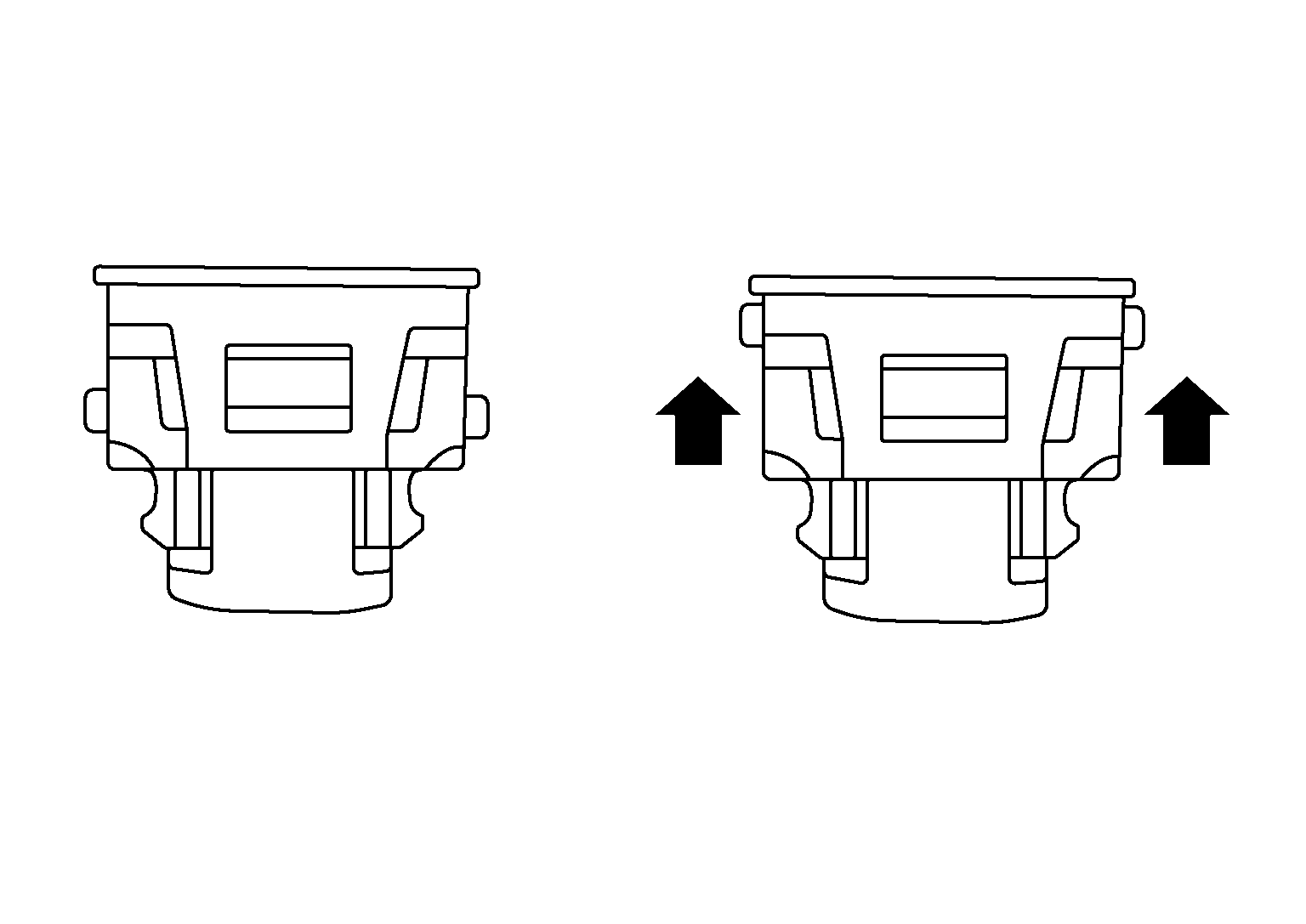

For removal of harness connector, lift tabs to release the lock and remove the harness connector.

For installing the harness connector, align the connector to the connector housing, then press firmly on the connector until the locking tabs are engaged.

GNSDB19122Courtesy of NISSAN NORTH AMERICA, INC.
