Removal and Installation

REMOVAL

Remove front door finisher (RH). Refer to Removal and Installation .

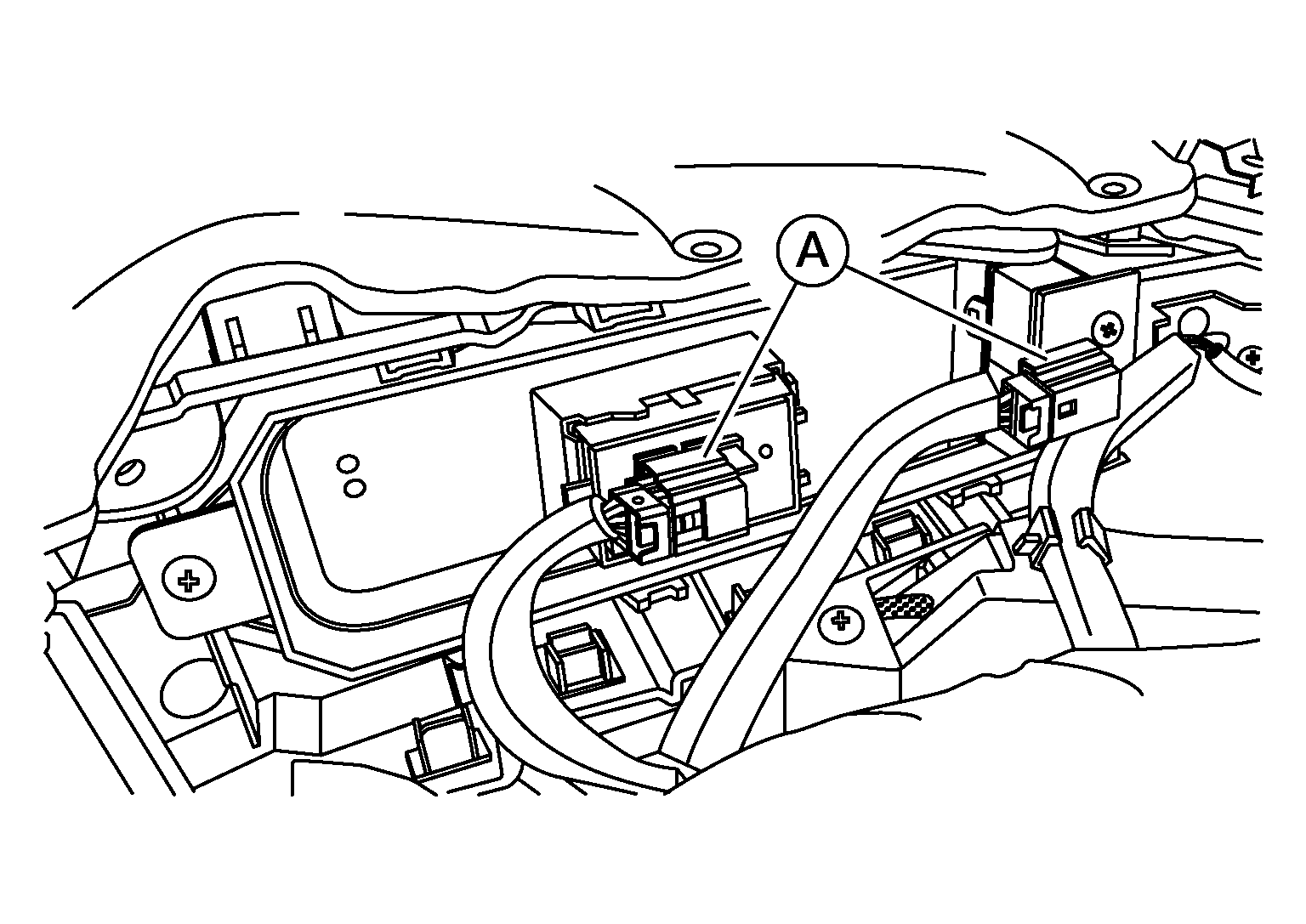

Disconnect harness connectors (A) from the front power window switch RH.

Courtesy of NISSAN

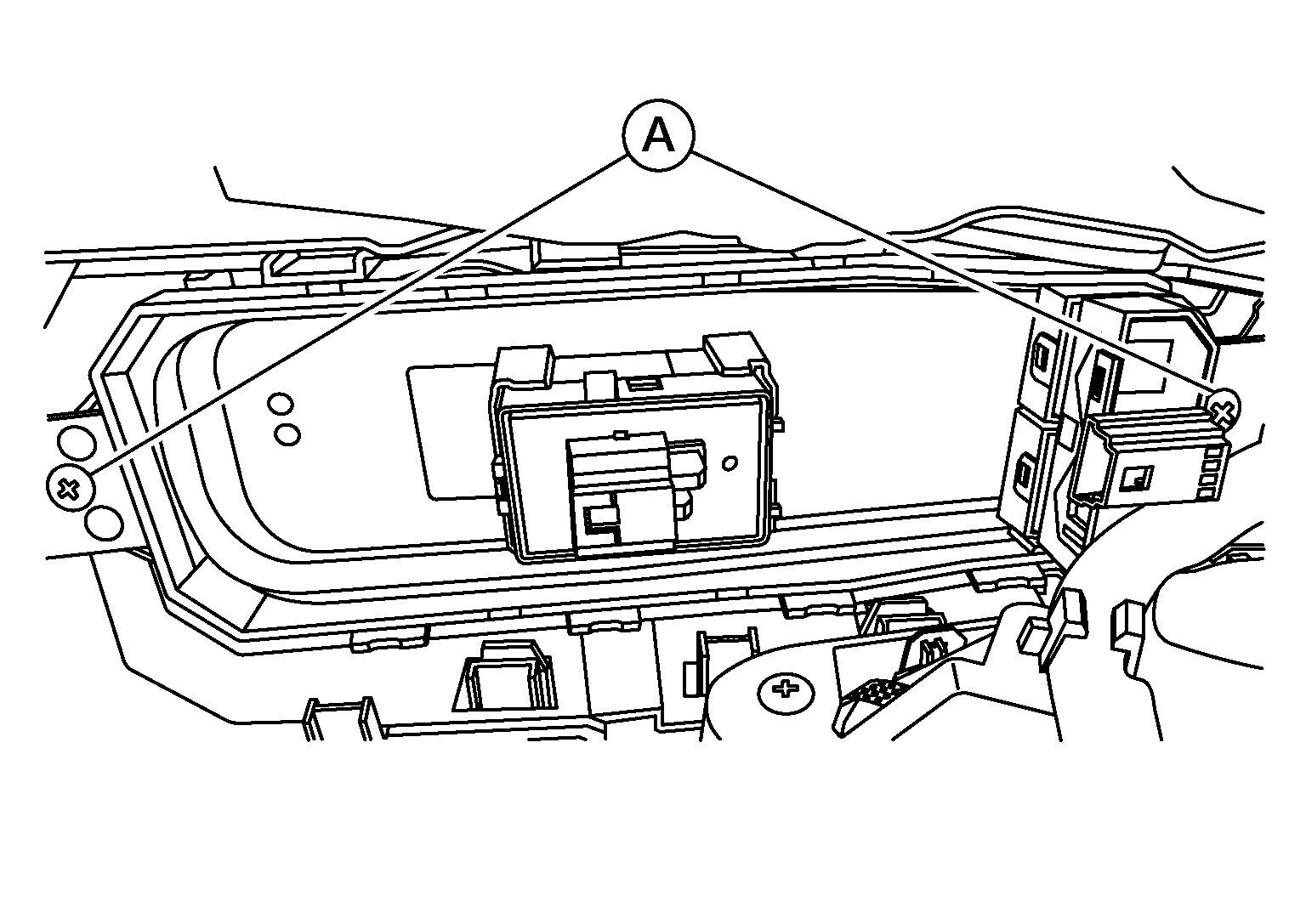

Remove screws (A) and separate switch from front door finisher.

Courtesy of NISSAN

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the power window switch RH is removed or replaced, CHECK ANTI-PINCH FUNCTION. Refer to Description .
