Exploded View

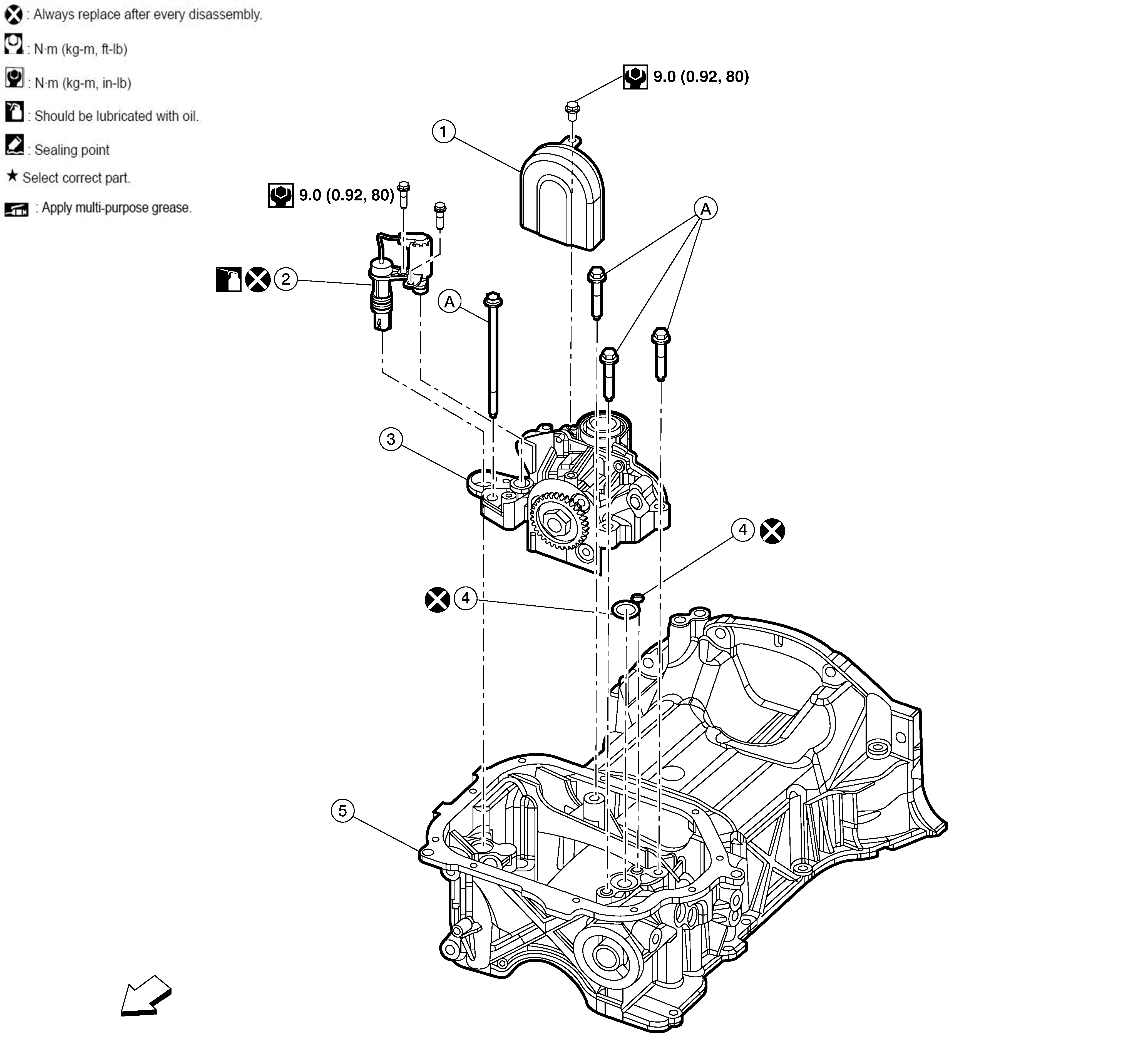

Fig 1: Oil Pump With Torque Specifications
GNSDB45629Courtesy of NISSAN
1. Oil pump cover 2. Engine oil pressure control solenoid valve 3. Oil pump assembly
4. O ring 5. Oil pan (upper) A. Refer to Removal and Installation .
SYMBOL Front
