System Description

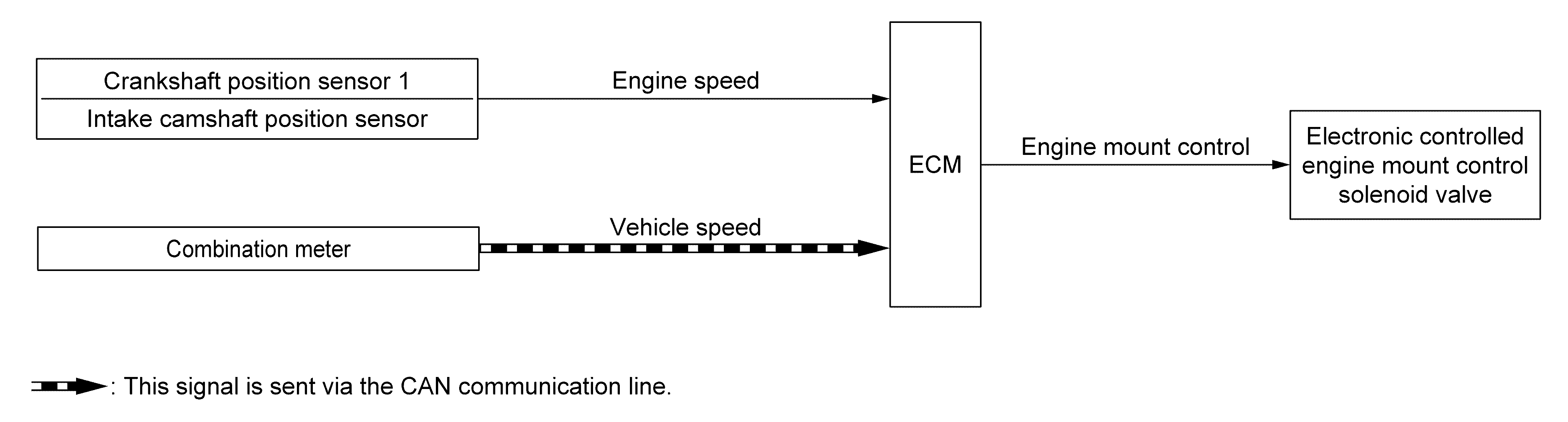

SYSTEM DIAGRAM

Courtesy of NISSAN

Component parts	Function
Crankshaft position sensor 1	Crankshaft Position Sensor 1
Intake camshaft position sensor	Intake Camshaft Position Sensor
Combination meter	ECM receives the vehicle speed signal via CAN communication.
ECM	ECM (With Barometric Pressure Sensor)
Engine mount control solenoid valve	Electronic Controlled Engine Mount

SYSTEM DESCRIPTION

The ECM controls the engine mount operation corresponding to the engine speed. The control system has a 2-step control [Soft/Hard]

Vehicle condition	Engine mount control
Engine speed: Below 950 RPM	Soft
Engine speed: Above 950 RPM	Hard

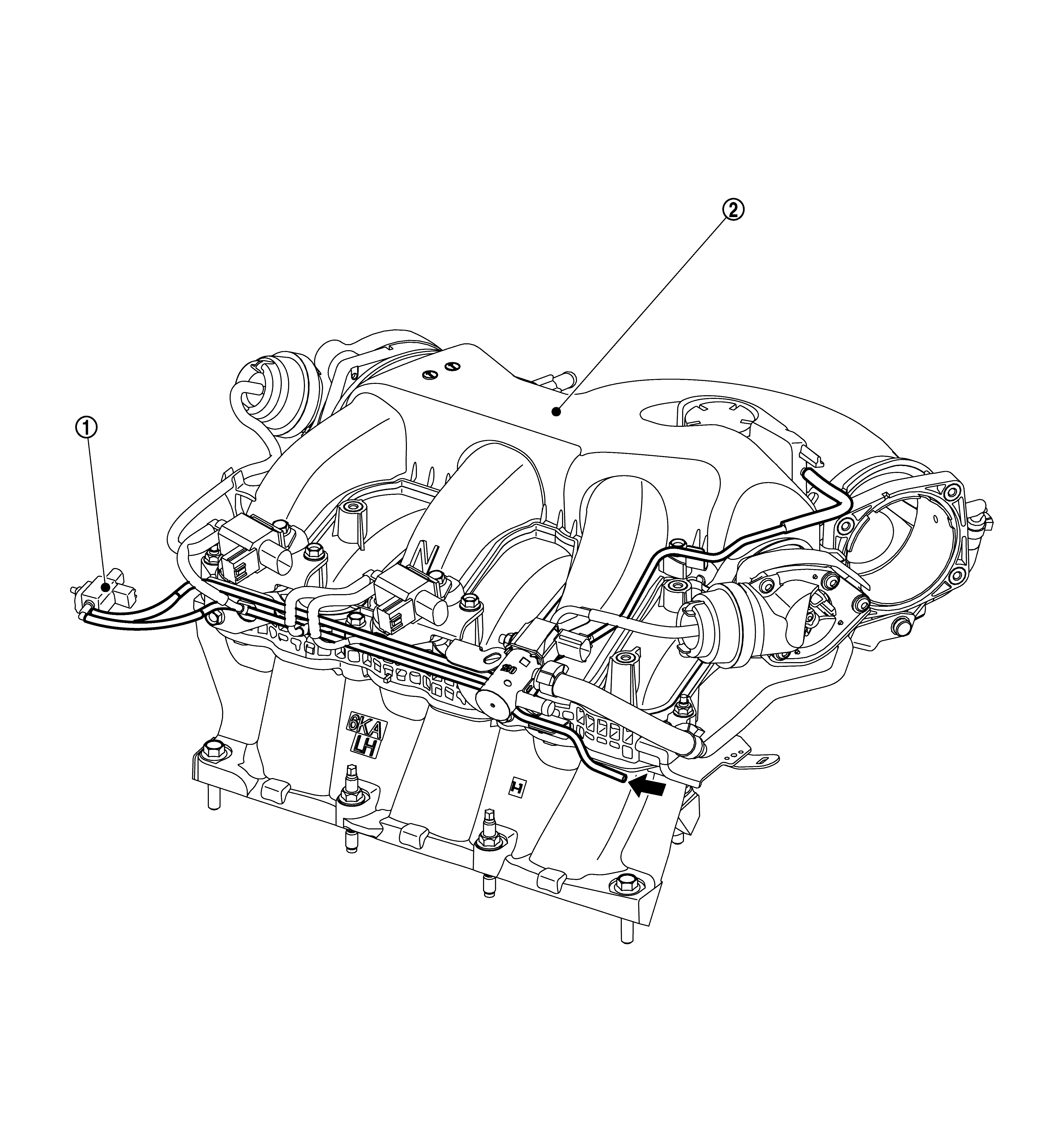

ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING

Courtesy of NISSAN

	Electronic controlled engine mount control solenoid valve		Intake manifold collector
	: From next figure

Courtesy of NISSAN

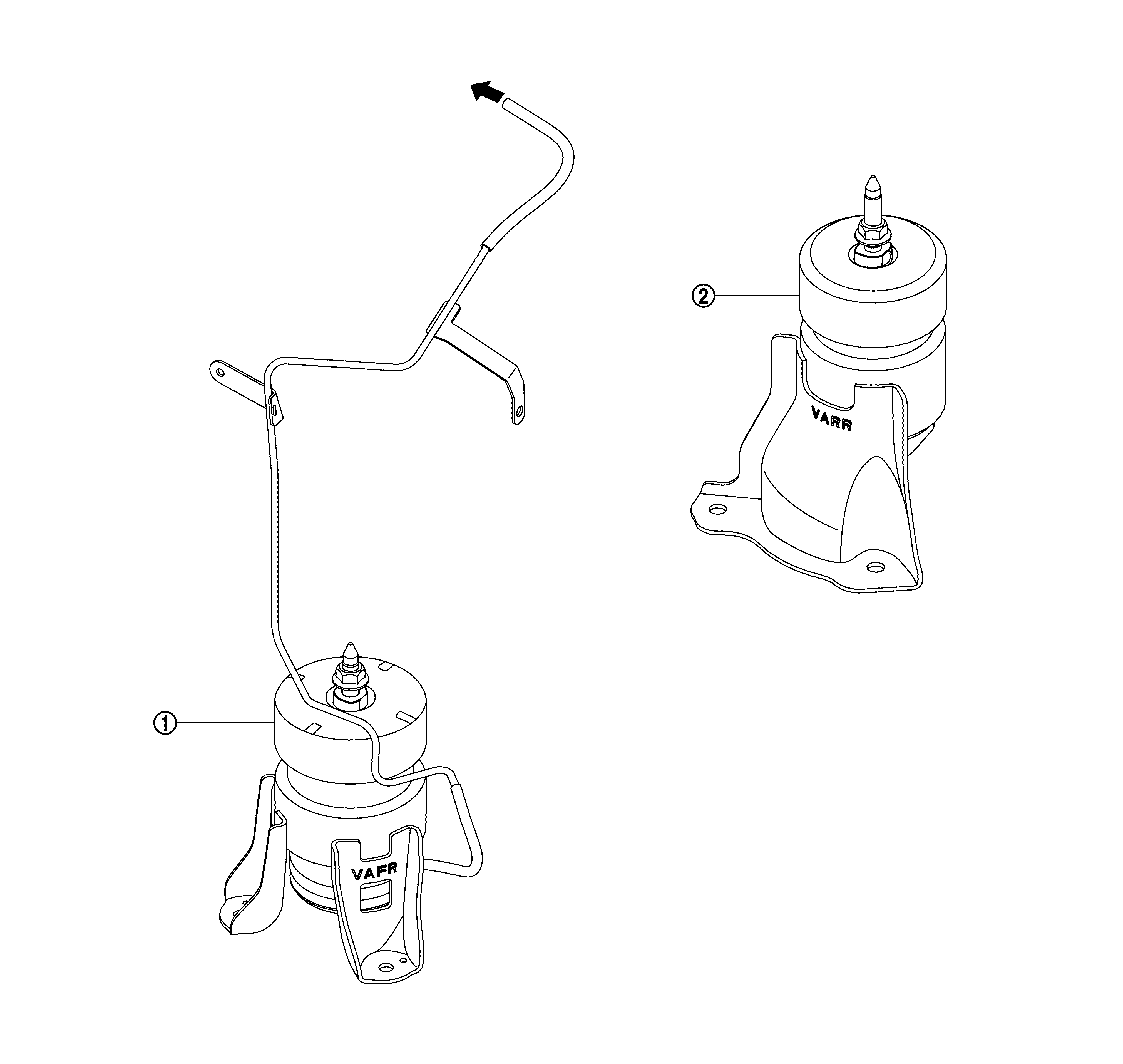

	Front electronic controlled engine mount		Rear electronic controlled engine mount
	: To previous figure

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose.
