Reference Value

NOTE: SYMBOL The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
Monitor item Condition Reference value in normal operation
Battery voltage Always 6 - 16 V
ACC voltage Ignition switch ACC 6 - 16 V
CONTROL MODULE MALF When chassis control module is normal Off
When chassis control module is malfunction On
Diag permission condition When not communication Not permission
During communication Permission
When communication is malfunction*1 Abnormal
When not used Not used
Chassis control malfunction display When chassis control warning is displayed On
When chassis control warning is not displayed Off
Vehicle Wheel Speed Vehicle stopped 0 km/h
Vehicle driving*2 Almost same reading as speedometer (Within ±10%)
Vehicle body speed Vehicle stopped 0 km/h
Vehicle driving*2 Almost same reading as speedometer (Within ±10%)
FR WHEEL SPEED Vehicle stopped 0 RPM
Vehicle driving*2 Increases according to vehicle speed
FL WHEEL SPEED Vehicle stopped 0 RPM
Vehicle driving*2 Increases according to vehicle speed
RR WHEEL SPEED Vehicle stopped 0 RPM
Vehicle driving*2 Increases according to vehicle speed
RL WHEEL SPEED Vehicle stopped 0 RPM
Vehicle driving*2 Increases according to vehicle speed
STEERING ANG SENSOR When vehicle driving straight 0±3.5 deg
When steering wheel is steered to RH by 90° Approx. +90 deg
When steering wheel is steered to LH by 90° Approx. -90 deg
DECEL G SENSOR Vehicle stopped Approx. 0 G
When during acceleration Positive value
When during deceleration Negative value
Decel G Vehicle stopped Approx. 0 G
When during acceleration Positive value
When during deceleration Negative value
SIDE G SENSOR Vehicle stopped Approx. 0 G
When right turn Negative value
When left turn Positive value
YAW RATE SENSOR Vehicle stopped Approx. 0 deg/s
When right turn Negative value
When left turn Positive value
ACCELE PEDAL POSITION When accelerator pedal is released 0%
When accelerator pedal is depressed 0 - 100%
PRESS SENSOR When brake pedal is not depressed Approx. 0 bar
When brake pedal is depressed 0 - 126 bar
Throttle control When electric throttle control actuator is normal Normal
When the engine torque command cannot be executed correctly Abnormal 1
When the engine torque command cannot be executed (transient state) Abnormal 2
When the engine torque command cannot be executed Abnormal 3
SHIFT POSITION Selector lever in any position Indicates selected electric shift selector position
Shift position (R) When shift position is R R
When shift position is other R Not R
STOP LAMP SW When brake pedal is not depressed Brake pedal not operation
When brake pedal is depressed Brake pedal operation 1
When brake pedal being depressed is confirmed Brake pedal operation 2
When stop lamp switch is malfunction*1 Abnormal
Brake pedal operation status Brake pedal operation unknown NOT
Brake pedal not operation NO OPE
Brake pedal operation OPE
ABS When ABS function is inactive INACT
When ABS function is active ACTIVE
ABS MALF When ABS function is malfunction On
When ABS function is not malfunction Off
EBD When EBD function is inactive INACT
When EBD function is active ACTIVE
TCS When TCS function is malfunction INACT
When TCS function is normal ACTIVE
TCS MALF When TCS function is malfunction On
When TCS function is not malfunction Off
VDC When VDC function is inactive INACT
When VDC function is active ACTIVE
VDC MALF When VDC function is malfunction On
When VDC function is not malfunction Off
VDC OFF SWITCH When VDC OFF function is ON On
When VDC OFF function is OFF Off
ICC brake active status When brake function of ADAS system is permitted PERMIT
When brake function of ADAS system is not permitted NO PER
When ADAS system is malfunction*1 Abnormal
Yaw rate (ADAS) When yaw function of ADAS system is brake fully operational Braking fully operational
When yaw function of ADAS system is impossible to execute request Impossible to execute request
When ADAS system is malfunction*1 Abnormal
ProPILOT park - Displays but not used
Command BR torque (IEB) 1 - Displays but not used
Command BR torque (IEB) 2 - Displays but not used
Brake torque request When active ride control is active Change according to input of brake control
When active ride control is inactive 0 Nm
Command BR torque (CCS) - Displays but not used
Command BR torque (HPCM) - Displays but not used
Command BR torque (ADAS) 1 When no brake torque command from ADAS control unit 2 0 Nm
When brake torque command from ADAS control unit 2 Change according to brake command from ADAS control unit 2
Command BR torque (ADAS) 2 When no brake torque command from ADAS control unit 2 0 Nm
When brake torque command from ADAS control unit 2 Change according to brake command from ADAS control unit 2
Reg brake request (HPCM) - Displays but not used
Driver brake torque request - Displays but not used
CC/SL active status 1 - Displays but not used
Yaw control status - Displays but not used
Control status (VDC) 1 When VDC function is impossible Impossi
When VDC function is possible Possible
Control status (VDC) 2 When VDC function is impossible Impossi
When VDC function is possible Possible
Maintenance mode status When not used NOT
When Not requested No req
When requested request
When unavailable Unavail
Reg brake status (VDC) - Displays but not used
Engine control status 1 - Displays but not used
Engine control status 2 - Displays but not used
CC/SL active status 2 - Displays but not used
Brake active request (ADAS) 1 When VDC function is impossible Impossi
When VDC function is possible Possible
Brake active request (ADAS) 2 When not requested No Brake Request
When requested of other parking system 1
When requested of parking system 2
Brake active request (ADAS) 3 When not requested NO REQ
When requested REQ
Rear wheel steering status 1 - Displays but not used
Rear wheel steering status 2 - Displays but not used
ATC/ITC status 2 When normal status normal
When malfunction status fail
ATC/ITC status 3 When normal status normal
When malfunction status fail
ATC/ITC status 4 When normal status normal
When malfunction status fail
ATC/ITC status 5 When normal status normal
When malfunction status fail
ITC/ATC status (ENG control) 1 - Displays but not used
ITC/ATC status (ENG control) 2 - Displays but not used
ITC/ATC status (BR control) 1 - Displays but not used
ITC/ATC status (BR control) 2 - Displays but not used
IEB/AEB status 1 - Displays but not used
IEB/AEB status 2 - Displays but not used
ARC/IRC status 1 When normal status normal
When malfunction status fail
ARC/IRC status 2 When normal status normal
When malfunction status fail
Chassis control (ADAS) 1 When normal status normal
When malfunction status fail
Chassis control (ADAS) 2 When normal status normal
When malfunction status fail
ARC/IRC status 3 When normal status normal
When malfunction status fail
ARC/IRC status 4 When normal status normal
When malfunction status fail
Parking brake operation status When electric parking brake system is release Release
When electric parking brake system is apply Apply
When electric parking brake function is malfunction*1 Abnormal
Stop hold (VDC) When stop hold status is release Release
When stop hold status is active Hold
When stop hold status is impossible Impossible
FR wheel speed pulse (stop hold) Vehicle stopped 0
Vehicle driving*2 Increases according to vehicle speed
FL wheel speed pulse (stop hold) Vehicle stopped 0
Vehicle driving*2 Increases according to vehicle speed
RR wheel speed pulse (stop hold) Vehicle stopped 0
Vehicle driving*2 Increases according to vehicle speed
RL wheel speed pulse (stop hold) Vehicle stopped 0
Vehicle driving*2 Increases according to vehicle speed
ICC status When ADAS system is OFF Off
When ADAS system is operation Operation
When ADAS system is stop Stop
When ADAS system is wait Wait
When ADAS system is suspended Suspend
When ADAS system is brake mode Brake mode
When ADAS system is regulation Regulation
When ADAS system is driver override Driver override
When ADAS system is malfunction Malfunction
ABH warning display request When automatic brake hold warning is not displayed No request
When automatic brake hold warning is displayed Request
ABH select status When automatic brake hold function is OFF mode OFF mode
When automatic brake hold function is auto mode AUTO mode
ABH status 1 When automatic brake hold function is inactive (Immediately before confirmation of abnormality) Inactive
When automatic brake hold function is active (Immediately before confirmation of abnormality) Active
ABH status 2 When automatic brake hold function is inactive (Current) Inactive
When automatic brake hold function is active (Current) Active
Electric parking brake active request (automatic brake hold) When active request of electric parking brake system is not requested (automatic brake hold function) No request
When active of electric parking brake system is requested (automatic brake hold function) Request
ABH stop hold request 2 When stop hold of automatic brake hold function is not requested No request
When stop hold of automatic brake hold function is requested Request
ABH status 3 When stop hold not request from Pro PILOT (Immediately before confirmation of abnormality) No request
When stop hold request from Pro PILOT (Immediately before confirmation of abnormality) Request
ProPILOT stop hold status When stop hold not request from Pro PILOT (Current) No request
When stop hold request from Pro PILOT (Current) Request
EPB active request (ProPILOT) When inactive request of electric parking brake system (ProPILOT) No request
When active request of electric parking brake system (ProPILOT) Request
ABH active request (ProPILOT) When inactive request of automatic brake hold function (ProPILOT) No request
When active request of automatic brake hold function (ProPILOT) Request
DRIVE MODE SELECTOR - Mode 0 - 30
User - Displays but not used
Drive Mode Selector - Displays but not used
Engine/TM setting - Mode 1 - 14
STRG SETTING - Mode 1 - 14
4WD setting - Displays but not used
ATC SETTING When active trace control is ON On
When active trace control is OFF Off
ICC setting - Displays but not used
Suspension setting - Displays but not used
I-KEY LINK - Displays but not used
LOG-IN PERMIS - Displays but not used
Drive mode select switch (UP) When drive mode select switch is not operation Not operation
When drive mode select switch is operation (Up) Operation
Drive mode select switch (DOWN) When drive mode select switch is not operation Not operation
When drive mode select switch is operation (Down) Operation

*1: It may be displayed when initializing communication.

*2: Check tire pressure under normal conditions.

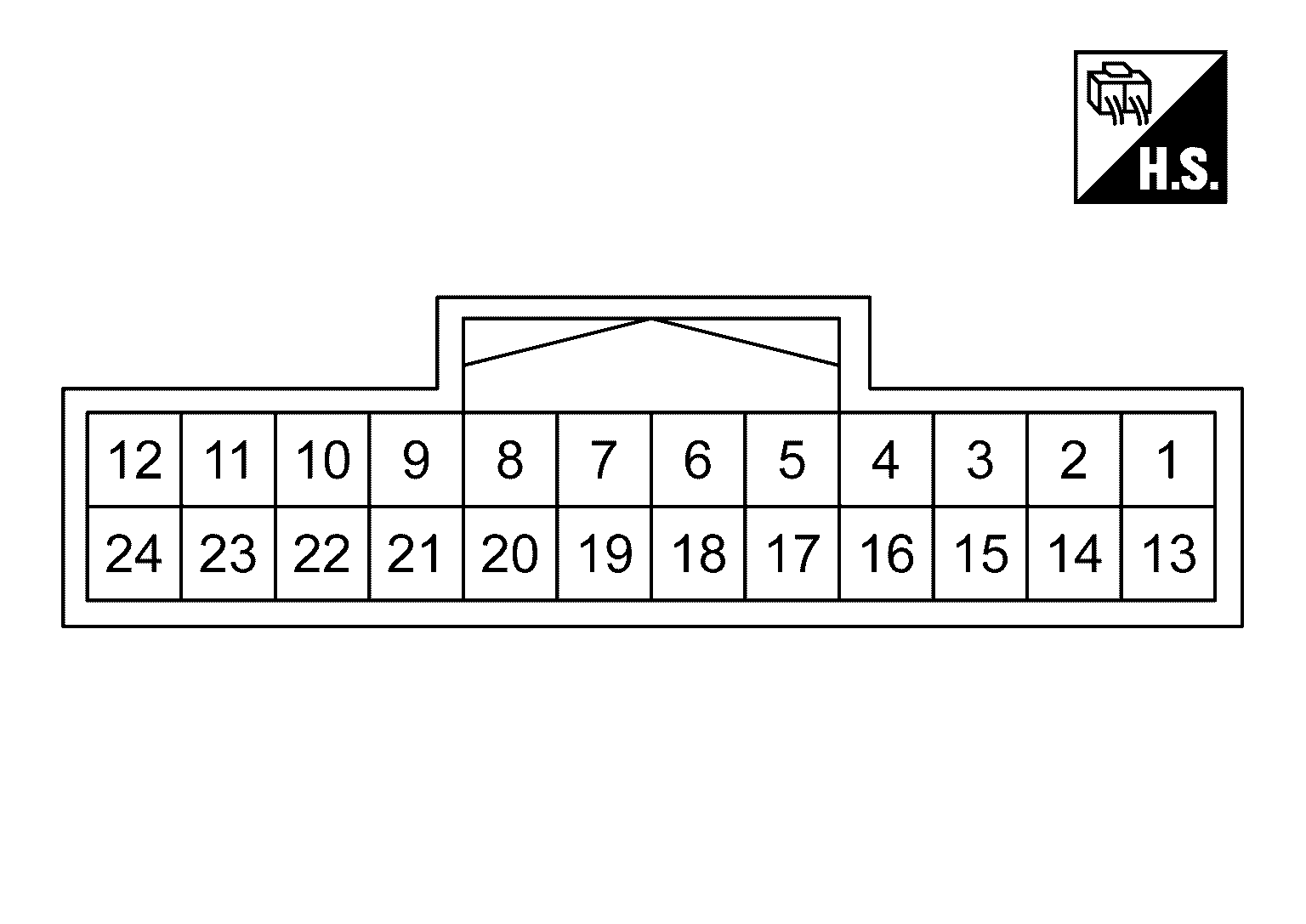

TERMINAL LAYOUT

GNSDB33978Courtesy of NISSAN

PHYSICAL VALUES

Terminal No. (Wire color) Description Condition Value
+ - Signal name Input/Output
3 (GR) Ground Chassis CAN communication 1-H - - - -
4 (R) Drivetrain CAN communication 1-L - - - -
5 (LA/G) ACC power supply Input Ignition switch ON 6 - 16 V
7 (V) Chassis CAN communication 2-L - - - -
8 (GR) Chassis CAN communication 3-H - - - -
9 (GR) Chassis CAN communication 4-H - - - -
13 (R) Battery power supply - Always 6 - 16 V
15 (B) Ground - Ignition switch ON - Approx. 0 V
16 (G) Chassis CAN communication 1-L - - - -
17 (GR) Drivetrain CAN communication 1-H - - - -
19 (GR) Chassis CAN communication-2-H - - - -
20 (G) Chassis CAN communication 3-L - - - -
21 (V) Chassis CAN communication 4-L - - - -
22 (V) Automatic brake hold switch indicator Input Ignition switch ON Automatic brake hold function ON Approx. 4 V
Automatic brake hold function OFF Approx. 12 V
24 (SB) Automatic brake hold switch Input Ignition switch ON Automatic brake hold switch is pushing Approx. 0 V
