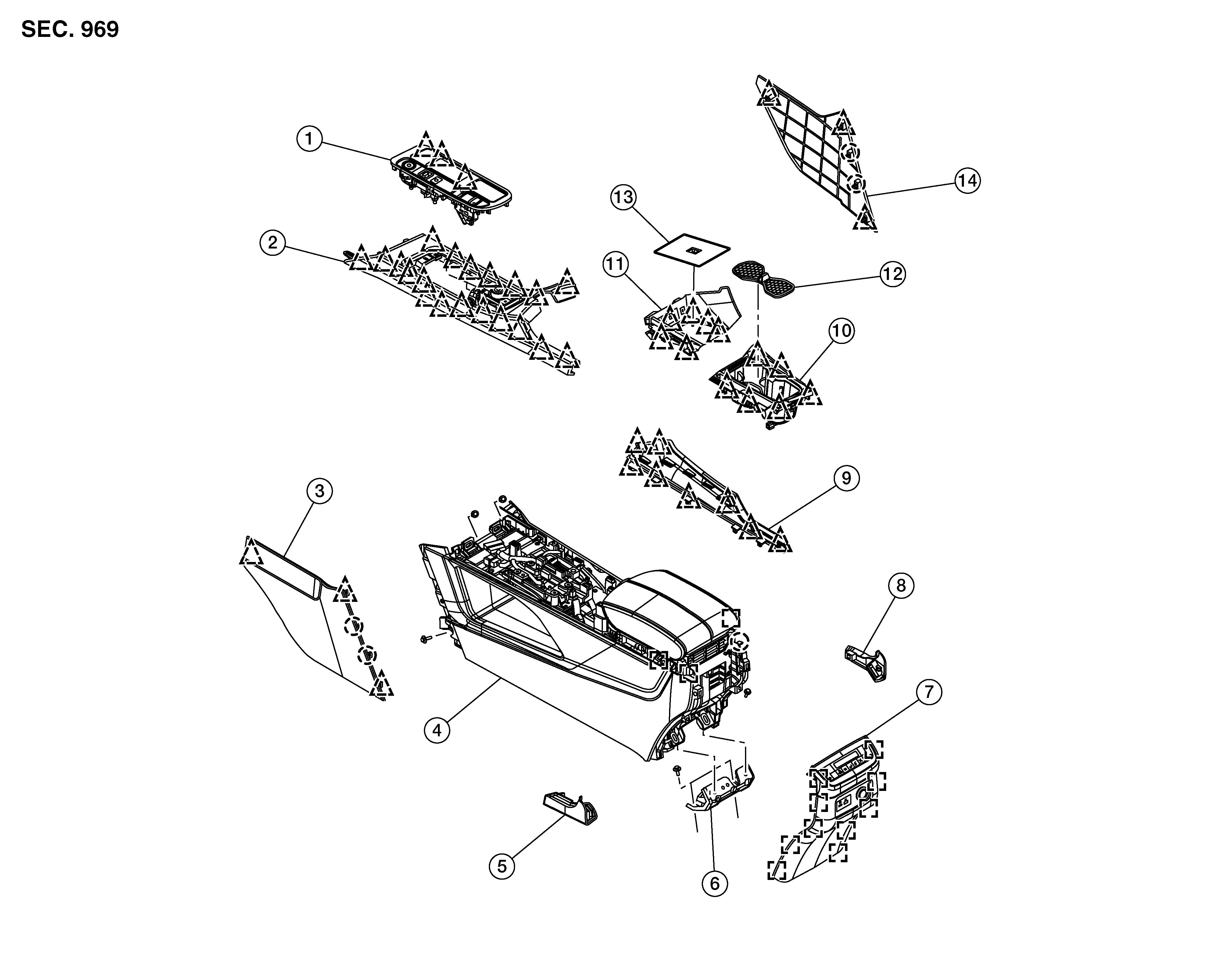

Exploded View
| 1. | Shift selector finisher | 2. | Console finisher assembly | 3. | Center console front finisher (LH) |
| 4. | Center console assembly | 5. | Console cover (LH) | 6. | Console bracket |
| 7. | Center console rear finisher | 8. | Console cover (RH) | 9. | Console panel (RH) |
| 10. | Cupholder assembly | 11. | Front console pocket | 12. | Cupholder mat |
| 13. | Wireless charger unit | 14. | Center console front finisher (RH) | Metal clip | |
| Clip | Pawl | ||||
