Commercial Service Tools

Tool name (TechMate No.)		Description

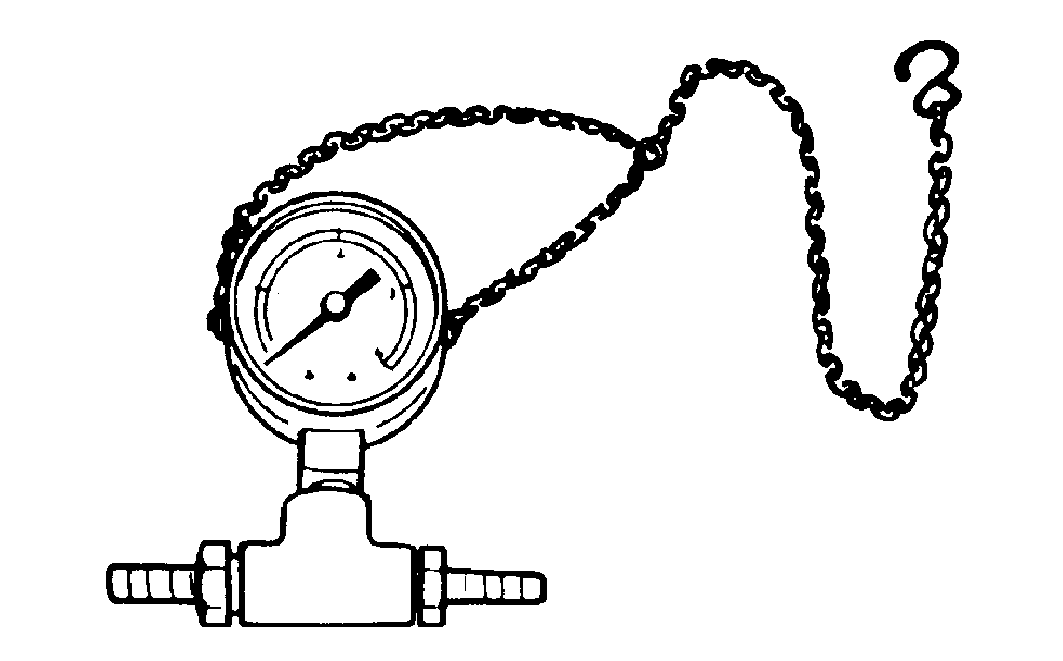

Pressure gauge	Courtesy of NISSAN	Checking fuel pressure NOTE: Use the pressure gauge which can measure 690 kpa (6.9 bar, 7.0 kg/cm, 100 psi) or more.

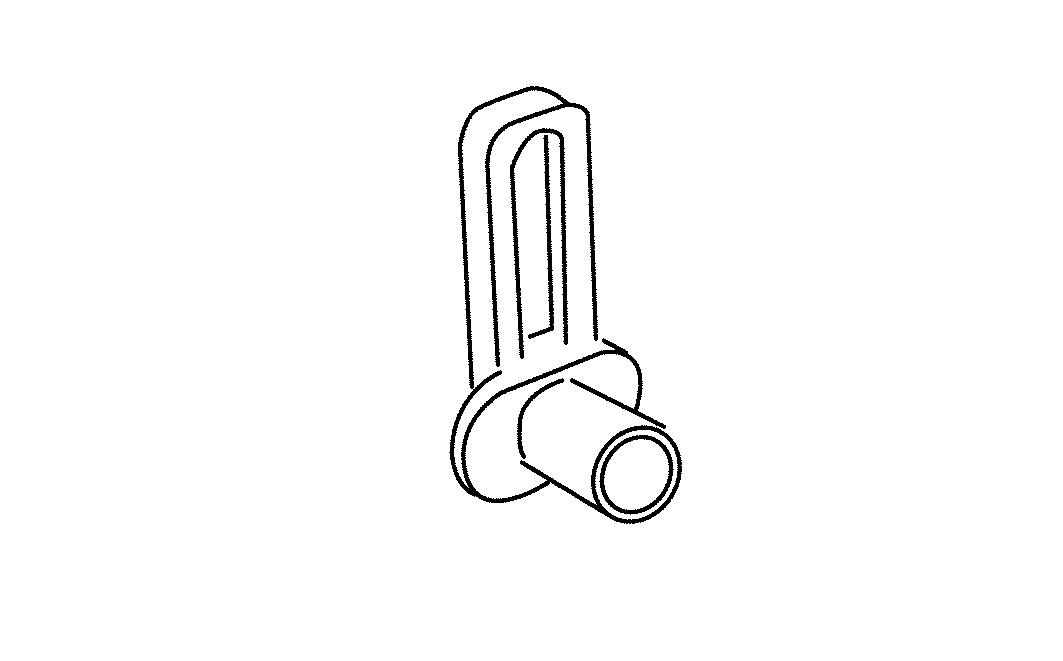

Quick connector release	Courtesy of NISSAN	Removing fuel tube quick connectors in engine room (Part No. 16441 6N210)

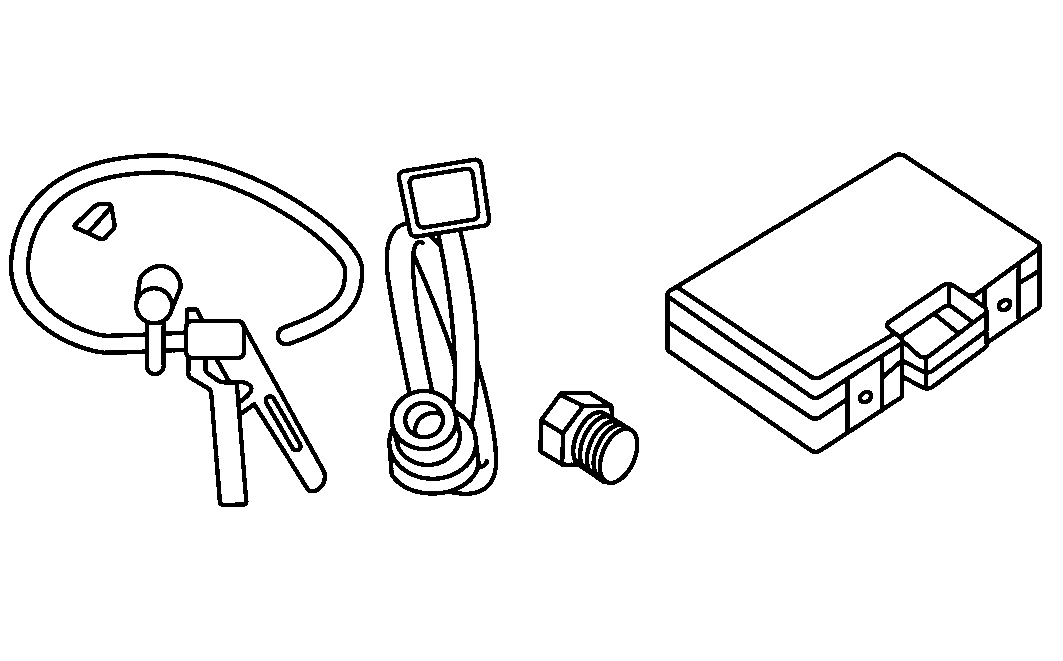

Leak detector i.e.: (J-41416)	Courtesy of NISSAN	Locates the EVAP leak
EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN	Applies positive pressure through EVAP service port

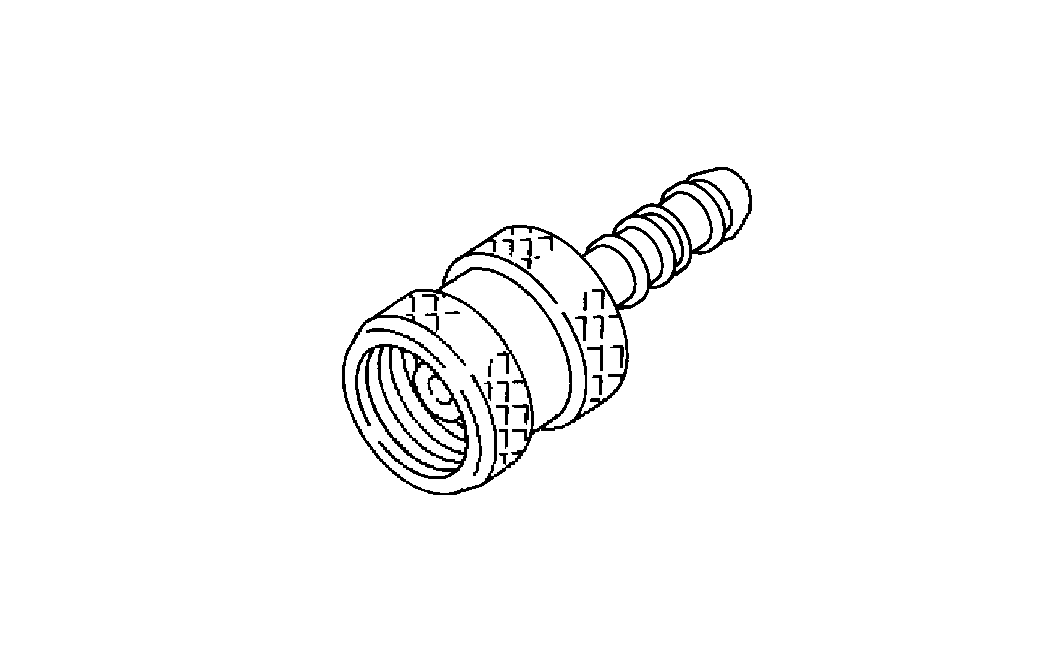

Fuel filler cap adapter i.e.: (J-42909)	Courtesy of NISSAN	Checks fuel tank vacuum relief valve opening pressure
