Switch Name and Function
SWITCHES AND INDICATORS

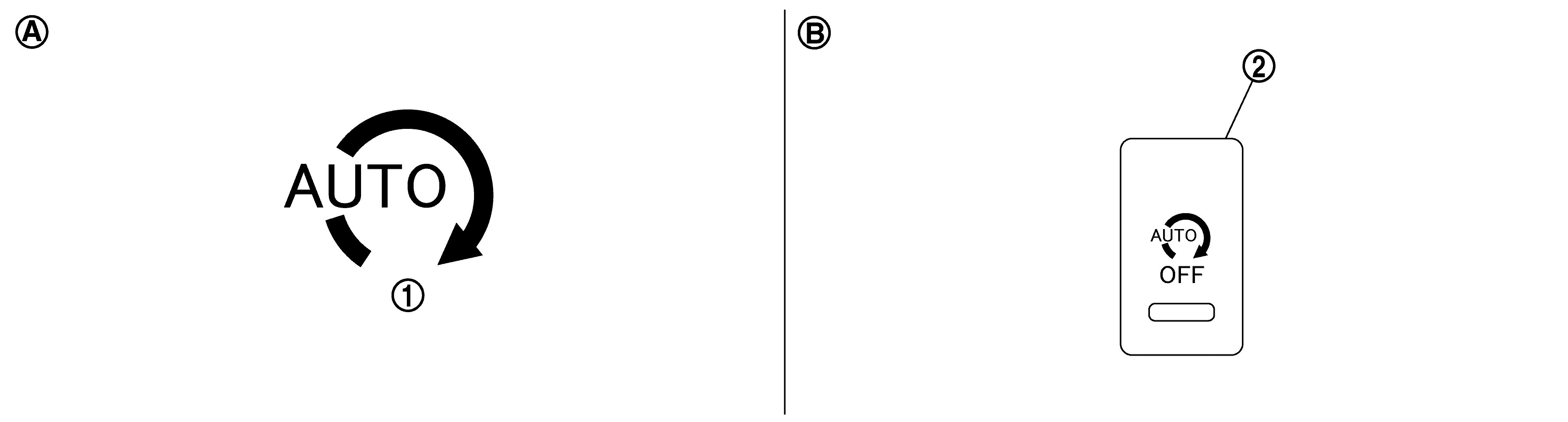

| 1. | Stop/start indicator | 2. | Stop/start OFF switch |
| A. | On the information display | B. | Lower instrument panel (driver side) |
SYSTEM CONTROL CONDITION DISPLAY
Stop/start Indicator Lamp Status
| System condition | Condition | Stop/start indicator lamp | Warning chime |
|---|---|---|---|
| Operate | Normal | Illuminate | - |
| Hood open* | High speed blinking | Sound | |

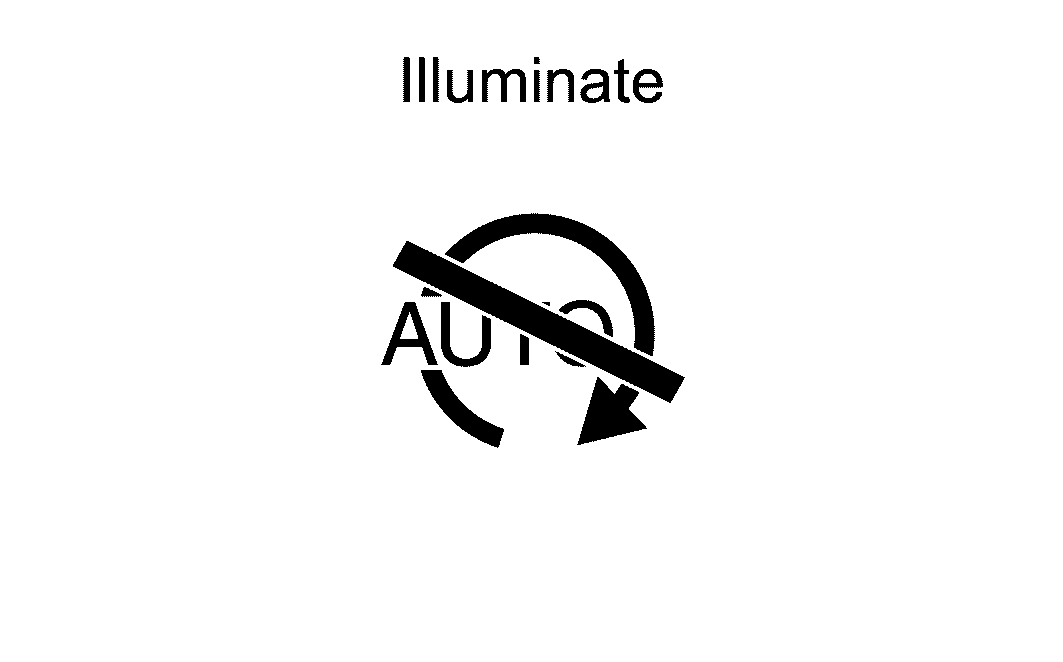

| Normal operation: Stop/Start system inhibited state | System conditions excluded failure are not satisfied. (Battery state of charge, A/C steering operation, driver's seat belt is unbuckled etc.) | Illuminate | - |
| Fail-Safe | Starter motor operation counter: too much | Slow speed blinking | - |
| Malfunction of stop/start system | Slow speed blinking | - |
*: Engine is stalled after alert for 1.5 seconds.
Stop/start Indicator Status (Information Display)
| System condition | Vehicle condition | Warning chime | Stop/start indicator | |
|---|---|---|---|---|

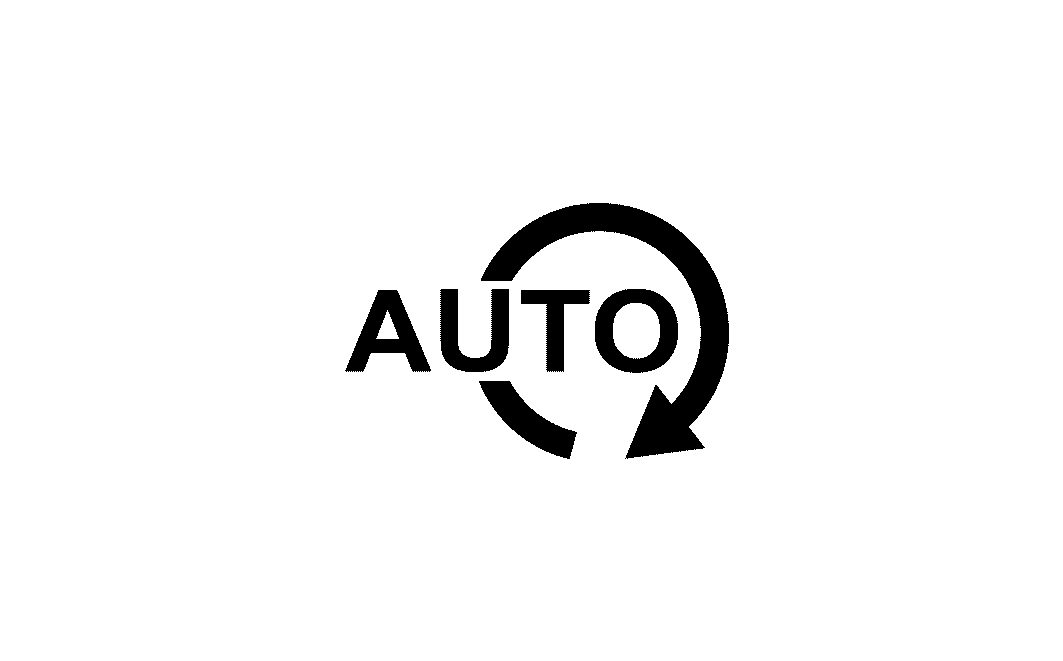

| Operate | Normal | - | ||

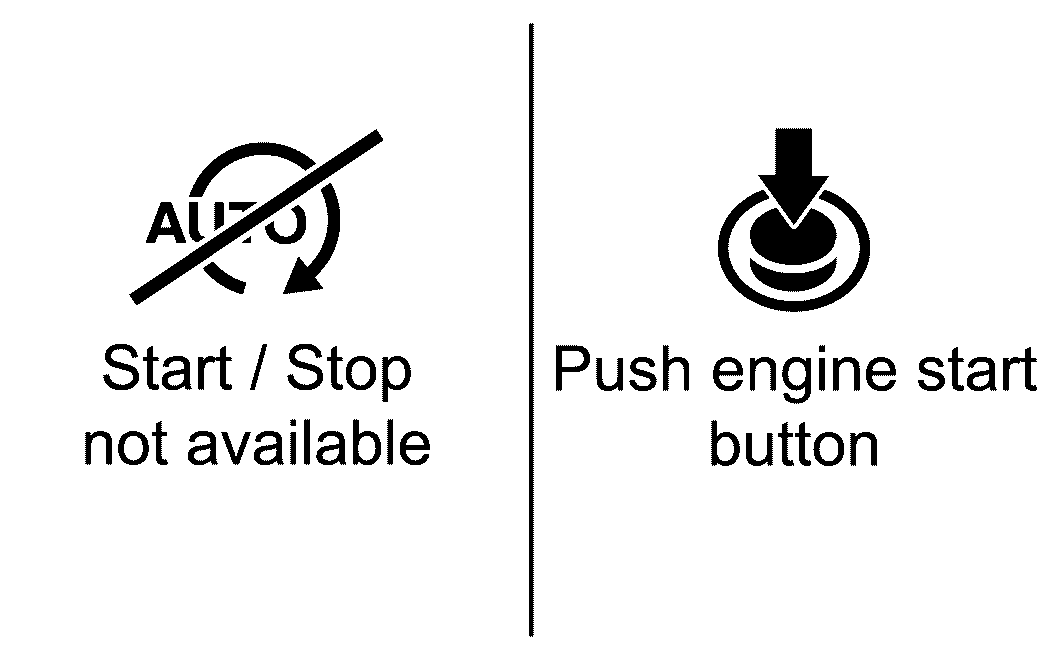

| The engine does not restart | With intelligent key system | Hood open*1 | Sound | |

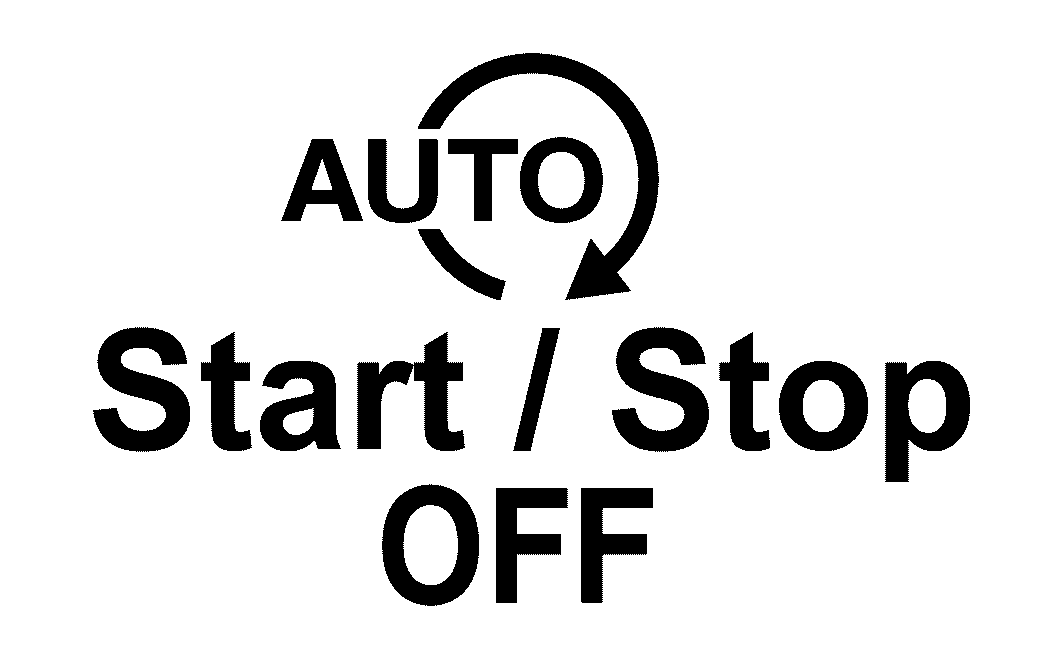

| The stop/start system is OFF | When the stop/start OFF switch is ON. *2 | - | ||

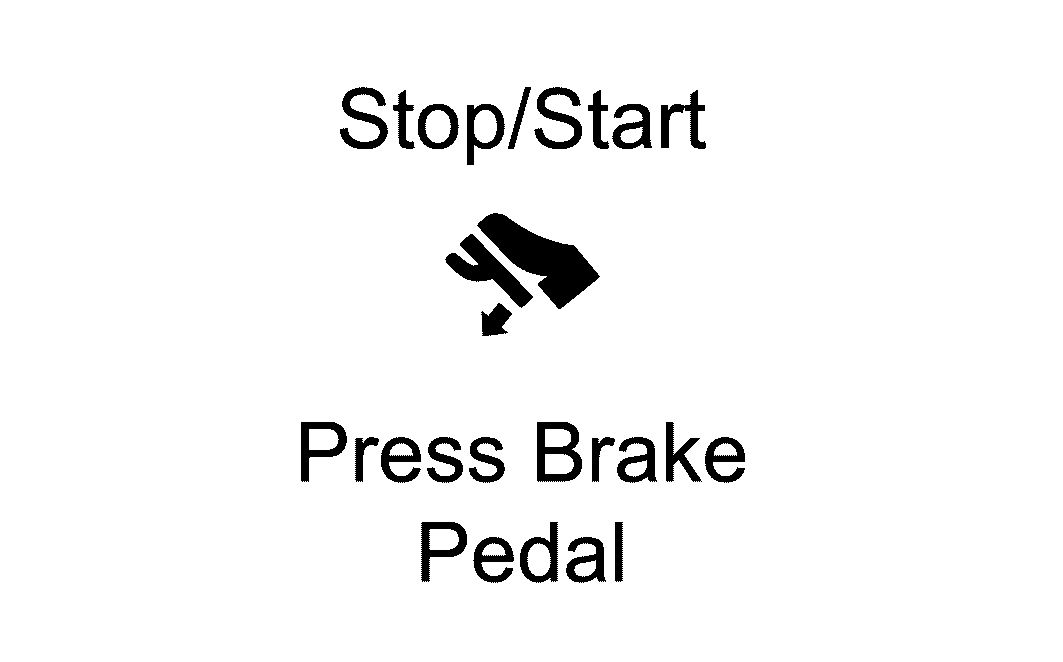

| When the brake pedal is not enough pressure. | - | |||

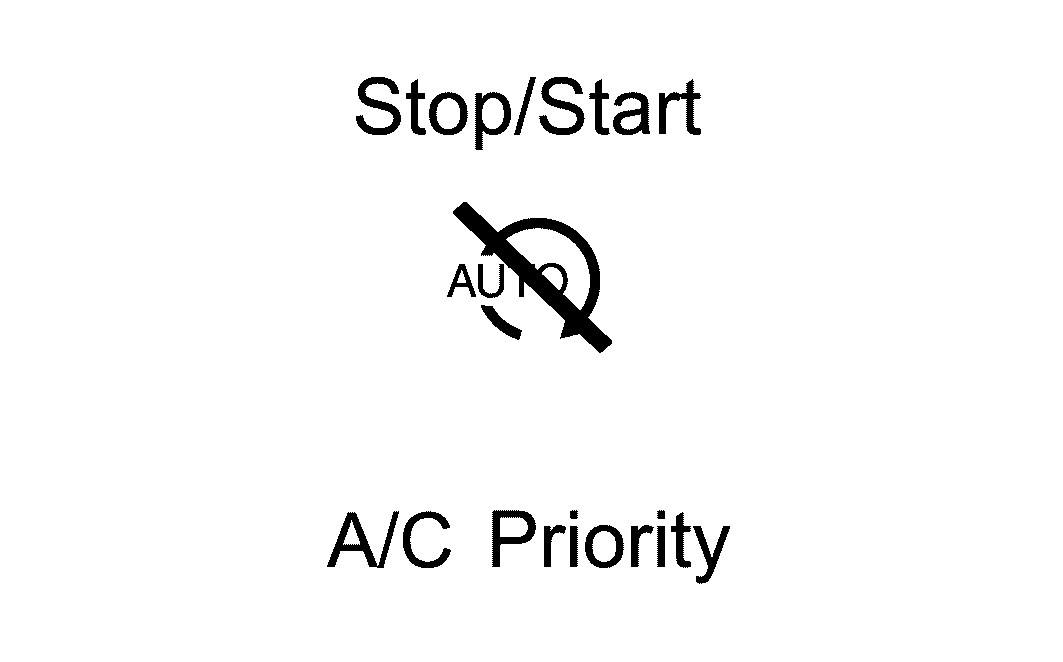

| When A/C is prioritized. | - | |||

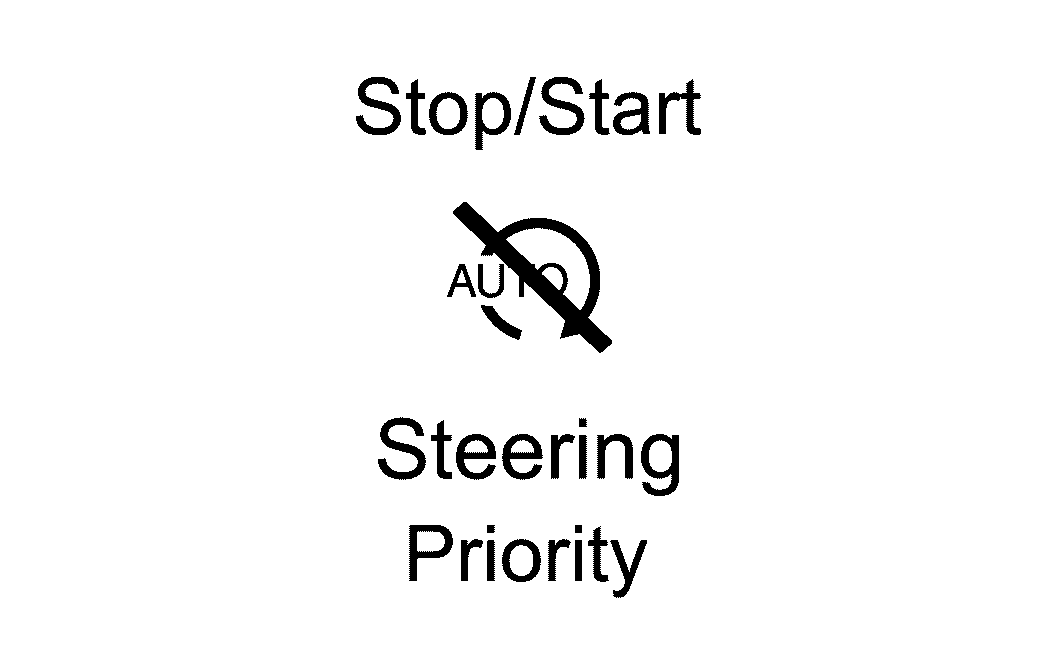

| When the steering wheel is being operated. | - | |||
| Others | - | - | ||

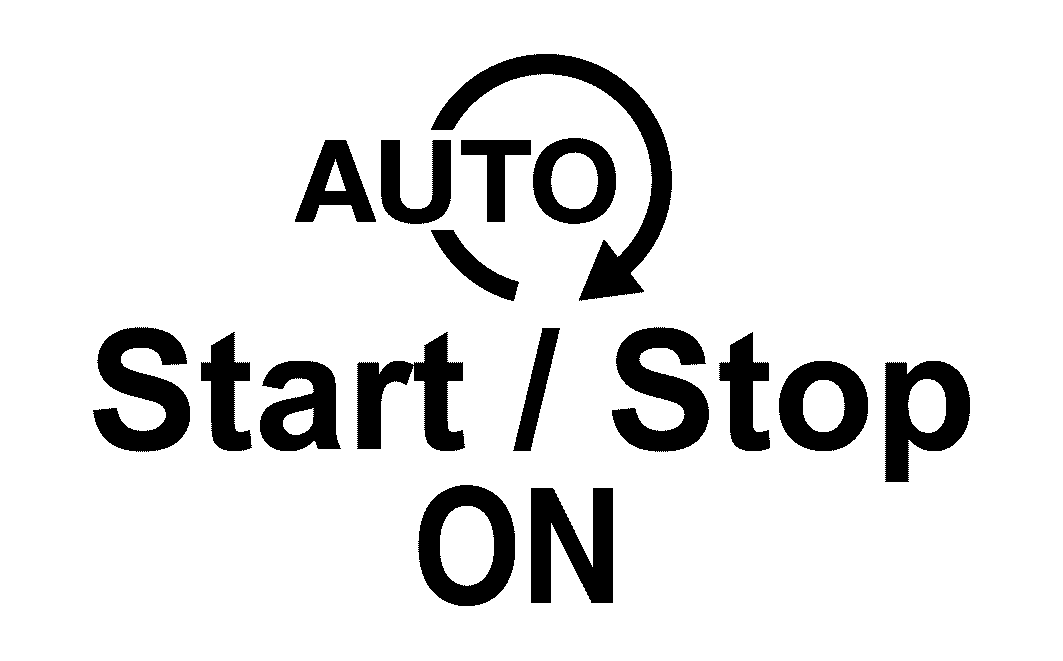

| The stop/start system is ON. | When the stop/start OFF switch is OFF. *3 | - | ||
| Fail-Safe | Starter motor operation counter: too much | - | ||

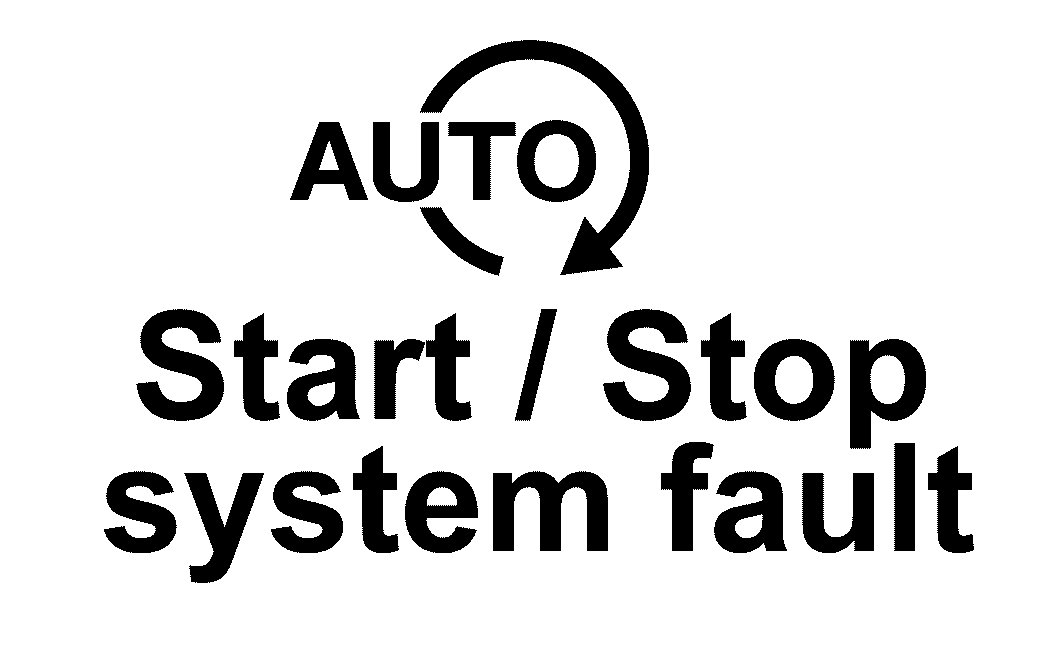

| Malfunction of stop/start system | - | |||
*1: Engine is stalled after alert for 1.5 seconds.
*2: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from OFF to ON.
*3: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from ON to OFF.
