System Description

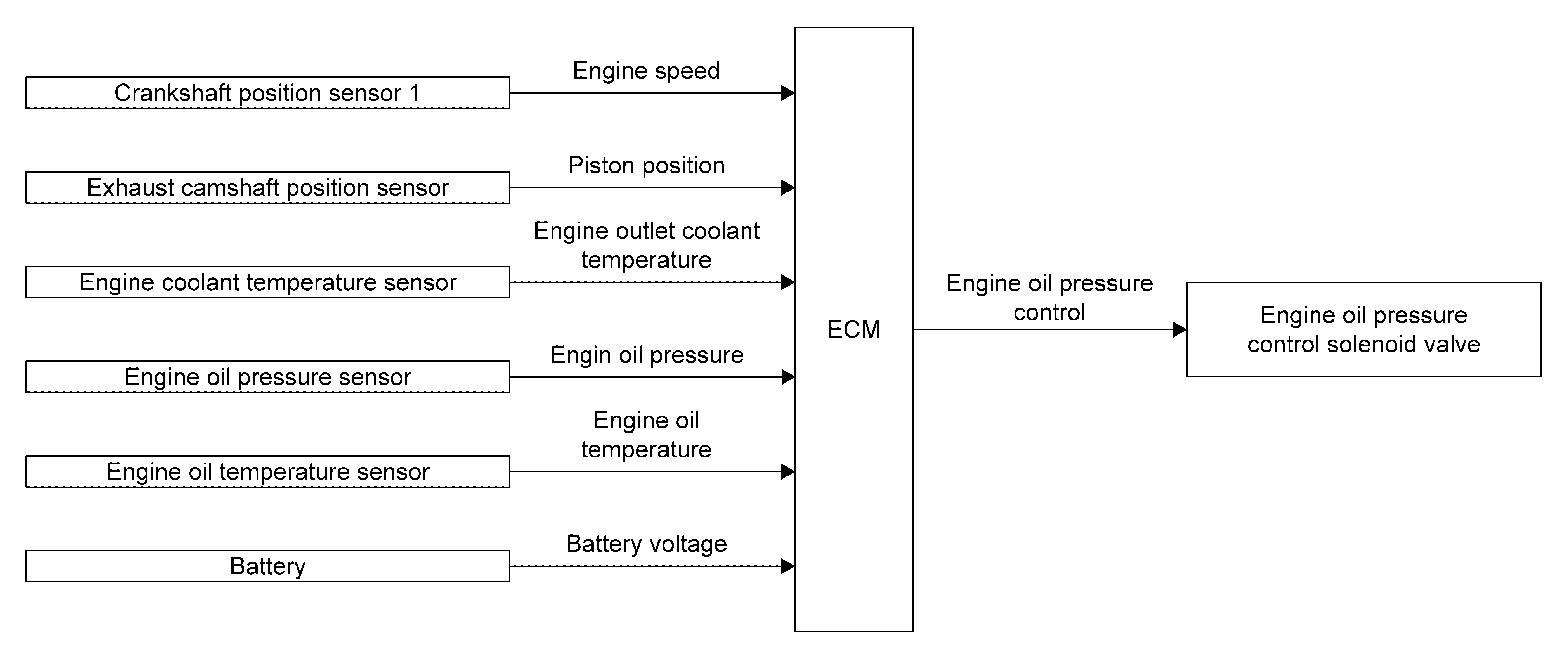

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Crankshaft position sensor 1 | Crankshaft Position Sensor 1 |
| Exhaust camshaft position sensor | Exhaust Camshaft Position Sensor |
| Engine coolant temperature sensor | Engine Coolant Temperature Sensor |
| Engine oil pressure sensor | Engine Oil Pressure Sensor |
| Engine oil temperature sensor | Engine Oil Temperature Sensor |
| Battery | ECM receives the battery voltage signal. |
| ECM | ECM (With Barometric Pressure Sensor) |
| Engine oil pressure control solenoid valve | Engine Oil Pressure Control Solenoid Valve |
SYSTEM DESCRIPTION
ECM performs the variable hydraulic control (low oil pressure control and high oil pressure control) based on signals from each sensor according to oil temperature and engine load. ECM activates the engine oil pressure control solenoid valve and switches to the low oil pressure control and high oil pressure control. ECM uses the low oil pressure control for 80-90% of the operating area to maintain low oil pressure and stops piston cooling jet (i.e. achievement of less than or equal to jet injection valve opening pressure).
High oil pressure control start condition
- High oil pressure control start condition
- High engine speed
- Coolant temperature is 60°C (140°F) or more under high engine load condition
Low oil pressure control start condition
- Coolant temperature is less than 60°C (140°F) under low engine speed condition
- Coolant temperature is 60°C (140°F) or more under low engine load and low engine speed conditions
