Exploded View

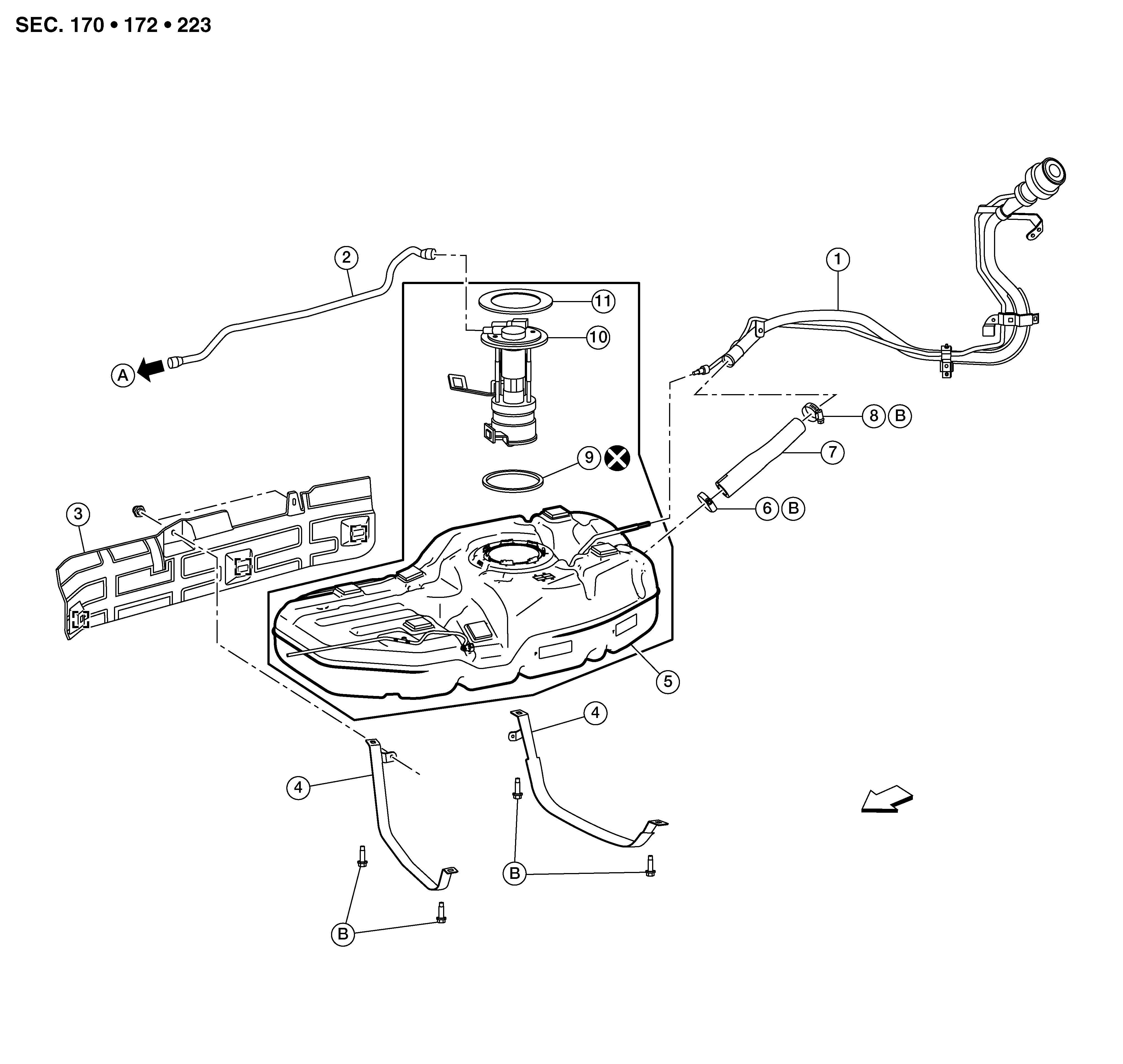

For USA and Canada
| 1. | Fuel filler tube | 2. | EVAP vent tube | 3. | Fuel tank protector |
| 4. | Fuel tank mounting straps | 5. | Fuel tank assembly | 6. | Clamp |
| 7. | Fuel filler hose | 8. | Clamp | 9. | O-ring |
| 10. | Fuel level sensor, fuel filer and fuel pump assembly | 11. | Lock ring | A. | To EVAP canister. Refer to Exploded View . |
| B. | Refer to Removal and Installation . | Front | |||

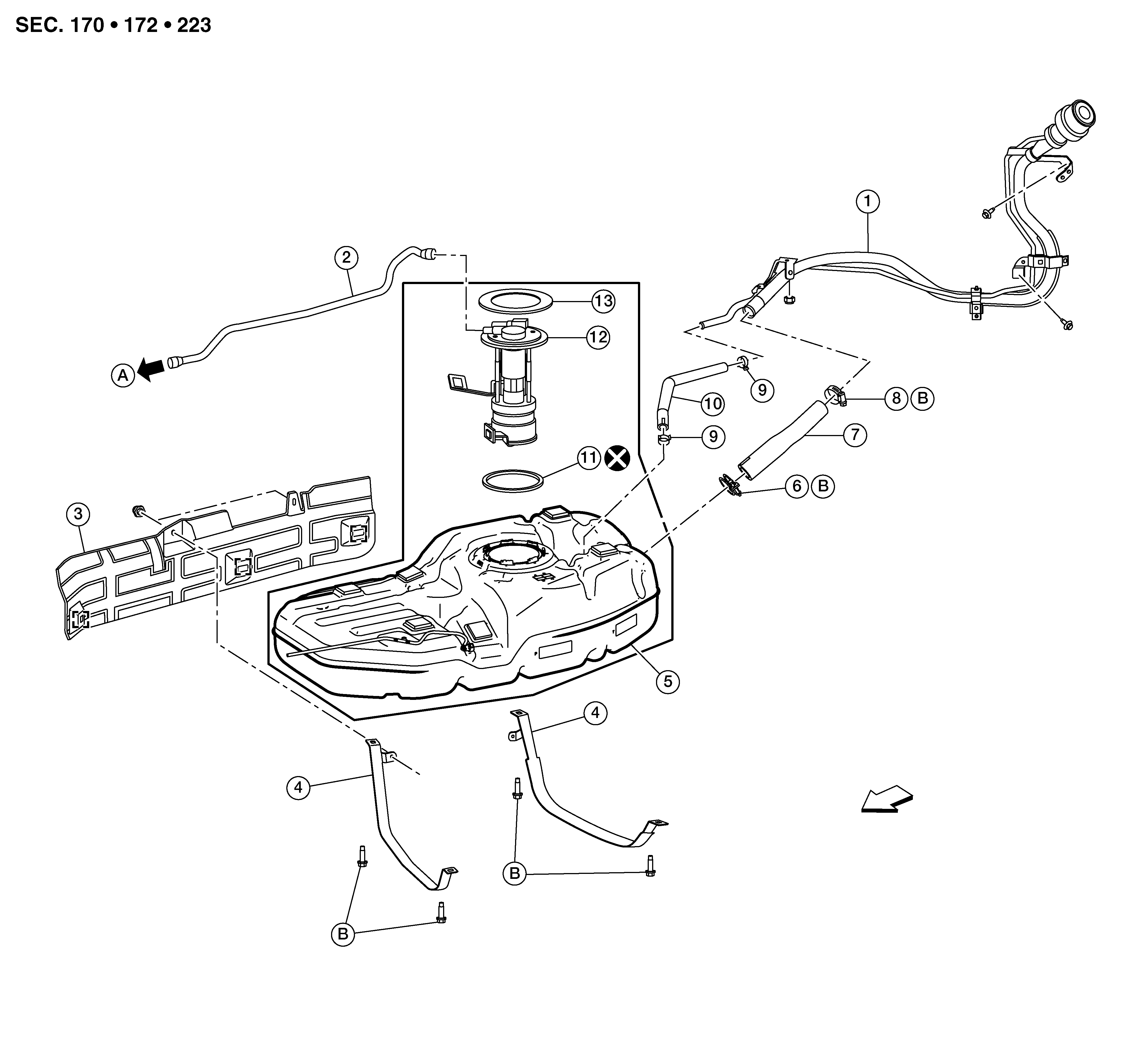

For Mexico
| 1. | Fuel filler tube | 2. | EVAP vent tube | 3. | Fuel tank protector |
| 4. | Fuel tank mounting straps | 5. | Fuel tank assembly | 6. | Clamp |
| 7. | Fuel filler hose | 8. | Clamp | 9. | Clamp |
| 10. | Vent hose | 11. | O-ring | 12. | Fuel level sensor, fuel filer and fuel pump assembly |
| 13. | Lock ring | A. | To EVAP canister. Refer to Exploded View . | B. | Refer to Removal and Installation . |
| Front | |||||
