Exploded View

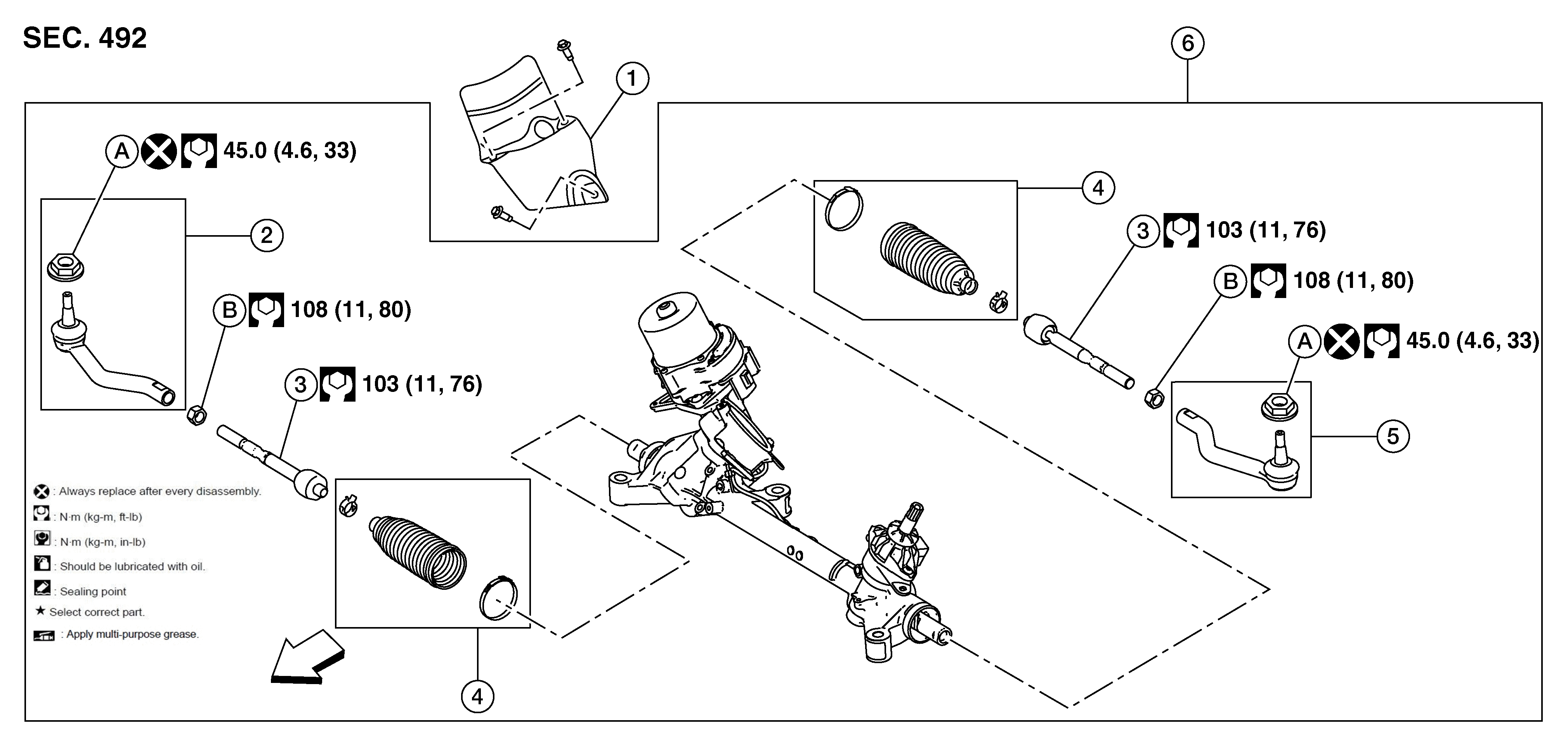

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB46185Courtesy of NISSAN
1. Heat shield 2. Outer socket (RH) 3. Inner socket
4. Boot 5. Outer socket (LH) 6. Steering gear and linkage assembly
A. Outer socket nut B. Inner socket lock nut SYMBOL Front
