Exploded View

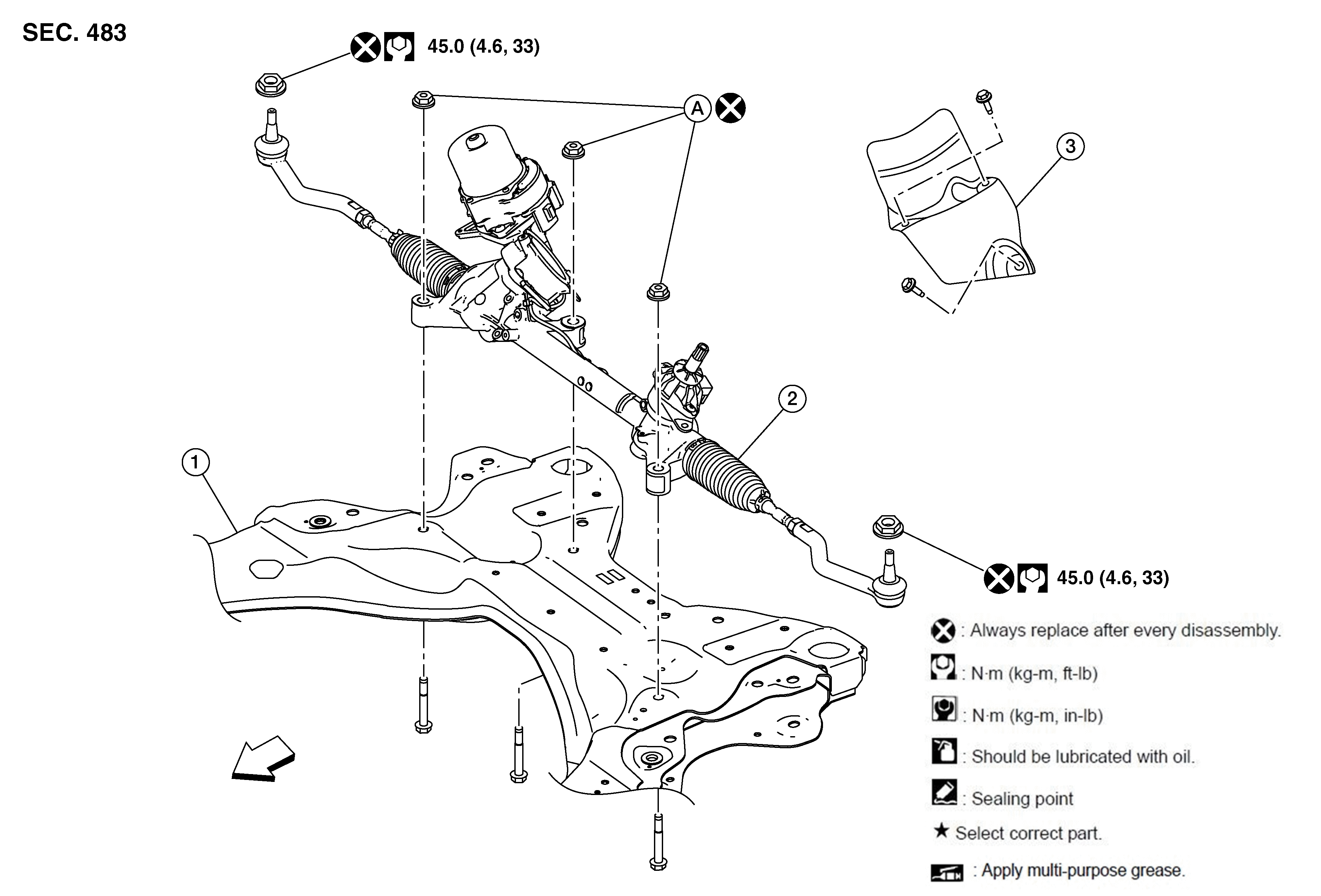

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB46157Courtesy of NISSAN
1. Front suspension member 2. Steering gear and linkage assembly 3. Heat shield
A. Refer to Installation . SYMBOL Front
